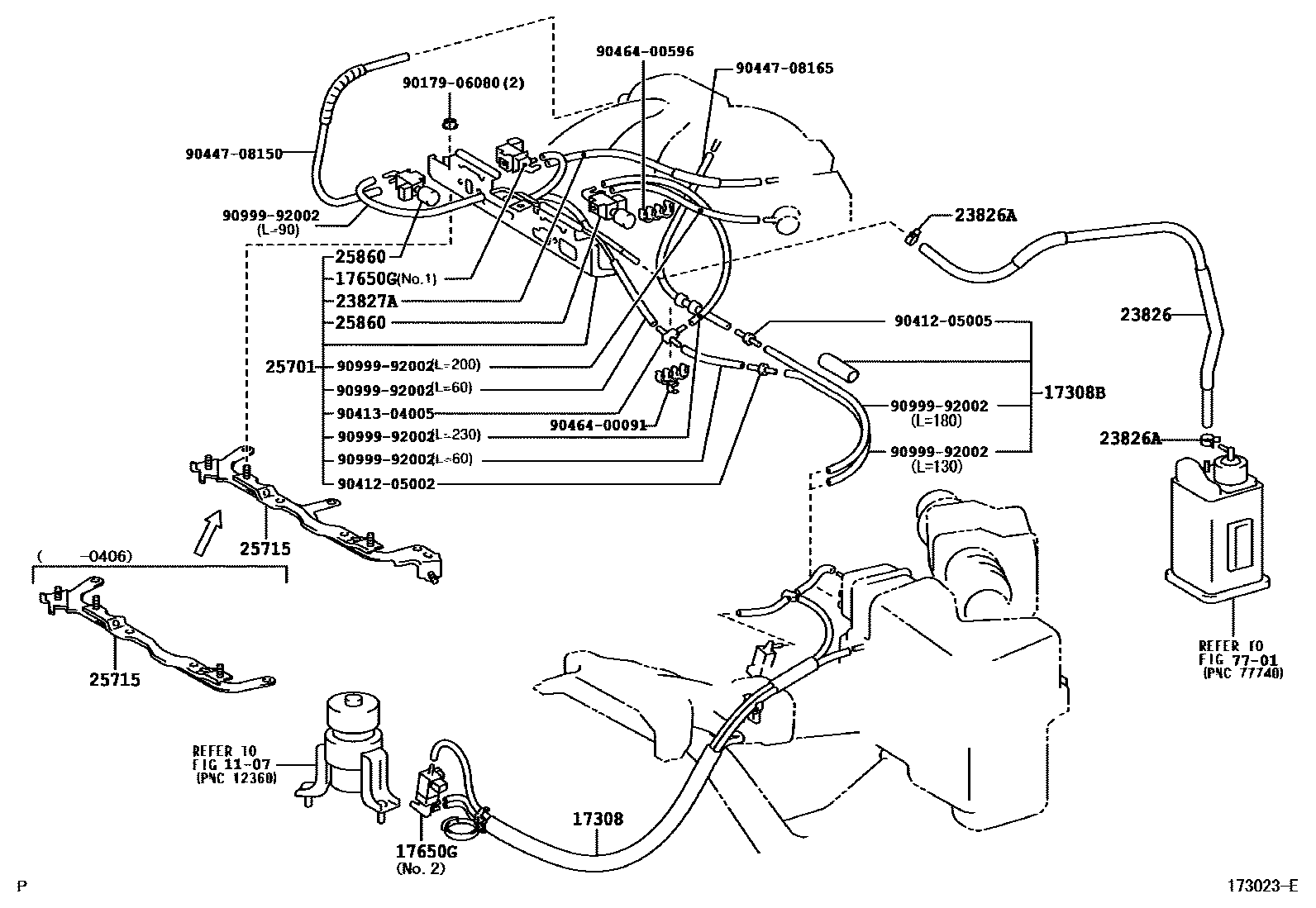

VACUUM PIPING

1107

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-20180i1MZFE..MCV30200107-200406

17308BHOSE SUB-ASSY, VACUUM

main17308-20170i1MZFE..MCV30200107-200406

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12204i1MZFE..MCV30200107-200406

main90910-12241i1MZFE..MCV30200107-200406

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-20090i1MZFE..MCV30200107-200111

sub23826-20091

main23826-20091i1MZFE..MCV30200111-200406

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i1MZFE..MCV30200107-200406

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-20090i1MZFE..MCV30200107-200406

25701VALVE SET, EMISSION CONTROL

main25701-20190i1MZFE..MCV30200107-200406

25715BRACKET, EMISSION CONTROL VALVE

main25715-20010i1MZFE..MCV30200107-200406

sub25715-20011

main25715-20011i1MZFE..MCV30200406

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-62010i1MZFE..MCV30200107-200406

7701

9017906080

main90179-06080

9041205002

main90412-05002

9041205005

main90412-05005

9041304005

main90413-04005

9044708150

main90447-08150

9044708165

main90447-08165

9046400091

main90464-00091

9046400596

main90464-00596

9099992002

main90999-92002

20 parts on this diagram · 1 diagram in section
