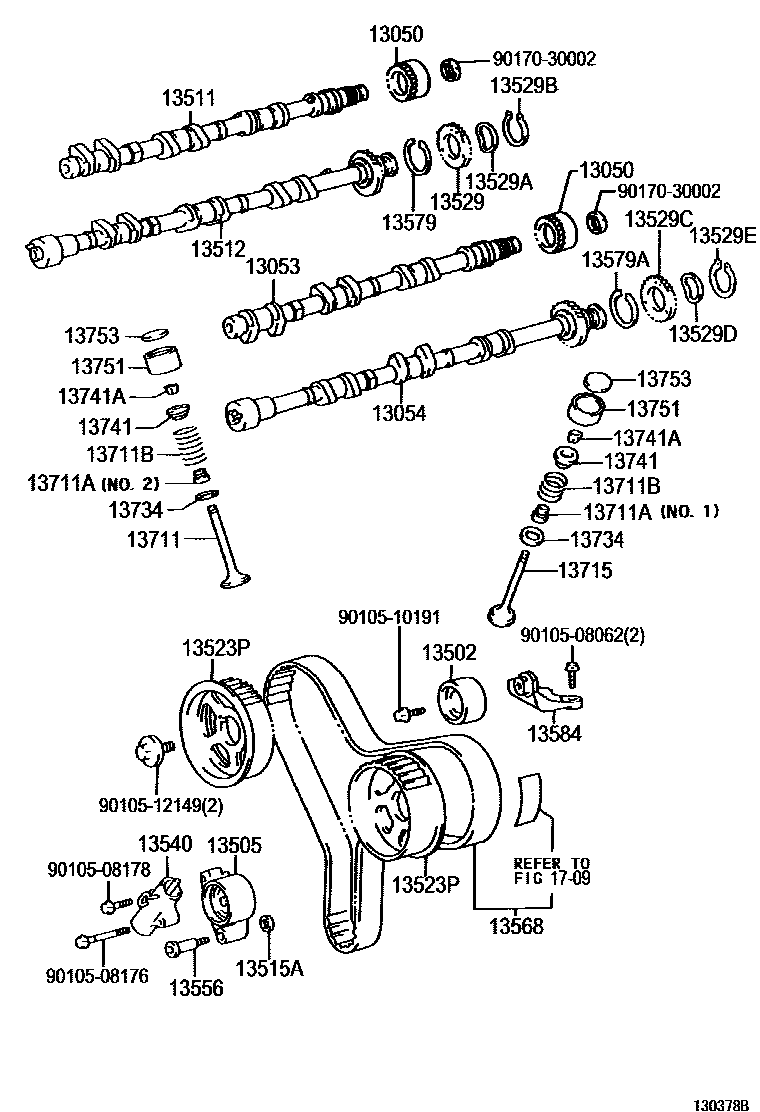

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
sub13054-20902
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13512CAMSHAFT, NO.2
sub13502-20902
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13540TENSIONER ASSY, CHAIN, NO.1
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13584BRACKET, TIMING BELT IDLER
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
1709
9010508062
main90105-08062
9010508176
main90105-08176
9010508178
main90105-08178
9010510191
main90105-10191
9010512149
main90105-12149
9017030002
main90170-30002
37 parts on this diagram · 1 diagram in section
