CRANKSHAFT & PISTON

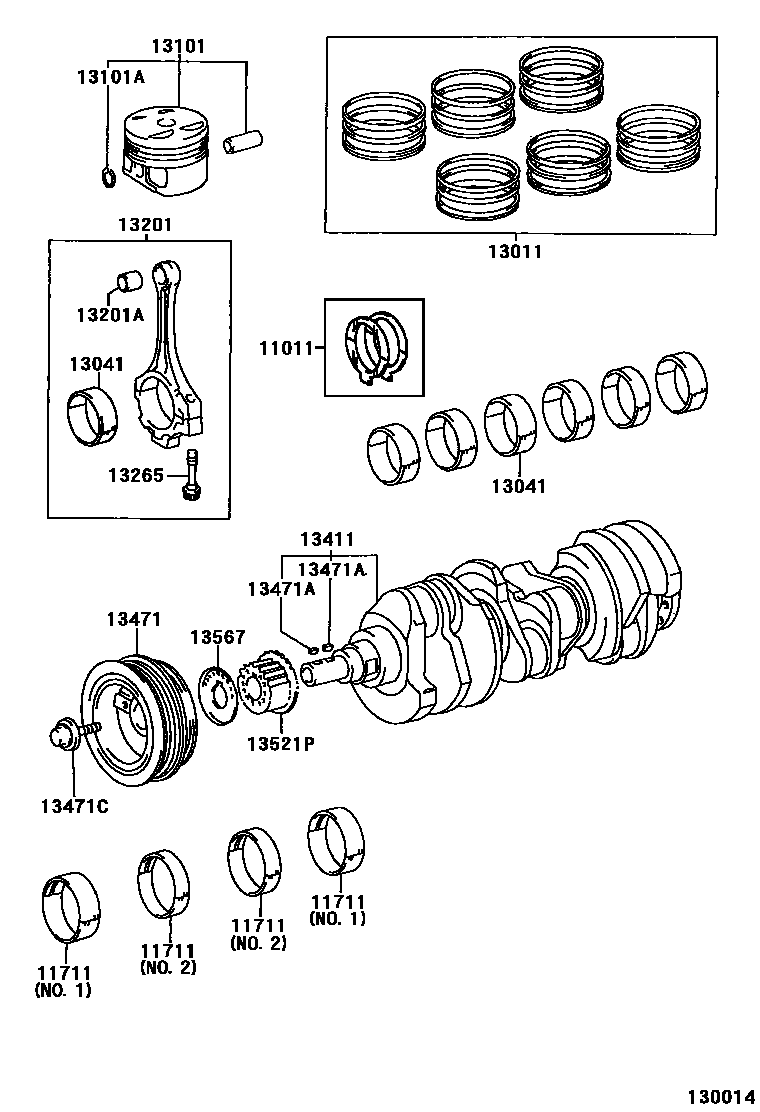

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-20020i200107-200406
11711BEARING, CRANKSHAFT
main11071-20020-01i200107-200412
sub11071-20021
main11071-20020-02i200107-200412
sub11071-20021
main11071-20020-03i200107-200412
sub11071-20021
main11071-20020-04i200107-200412
sub11071-20021
main11071-20020-05i200107-200412
sub11071-20021
main11071-20020-06i200107-200412
sub11071-20021
main11071-20020-07i200107-200412
sub11071-20021
main11071-20021-01i200412
main11071-20021-02i200412
main11071-20021-03i200412
main11071-20021-04i200412
main11071-20021-05i200412
main11071-20021-06i200412
main11071-20021-07i200412
main11701-20020-01i200107-200412
sub11701-20030
main11701-20020-02i200107-200412
sub11701-20030
main11701-20020-03i200107-200412
sub11701-20030
main11701-20020-04i200107-200412
sub11701-20030
main11701-20020-05i200107-200412
sub11701-20030
main11701-20020-06i200107-200412
sub11701-20030
main11701-20020-07i200107-200412
sub11701-20030
main11701-20030-01i200412
main11701-20030-02i200412
main11701-20030-03i200412
main11701-20030-04i200412
main11701-20030-05i200412
main11701-20030-06i200412
main11701-20030-07i200412
13011RING SET, PISTON
main13011-20022i200107-200207
sub13011-20023
main13011-20023i200207-200406
13041BEARING, CONNECTING ROD
main13041-20010-01i200107-200412
sub13041-20011
main13041-20010-02i200107-200412
sub13041-20011
main13041-20010-03i200107-200412
sub13041-20011
main13041-20010-04i200107-200412
sub13041-20011
main13041-20010-05i200406-200412
sub13041-20011
main13041-20011-01i200412
main13041-20011-02i200412
main13041-20011-03i200412
main13041-20011-04i200412
13101PISTON SUB-ASSY, W/PIN
main13101-20040i200107-200307
sub13101-20041
main13101-20041i200307-200406
main13301-20030i200107-200307
sub13301-20031
main13301-20031i200307-200406
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i200107-200406
13201ROD SUB-ASSY, CONNECTING
main13201-29015i200107-200206
sub13201-29155
main13201-29155i200206-200302
sub13201-29525
main13201-29165i200302-200309
sub13201-29525
main13201-29525i200309-200412
main13201-29525i200412-200603
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73119i200107-200406
13265BOLT, CONNECTING ROD
main13265-28010i200206-200406
sub13265-28020
main13265-50020i200107-200206
13411CRANKSHAFT
main13401-20030i200107-200406
13471PULLEY, CRANKSHAFT
main13408-0A010i200107-200406
main13408-20010i200107-200406
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i200107-200406
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i200107-200406
13521PPULLEY, CRANKSHAFT TIMING
main13521-20020i200107-200406
13567GUIDE, TIMING BELT, NO.2
main13567-62010i200107-200406

15 parts on this diagram · 1 diagram in section
