MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12316BRACKET, ENGINE MOUNTING, NO.2 RH
12327ASTAY, ENGINE MOUNTING, NO.2 RH
12360INSULATOR ASSY, ENGINE MOUNTING, FRONT
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12511BRACKET, ALTERNATOR, NO.1
12512ABRACKET, ALTERNATOR, NO.2
12514BAR, ALTERNATOR BELT ADJUSTING
12514ASLIDER, FAN BELT ADJUSTING
12515BOLT, ALTERNATOR THROUGH
1601
1603
1708
1903
9010508312
main90105-08312
9010510381
main90105-10381
9010510444
main90105-10444
9010510446
main90105-10446
9010510490
main90105-10490
9010512274
main90105-12274
9011908419
main90119-08419
9011908A12
main90119-08A12
9011910599
main90119-10599
9011910647
main90119-10647
9011910766
main90119-10766
9011910820
main90119-10820
9012610011
main90126-10011
9012610014
main90126-10014
9017908153
main90179-08153
9017910147
main90179-10147
9017910176
main90179-10176
9017910212
main90179-10212
9017912152
main90179-12152
9017914062
main90179-14062
91511B0845
main91511-B0845
9461211001
main94612-11001

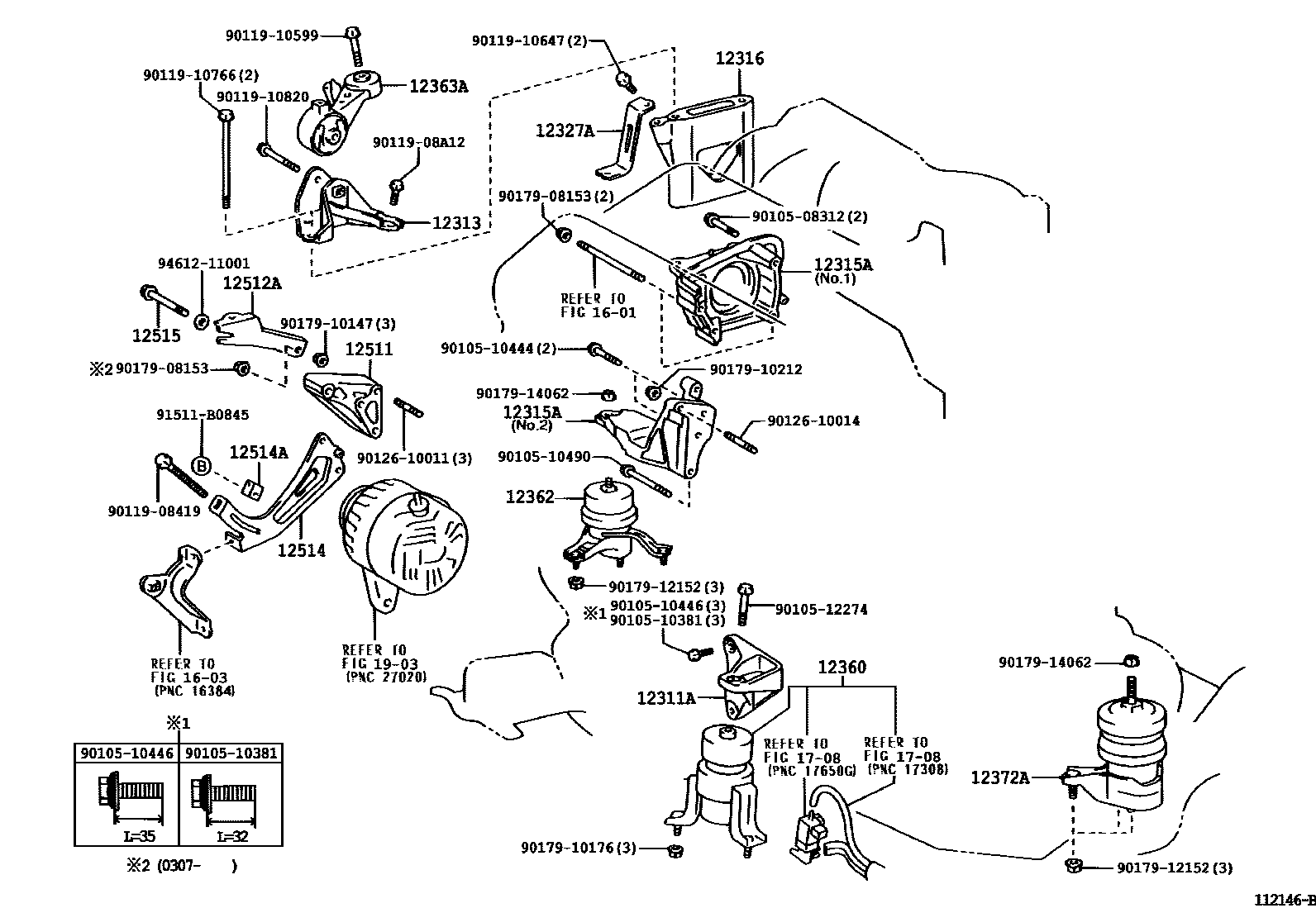

40 parts on this diagram · 1 diagram in section
