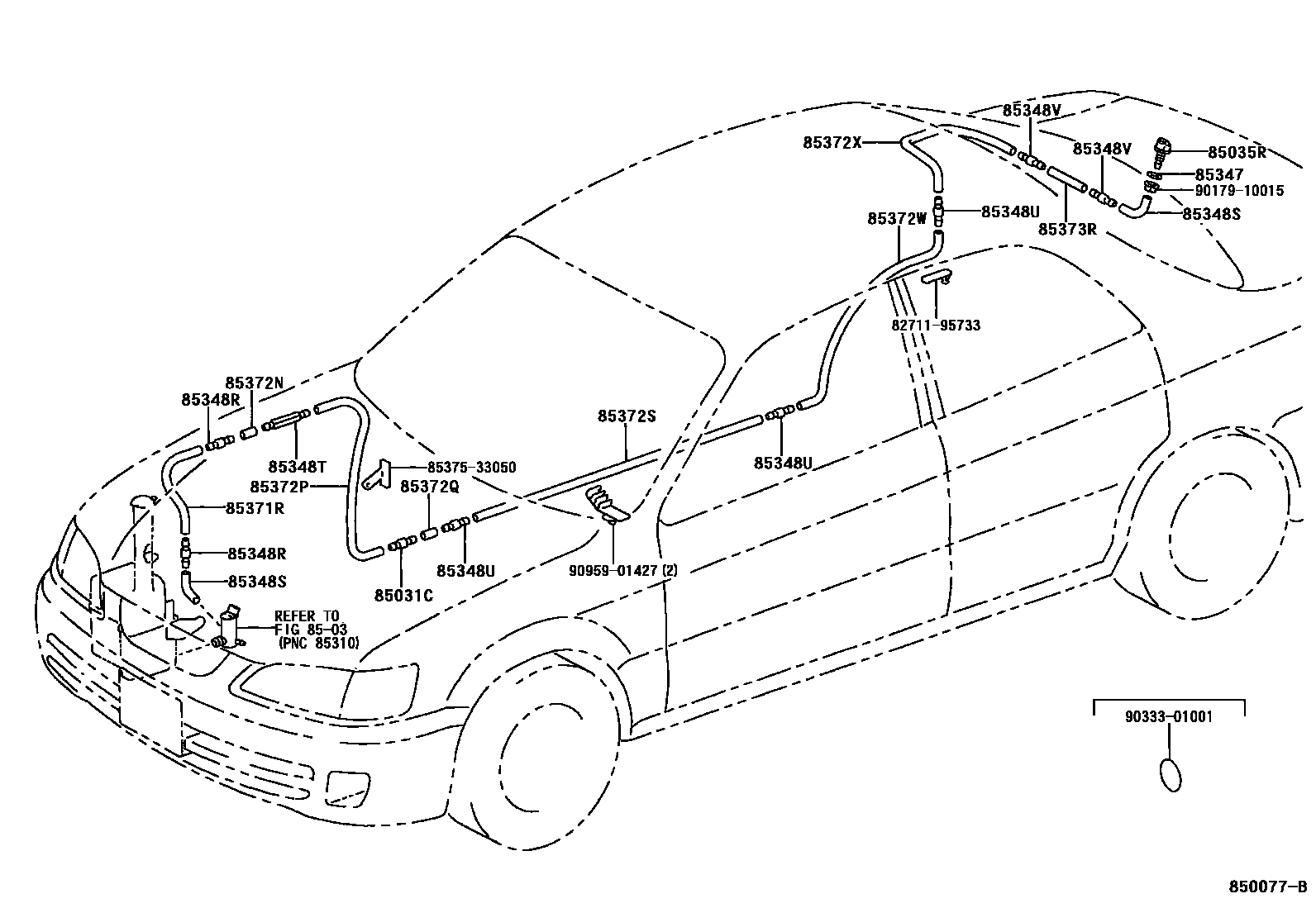

REAR WASHER
8503
85031CVALVE SUB-ASSY, WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
sub85391-22010
85347PACKING, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
sub90099-33299
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
8271195733WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8537533050HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
main85375-33050
9017910015
9033301001
9095901427
22 parts on this diagram · 1 diagram in section
