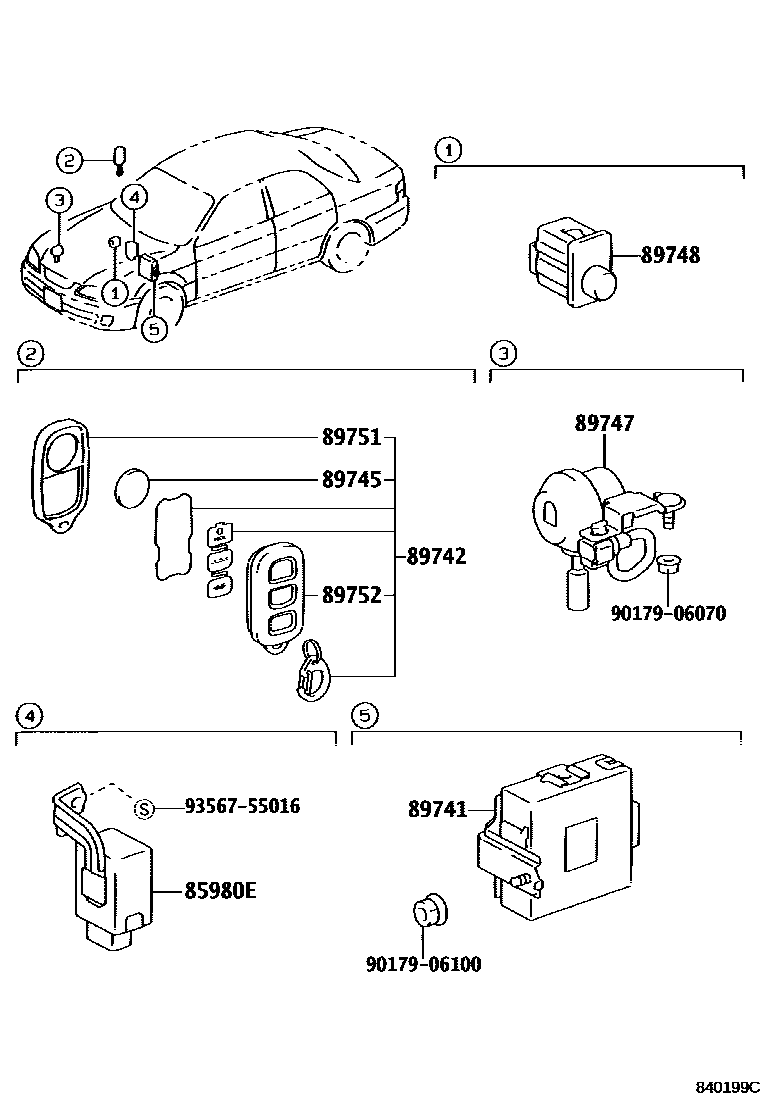

WIRELESS DOOR LOCK

0001 1 0002 1 0004 1

85980ERELAY ASSY, DOOR CONTROL

main85980-33100iMCV2#199608-199908

main85980-33101iMCV2#199908-200107

89741RECEIVER, DOOR CONTROL

main89741-33140iMCV2#199608-199708

main89741-33141iMCV2#199708-200107

89742TRANSMITTER, DOOR CONTROL

main89742-33090iMCV2#199608-199708

89745BATTERY, TRANSMITTER

main89745-40010iMCV2#199708-200107

main89745-50010iMCV2#199608-199708

sub89745-71010

89747BUZZER, WIRELESS DOOR LOCK

main89747-33020iMCV2#199608-200107

89748CONTROLLER, WIRELESS DOOR LOCK BUZZER

main89748-33020iMCV2#199608

89751COVER, TRANSMITTER HOUSING

main89751-50120iMCV2#199608-199708

89752CASE, TRANSMITTER HOUSING

main89752-50030iMCV2#199608-199708

9017906070

main90179-06070

9017906100

main90179-06100

9356755016

main93567-55016

11 parts on this diagram · 3 diagrams in section
