ELECTRONIC MODULATED SUSPENSION

89243COMPUTER, ABSORBER CONTROL

main89243-33050iMCV2#..25G,30G,30X199608-199703

sub89243-33051

main89243-33051iMCV2#..25G,30G,30X199703-199908

sub89243-33052

main89243-33052iMCV2#..25G,30G,30X199908

89244BWIRE, ABSORBER CONTROL, FRONT

main89244-33030iMCV2#..25G,30G,30X199608

89249SWITCH, ABSORBER CONTROL

main89249-33020iMCV2#..25G,30G,30X199608

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10700iMCV2#..25G,30G,30X199608

89249CCAP BULB, ABSORBER CONTROL SWITCH

main84998-10770iMCV2#..25G,30G,30X199608

8761633010CLAMP, COOLING UNIT CASE

main87616-33010

8761641010CLAMP, COOLING UNIT CASE

main87616-41010

9015970003

main90159-70003

9017906161

main90179-06161

9046706152

main90467-06152

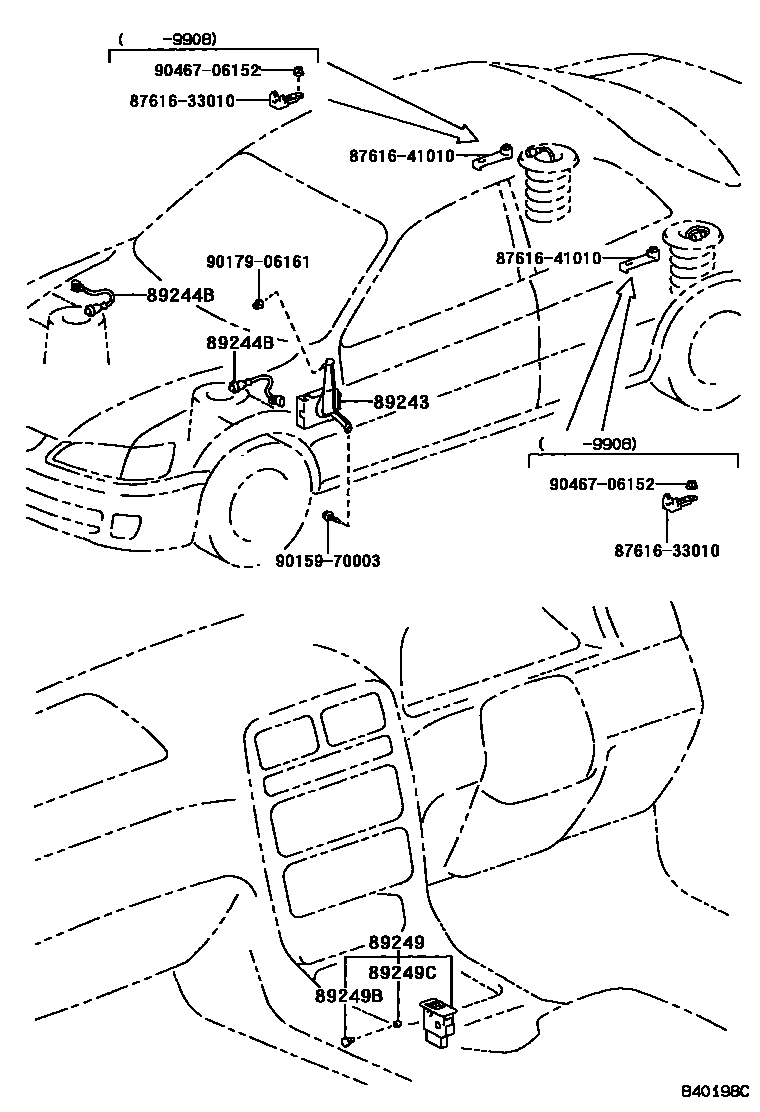

10 parts on this diagram · 1 diagram in section
