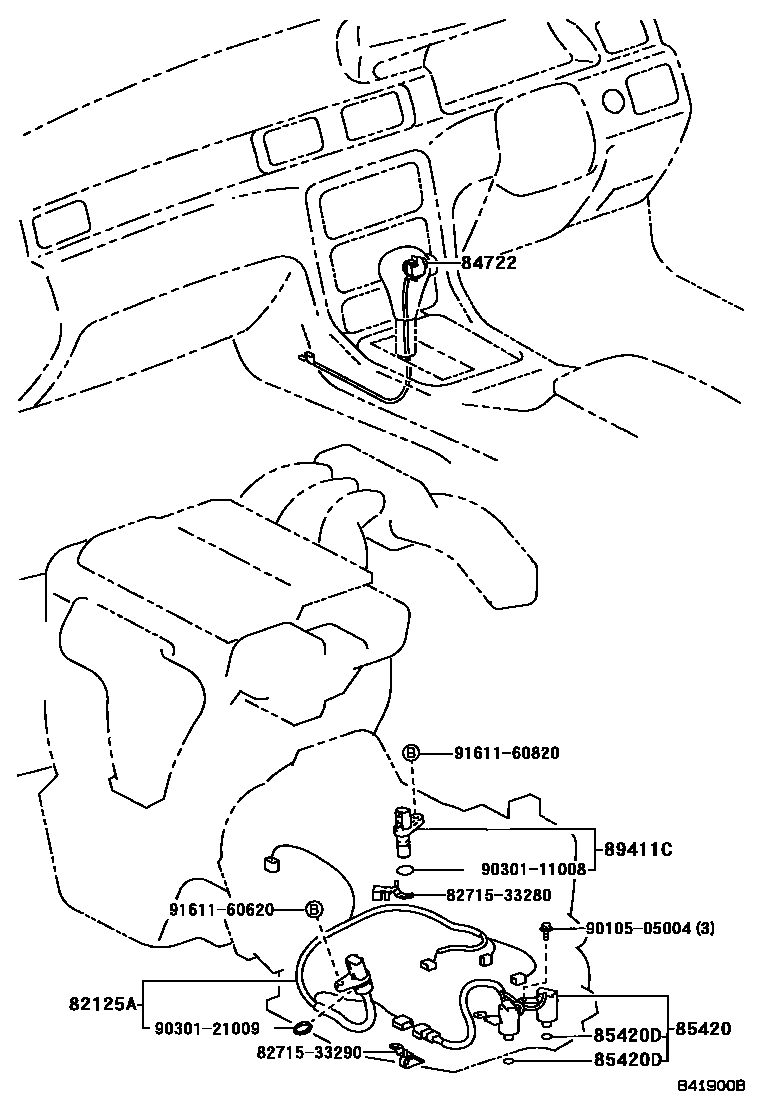

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0003 1 0004 1

82125AWIRE, TRANSMISSION

main82125-21030iMCV20199808

sub82125-28180

main82125-33010iMCV21199608-199808

main82125-33020iMCV20199608-199808

84722SWITCH, TRANSMISSION CONTROL

main84722-33050-C0iMCV2#..25G,30G199608-199908

BLACK,TRIM2#

sub84722-33050

main84722-33050-E0iMCV2#..25G,30G,30X199608-199808

IVORY,TRIM0#

sub84722-33050

main84722-33050-G0iMCV2#199608

SAGE,TRIM6#

sub84722-33050

85420SOLENOID ASSY, TRANSMISSION

main85420-33010iMCV21199608-199808

NIPPON DENSO

main85420-33010iMCV21199808

main85420-33030iMCV21199608-199808

sub85420-33010

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iMCV21199608-199808

89411CSENSOR, SPEED

main89411-33010iMCV2#199608-199808

sub89413-24010

main89413-24010iMCV20199608-199808

8271533280BRACKET,WIRING HARNESS CLAMP

main82715-33280

8271533290BRACKET,WIRING HARNESS CLAMP

main82715-33290

9010505004

main90105-05004

9030111008

main90301-11008

9030121009

main90301-21009

9161160620

main91611-60620

9161160820

main91611-60820

12 parts on this diagram · 3 diagrams in section
