SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1INSTRUMENT PANEL 0007 1COWL 0008 1COMBINATION SWITCH 0009 1FLOOR, DOOR, LUGGAGE

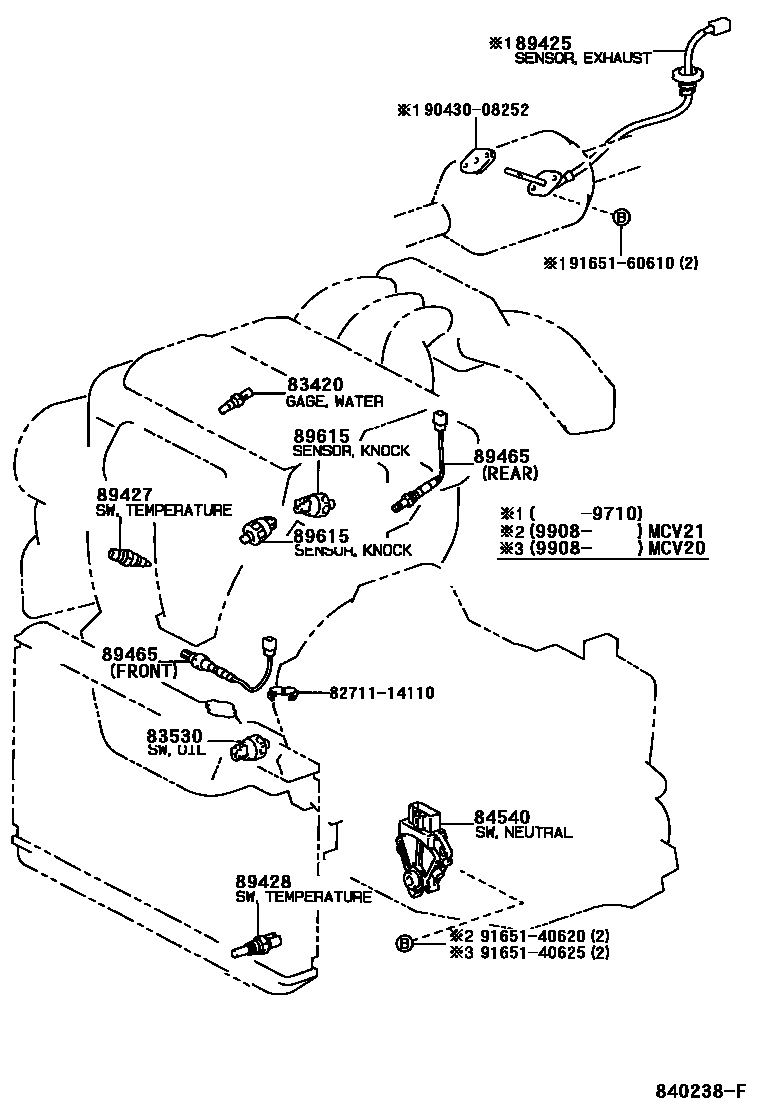

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iMCV2#199608-200008

main83420-20040iMCV2#200008

main83420-AA010iMCV2#200008

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCV2#199802

main83530-30090iMCV2#199608-199802

sub83530-60020

main83530-60020iMCV2#199802

main83530-AA011iMCV2#200008

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-12200iMCV20199808

main84540-12210iMCV20199808

main84540-20200iMCV2#199608-199808

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-39585iMCV2#199608-199710

89427SWITCH, TEMPERATURE DETECT

main89428-41010iMCV2#199608

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-33020iMCV2#199608

89465SENSOR, OXYGEN

main89465-33120iMCV20199808-199908

main89465-33160iMCV21199608-199808

main89465-33170iMCV2#199608-199808

main89465-41050iMCV20199908

main89465-41060iMCV20199908

89615SENSOR, KNOCK CONTROL

main89615-12040iMCV2#199608-199908

main89615-12090iMCV2#199908

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9043008252

main90430-08252

9165140620

main91651-40620

9165140625

main91651-40625

9165160610

main91651-60610

13 parts on this diagram · 7 diagrams in section
