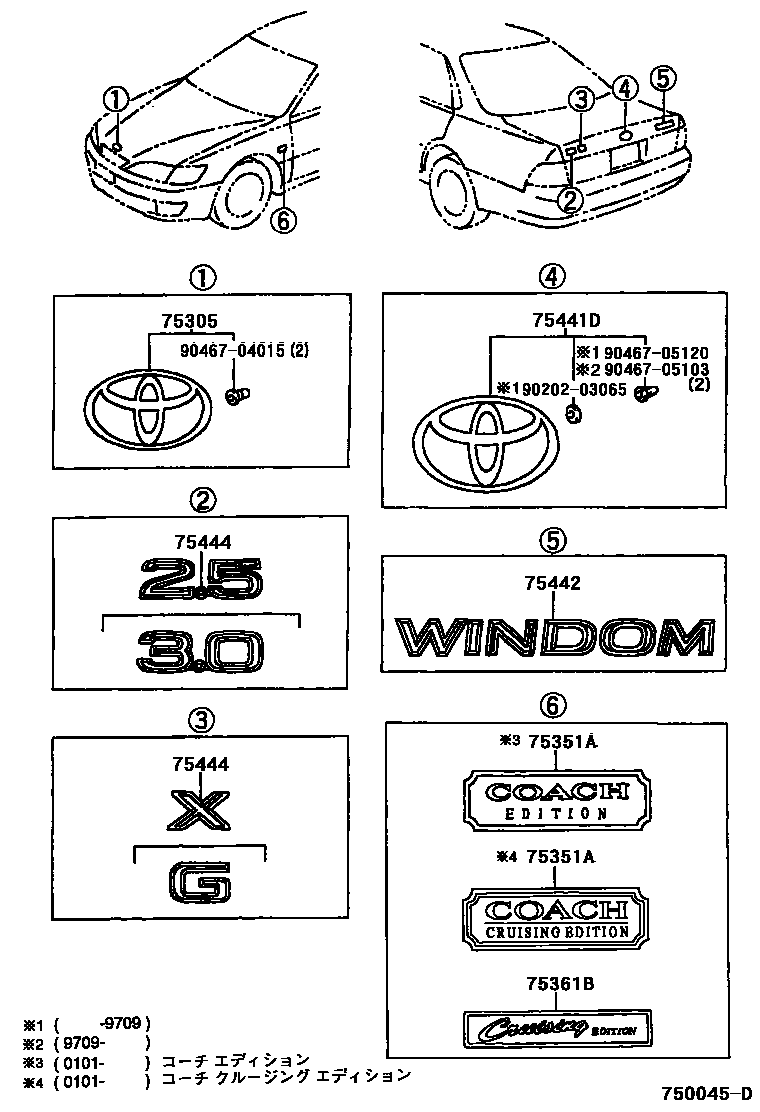

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75305EMBLEM, HOOD

main75331-33020iMCV2#199608

main75331-33050iMCV2#..25G,30G200101-200105

sub75331-33020

main75331-33050iMCV2#..25G,30G199902-199904

sub75331-33020

main75331-33050iMCV2#..25G,30G200001-200004

sub75331-33020

75351AEMBLEM, FRONT FENDER

main75351-33020iMCV2#..25G,30G200101-200105

sub75351-41010

main75351-41010iMCV2#..25G,30G199902-199904

main75351-41010iMCV2#..25G,30G200001-200004

main75351-41010iMCV2#..25G,30G200101-200105

75361BPLATE, SIDE PANEL NAME

main75385-33030iMCV2#..25G,30G199908

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-33060iMCV2#199608-199709

main75441-33061iMCV2#199709

main75441-33100iMCV2#..25G,30G199902-199904

main75441-33100iMCV2#..25G,30G200001-200004

main75441-33100iMCV2#..25G,30G200101-200105

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-33080iMCV2#199608

main75442-33180iMCV2#..25G,30G200001-200004

main75442-33180iMCV2#..25G,30G199902-199904

main75442-33180iMCV2#..25G,30G200101-200105

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-33140iMCV21199608

main75444-33150iMCV2#..25G,30G199608

main75444-33160iMCV20199608

sub75444-33110

main75444-33170iMCV2#..25X,30X199608

main75444-33210iMCV2#..25G,30G200101-200105

main75444-33210iMCV20..30G200001-200004

main75444-33210iMCV2#..25G,30G199902-199904

main75444-33220iMCV2#..25G,30G200101-200105

main75444-33220iMCV21..25G200001-200004

main75444-33220iMCV2#..25G,30G199902-199904

main75444-33230iMCV2#..25G,30G200101-200105

main75444-33230iMCV2#..25G,30G200001-200004

main75444-33230iMCV2#..25G,30G199902-199904

9020203065

main90202-03065

9046704015

main90467-04015

9046705103

main90467-05103

9046705120

main90467-05120

10 parts on this diagram · 1 diagram in section
