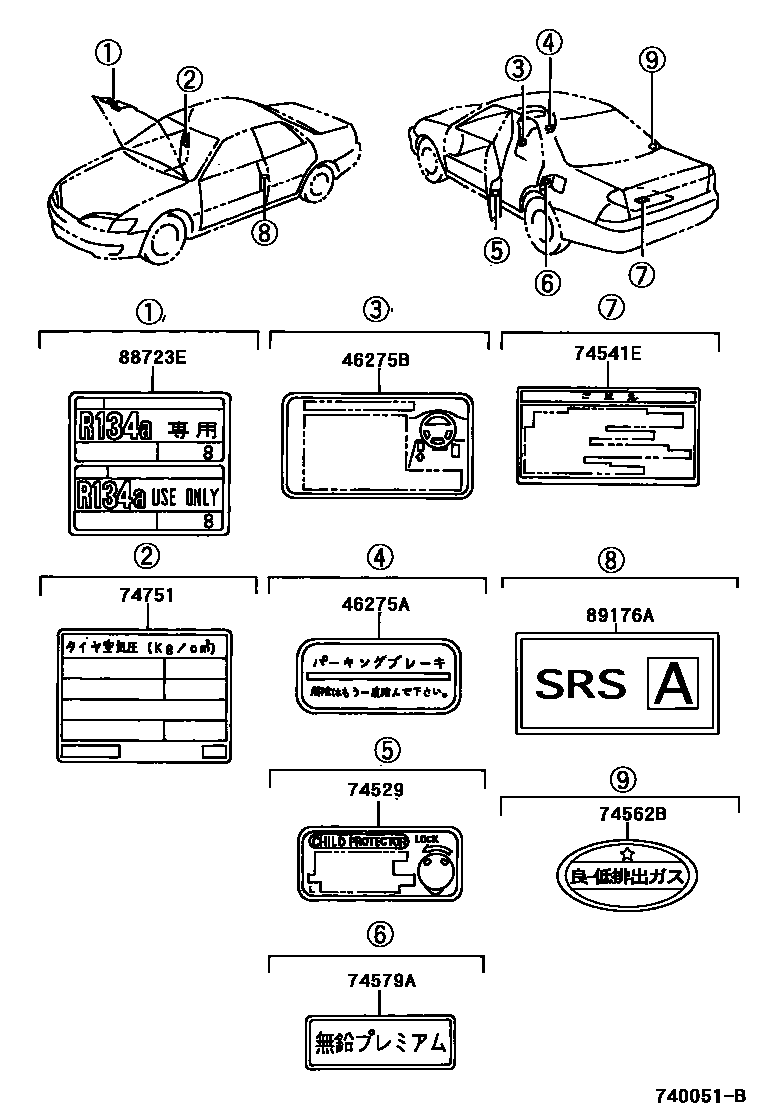

CAUTION PLATE (EXTERIOR & INTERIOR)

46275ALABEL, PARKING BRAKE RELEASE INFORMATION, NO.1

main46275-33010-A0iMCV20..30G199608-199808

WHITE,TRIM0#,6#

sub46275-22010

main46275-33010-A0iMCV20..30G199608-199808

WHITE,TRIM6#

sub46275-22010

main46275-33010-B0iMCV2#199608-199908

GRAY,TRIM2#

sub46275-22010

46275BLABEL, PARKING BRAKE RELEASE INFORMATION, NO.2

main46275-33020iMCV2#199608

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-33020iMCV2#199608

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-28060iMCV2#200003

main42668-32010iMCV2#199806-200003

main42668-33010iMCV2#199608-199806

sub42668-32010

74562BLABEL, EMISSION INFORMATION

main74562-40040iMCV20200009

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-24010iMCV2#199608

74751LABEL, TIRE PRESSURE INFORMATION

main42661-33202iMCV2#199608-199908

main42661-33420iMCV2#199908-200003

sub42661-33421

main42661-33421iMCV2#200003

88723ELABEL, COOLER SERVICE CAUTION

main88723-14010iMCV2#199608

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-32010iMCV2#199808

9 parts on this diagram · 1 diagram in section
