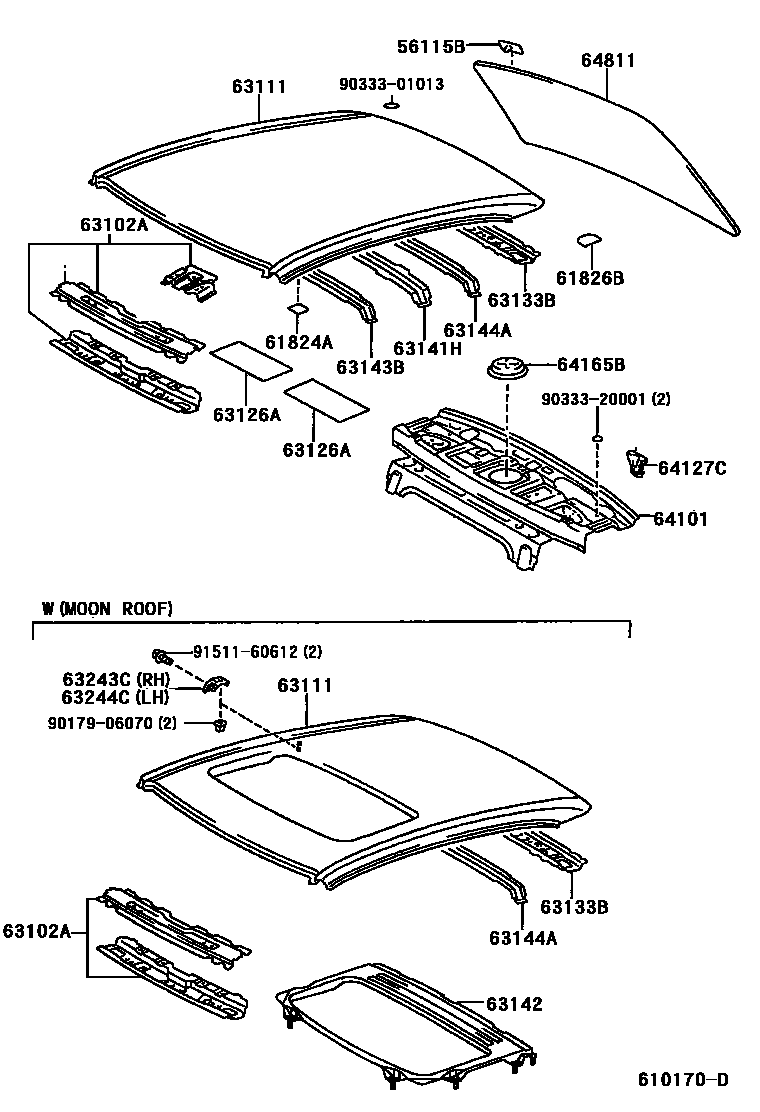

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(MOON ROOF)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56116-35040iMCV2#199608

61824APLATE, NOISE CONTROL, NO.1

main62939-23010iMCV2#199608

sub61824-12110

61826BPLATE, NOISE CONTROL, NO.3

main61826-33010iMCV2#199608-199702

sub61825-12010

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-33080iMCV2#199608-199811

sub63102-33081

main63102-33081iMCV2#199811

sub63102-33900

main63102-33090iMCV2#199608-199811

sub63102-33091

main63102-33091iMCV2#199811

sub63102-33901

63111PANEL, ROOF

main63111-33130iMCV2#199608

main63111-33140iMCV2#199608

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-32010iMCV2#199608

63133BFRAME, BACK WINDOW

main63133-33030iMCV2#199608

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-33030iMCV2#199608

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-33020iMCV2#199608

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33030iMCV2#199608

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-33040iMCV2#199608

main63144-33050iMCV2#199608

63243CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH

main63243-33060iMCV2#199608

63244CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH

main63243-33060iMCV2#199608

64101PANEL SUB-ASSY, UPPER BACK

main64101-33180iMCV2#199608

64127CBRACKET, LUGGAGE DOOR DAMPER STAY

main64127-32050iMCV2#199608

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-33030iMCV21..25X199608-199808

64811GLASS, BACK WINDOW

main64811-33320iMCV2#199608-199808

main64811-33330iMCV2#199608-199808

main64811-33901iMCV2#199608-199808

main64811-33902iMCV2#..25X,30X199608-199808

9017906070

main90179-06070

9033301013

main90333-01013

9033320001

main90333-20001

9151160612

main91511-60612

21 parts on this diagram · 2 diagrams in section
