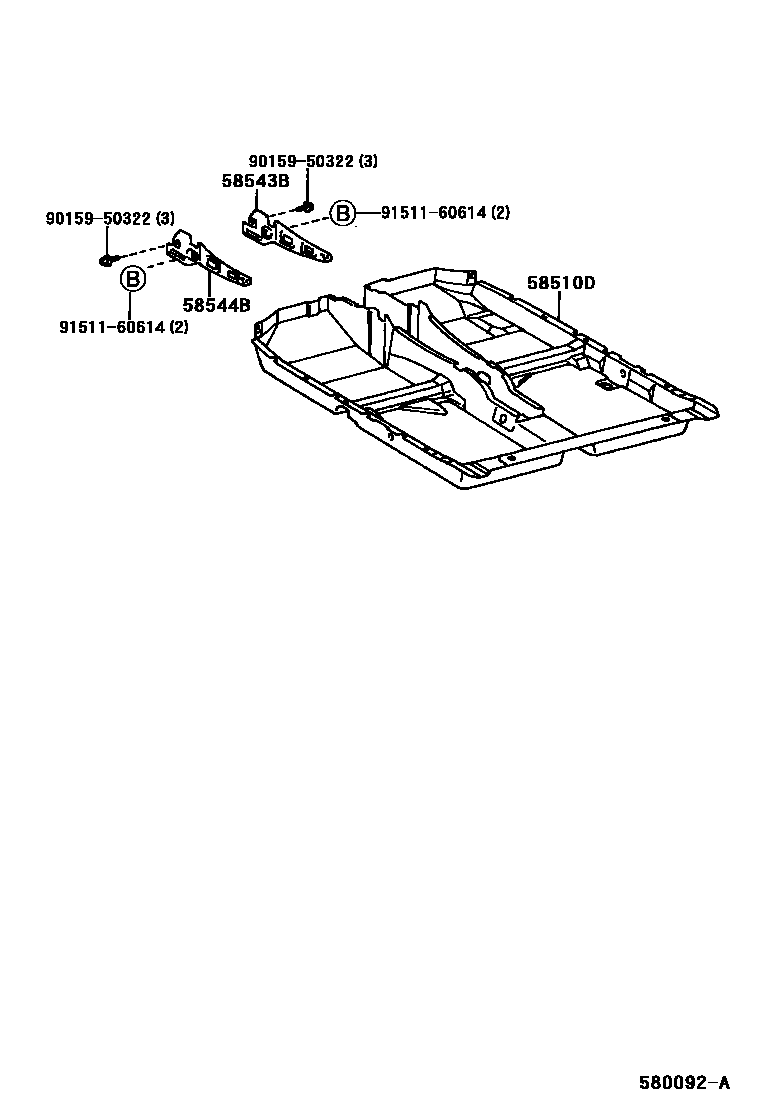

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-33350-A0iMCV2#..25G,30G,30X199608-199808

IVORY,TRIM0#

main58510-33350-C0iMCV2#..25G,30G199608-199908

BLACK,TRIM2#

main58510-33350-G0iMCV2#199608

SAGE,TRIM6#

58543BBRACKET, FLOOR CARPET, RH

main58543-33050iMCV2#199608

58544BBRACKET, FLOOR CARPET, LH

main58544-33050iMCV2#199608

9015950322

main90159-50322

9151160614

main91511-60614

5 parts on this diagram · 1 diagram in section
