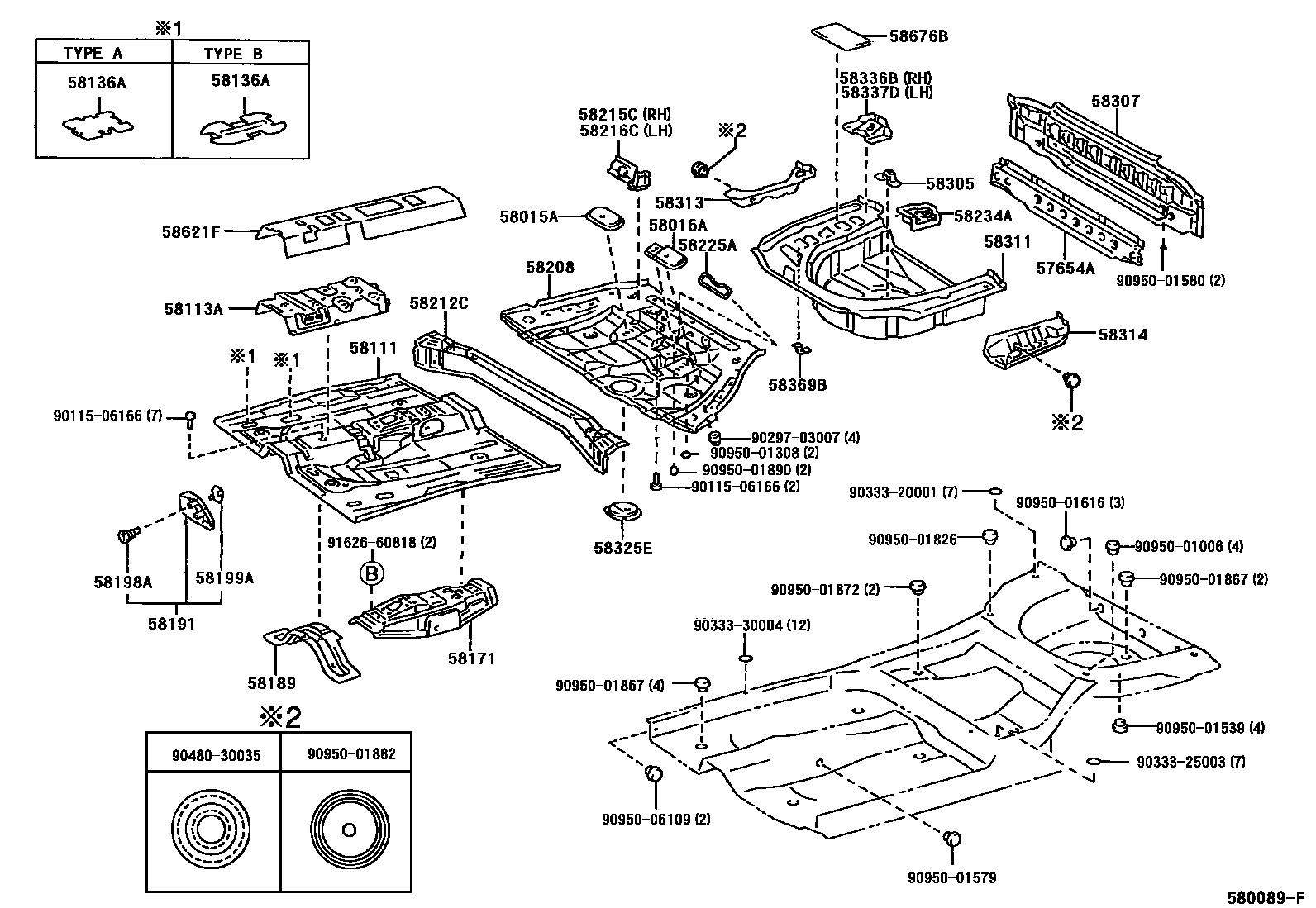

FLOOR PAN & LOWER BACK PANEL
57654AMEMBER, REAR FLOOR CROSS, NO.3
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111PAN, FRONT FLOOR
58113APANEL, FRONT FLOOR, CENTER
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58225ABRACKET, CENTER MOUNTING
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
sub58305-33050
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58369BBRACKET, FUEL TUBE, NO.3
58621FSILENCER, CENTER CONSOLE, NO.1
58676BPAD, REAR FLOOR SILENCER, NO.1 RH
9011506166
main90115-06166
9029703007
main90297-03007
9033320001
main90333-20001
9033325003
main90333-25003
9033330004
main90333-30004
9048030035
main90480-30035
9095001006
main90950-01006
9095001308
main90950-01308
9095001539
main90950-01539
9095001579
main90950-01579
9095001580
main90950-01580
9095001616
main90950-01616
9095001826
main90950-01826
9095001867
main90950-01867
9095001872
main90950-01872
9095001882
main90950-01882
9095001890
main90950-01890
9095006109
main90950-06109
9162660818
main91626-60818
47 parts on this diagram · 1 diagram in section
