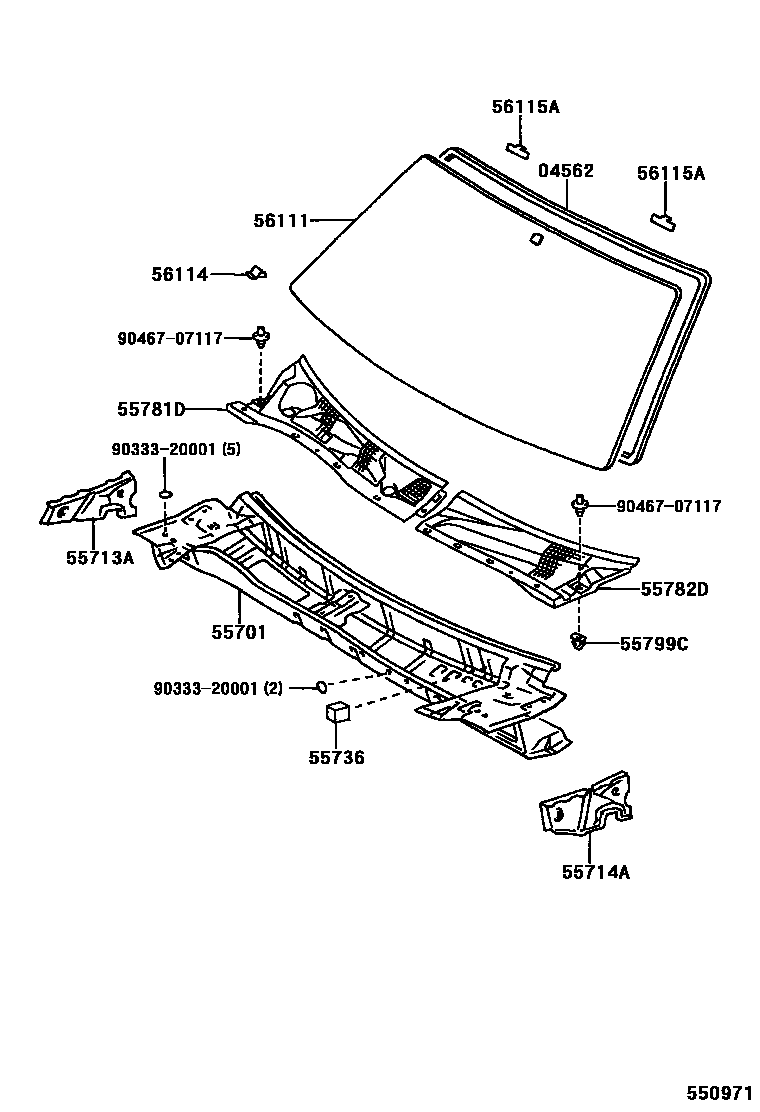

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iMCV2#199608

55701PANEL SUB-ASSY, COWL

main55700-33180iMCV2#199608

55713APANEL, COWL TOP SIDE, RH

main55713-33020iMCV2#199608

55714APANEL, COWL TOP SIDE, LH

main55714-33020iMCV2#199608

55736SEAL, WATER GUARD PLATE

main55736-33010iMCV2#199810-199902

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-33150iMCV2#199608-199810

sub55781-33151

main55781-33151iMCV2#199810-200107

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-33150iMCV2#199608-199810

sub55782-33151

main55782-33151iMCV2#199810-199901

sub55782-33152

main55782-33152iMCV2#199901

main55782-33200iMCV2#199810-199901

sub55782-33201

main55782-33201iMCV2#199901

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-33010iMCV2#199810

56111GLASS, WINDSHIELD

main56101-33190iMCV2#..25X,30X199608-199908

main56101-33200iMCV2#199608-199908

main56101-33260iMCV2#..25G,30G199908

main56101-33270iMCV2#..25G,30G199908

56114RETAINER, WINDSHIELD GLASS

main56114-22050iMCV2#199608

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-33020iMCV2#199608

9033320001

main90333-20001

9046707117

main90467-07117

13 parts on this diagram · 1 diagram in section
