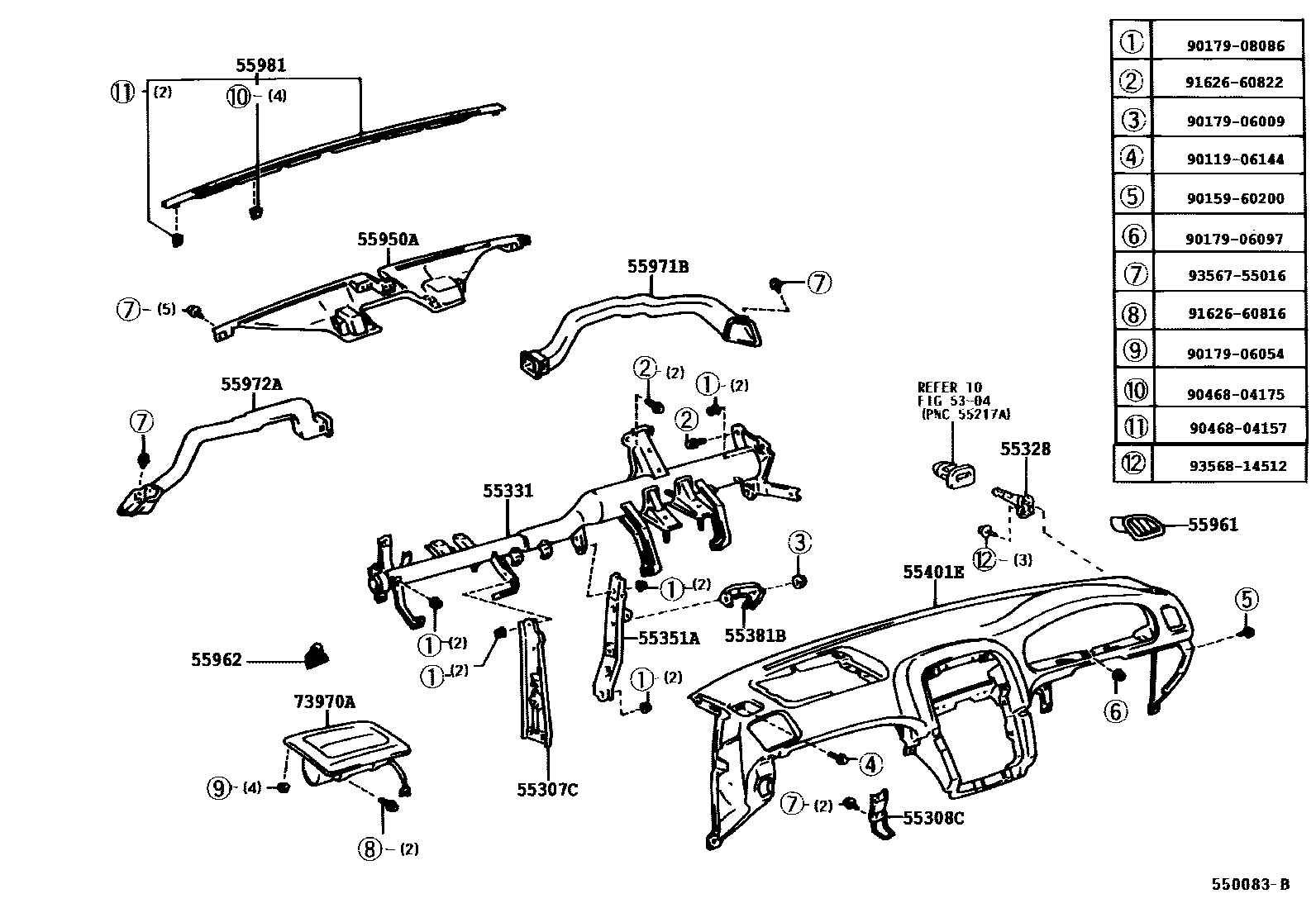

INSTRUMENT PANEL & GLOVE COMPARTMENT
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55328PIN, INSTRUMENT PANEL, NO.1
55331REINFORCEMENT, INSTRUMENT PANEL
55351ABRACE, INSTRUMENT PANEL TO FLOOR
55381BBRACKET, FINISH PANEL MOUNTING, NO.1
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM2#
OAK,TRIM0#
DK.SAGE,TRIM6#
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
BLACK,TRIM2#
OAK,TRIM0#
DK.SAGE,TRIM6#
9011906144
main90119-06144
9015960200
main90159-60200
9017906009
main90179-06009
9017906054
main90179-06054
9017906097
main90179-06097
9017908086
main90179-08086
9046804157
main90468-04157
9046804175
main90468-04175
9162660816
main91626-60816
9162660822
main91626-60822
9356755016
main93567-55016
9356814512
main93568-14512
26 parts on this diagram · 2 diagrams in section
