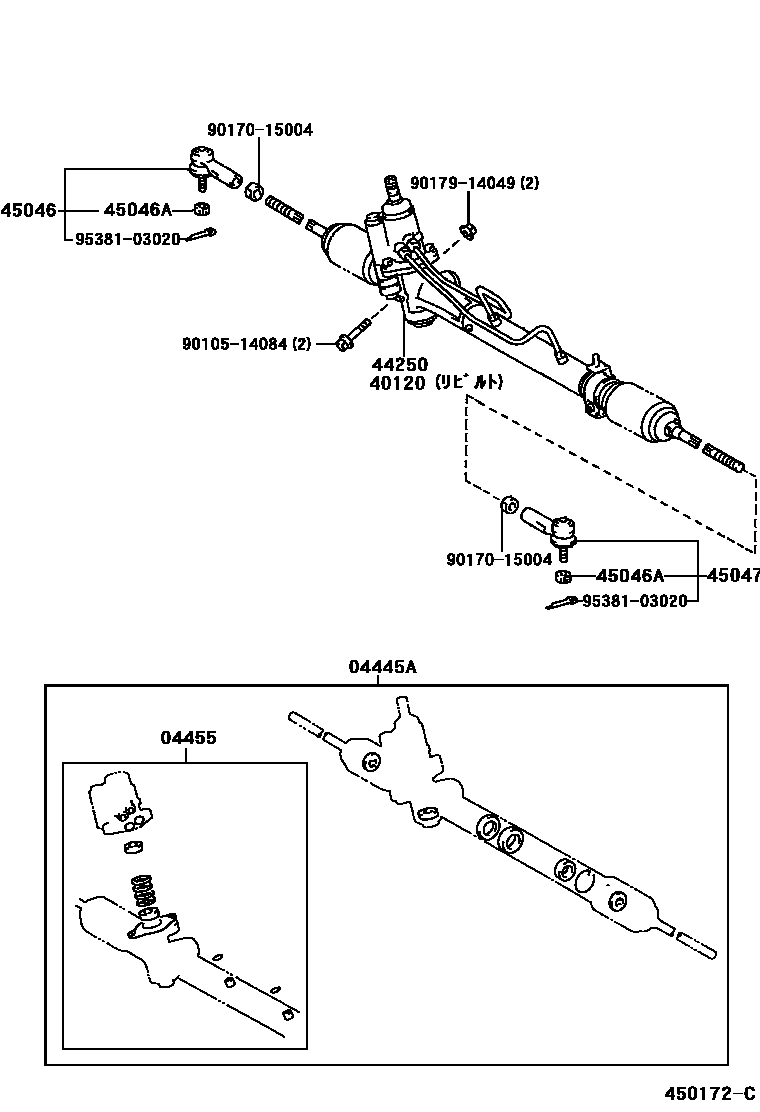

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-33050iMCV2#199608-199610

sub04445-33070

main04445-33070iMCV2#199610-199908

main04445-33080iMCV2#199908

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-33020iMCV2#199608

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-33181iMCV2#199608

KOYO

sub40120-33171

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33180iMCV2#199608-199710

sub44250-33181

main44250-33181iMCV2#199710

sub44250-33171

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iMCV2#199608

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMCV2#199608

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iMCV2#199608

9010514084

main90105-14084

9017015004

main90170-15004

9017914049

main90179-14049

9538103020

main95381-03020

11 parts on this diagram · 2 diagrams in section
