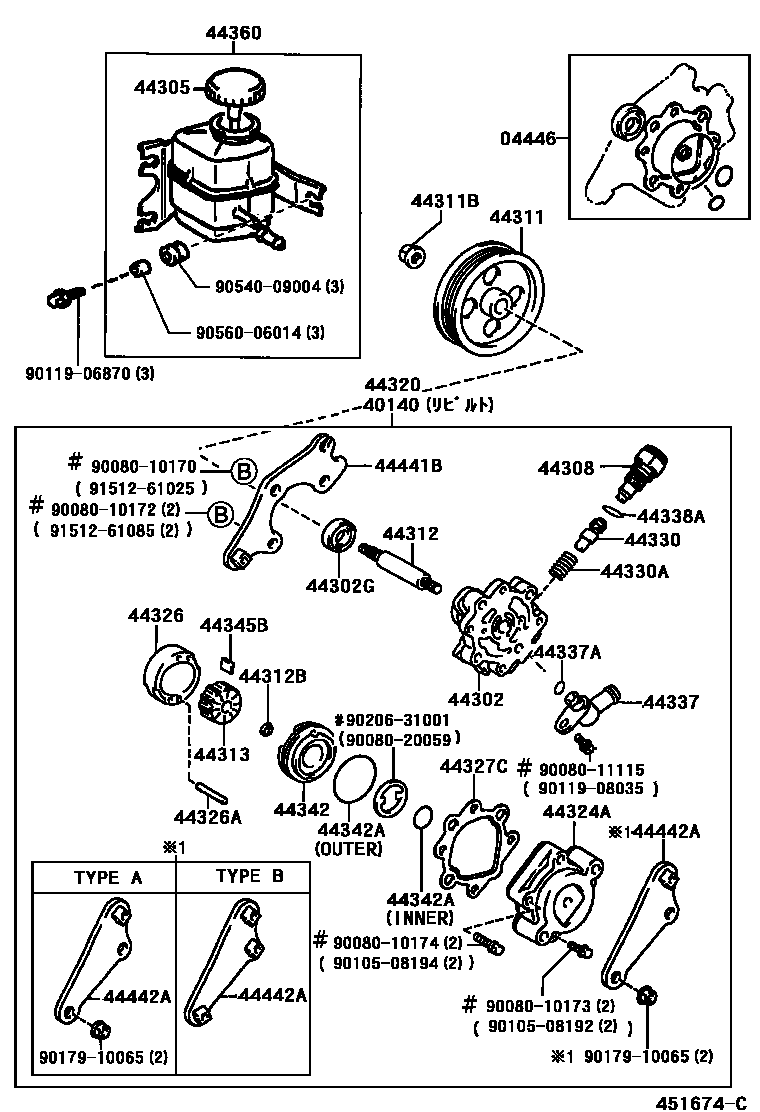

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
40140PUMP ASSY,VANE REBUILT
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44308UNION SUB-ASSY, PRESSURE PORT
44311PULLEY, VANE PUMP
44311BNUT(FOR VANE PUMP PULLEY)
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44326RING, CAM(FOR VANE PUMP)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44327CGASKET, VANE PUMP HOUSING
44330VALVE ASSY, FLOW CONTROL
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44338ARING, O(FOR PRESSURE PORT UNION)
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44345BPLATE, VANE PUMP
44360RESERVOIR ASSY, VANE PUMP OIL
44441BBRACKET, PUMP, FRONT
44442ABRACKET, VANE PUMP, REAR
9008010170
main90080-10170
9008010172
9008010173
9008010174
9008011115
main90080-11115
9008020059
main90080-20059
9010508192
9010508194
9011906870
9011908035
9017910065
9020631001
9054009004
9056006014
9151261025
9151261085
43 parts on this diagram · 1 diagram in section
