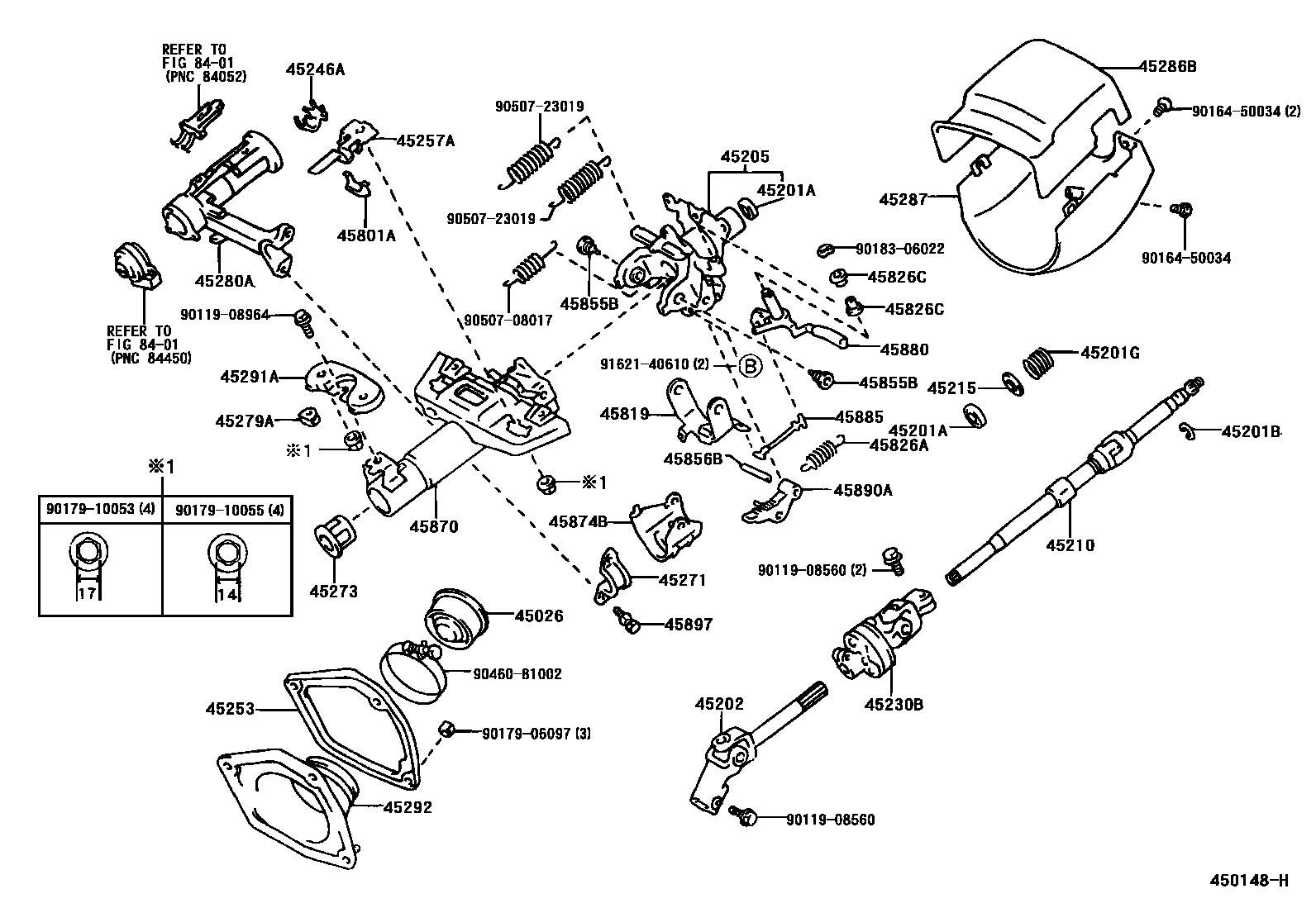

STEERING COLUMN & SHAFT
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45205TUBE SUB-ASSY, STEERING COLUMN
45215COLLAR, MAIN SHAFT BEARING THRUST
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45253COVER, STEERING COLUMN HOLE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45291ASUPPORT, STEERING COLUMN TUBE
45292SEAL, MAIN SHAFT LOWER DUST
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45819RETAINER, TILT LEVER
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826CBUSH(FOR STEERING TILT LEVER)
45855BSHAFT, T1LT STEERING, NO.1
45870TUBE ASSY, STEERING COLUMN
45874BPROTECTOR, STEERING COLUMN, NO.1
45885LINK, TILT LEVER
45890APAWL ASSY, TILT STEERING
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9011908964
main90119-08964
9016450034
main90164-50034
9017906097
main90179-06097
9017910053
main90179-10053
9017910055
main90179-10055
9018306022
main90183-06022
9046081002
main90460-81002
9050708017
main90507-08017
9050723019
main90507-23019
9162140610
main91621-40610
44 parts on this diagram · 1 diagram in section
