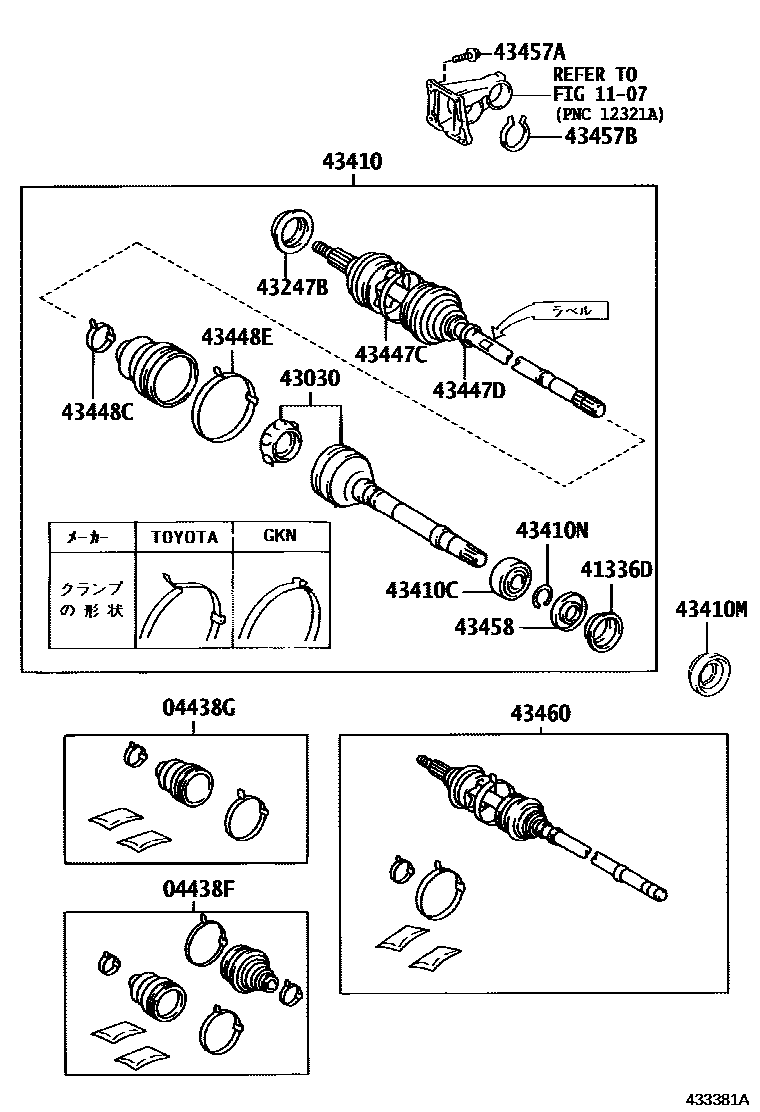

FRONT DRIVE SHAFT

0001 1RH,GKN 0002 1RH,TOYOTA 0003 1LH,GKN 0004 1LH,TOYOTA

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-06100iMCV21199608-200107

main04438-33021iMCV21199608-199712

sub04438-33022

main04438-33090iMCV21200105-200107

sub04428-33060

main04438-48030iMCV21199712-199912

sub04438-48032

main04438-48031iMCV21199912-200105

sub04428-48090

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-06090iMCV21199608

main04438-33011iMCV21199608-199912

sub04438-33012

main04438-33012iMCV21199912

sub04438-33013

1107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iMCV21199608

main41336-12020iMCV21199608

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-06040iMCV2#199608

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-06010iMCV21199608

main43247-12010iMCV21199608

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06170iMCV21199608-200107

main43410-33070iMCV21199608-199711

sub43410-33150

main43410-33150iMCV21199712-199908

sub43410-33200

main43410-33200iMCV21199908-200008

sub43410-33201

sub90178-22001

main43410-33201iMCV21200008-200105

sub43410-33202

main43410-33202iMCV21200105-200107

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41002iMCV2#199911

sub90363-41003

main90369-41001iMCV2#199608-199911

sub90363-41002

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40010iMCV2#199608-200012

sub90311-40028

main90311-40028iMCV21200012

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iMCV21199608

main90520-38015iMCV21199608

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06060iMCV20199608

main42345-06060iMCV21199608

main42345-16030iMCV21199608-199712

main42345-48030iMCV21199712

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06070iMCV21199608-200107

main42345-06070iMCV21199608-200107

main42345-16070iMCV21199608-199712

main42345-44010iMCV21200103-200105

sub42345-44020

main42345-44020iMCV21200105-200107

main42345-48040iMCV21199712-200105

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-14010iMCV21199608

main90080-46084iMCV21199608-199705

main90080-46238iMCV2#199705

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16100iMCV21199608-199908

main90080-46173iMCV21199608

main90949-01340iMCV21199908

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iMCV2#199608

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iMCV2#199608

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iMCV20199608

main43458-12010iMCV21199608

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-09340iMCV20199608-200107

main43470-39206iMCV21199608-199712

sub43470-39207

main43470-39207iMCV21199712-199912

sub43470-39355

sub90178-22001

main43470-39209iMCV21199912-200008

sub43470-39365

sub90178-22001

main43470-39365iMCV21200008-200105

sub43470-39366

main43470-39366iMCV21200105-200107

sub43470-39367

18 parts on this diagram · 4 diagrams in section
