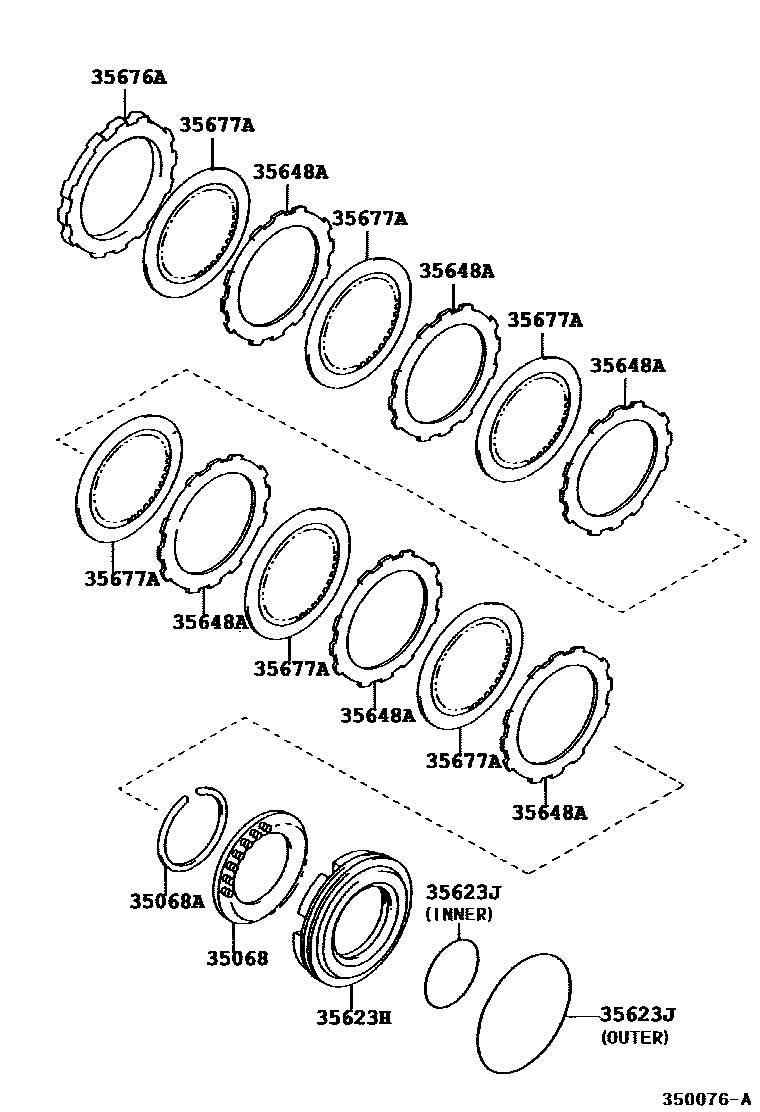

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A541E 0003 1U140E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21010iMCV20199808

main35068-33010iMCV2#199608-199808

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-86004iMCV2#199608-199808

main90520-99035iMCV20199808

35623HPISTON, 1ST & REVERSE BRAKE

main35623-21010iMCV20199808

main35623-33010iMCV21199808

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-90001iMCV21199808

main90301-99078iMCV2#199608-199808

main90301-99096iMCV20199808

main90301-99098iMCV20199808

sub90301-99134

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-33020×6iMCV2#199608-199808

main35692-21010×7iMCV20199808

sub35692-21011

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-33010iMCV2#199608-199808

main35678-21010iMCV20199808

main35678-21020iMCV20199808

main35678-21030iMCV20199808

main35678-21040iMCV20199808

main35678-21050iMCV20199808

main35678-21060iMCV20199808

main35678-21070iMCV20199808

main35678-21080iMCV20199808

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-33040×6iMCV2#199608-199808

main35682-21010×7iMCV20199808

7 parts on this diagram · 2 diagrams in section
