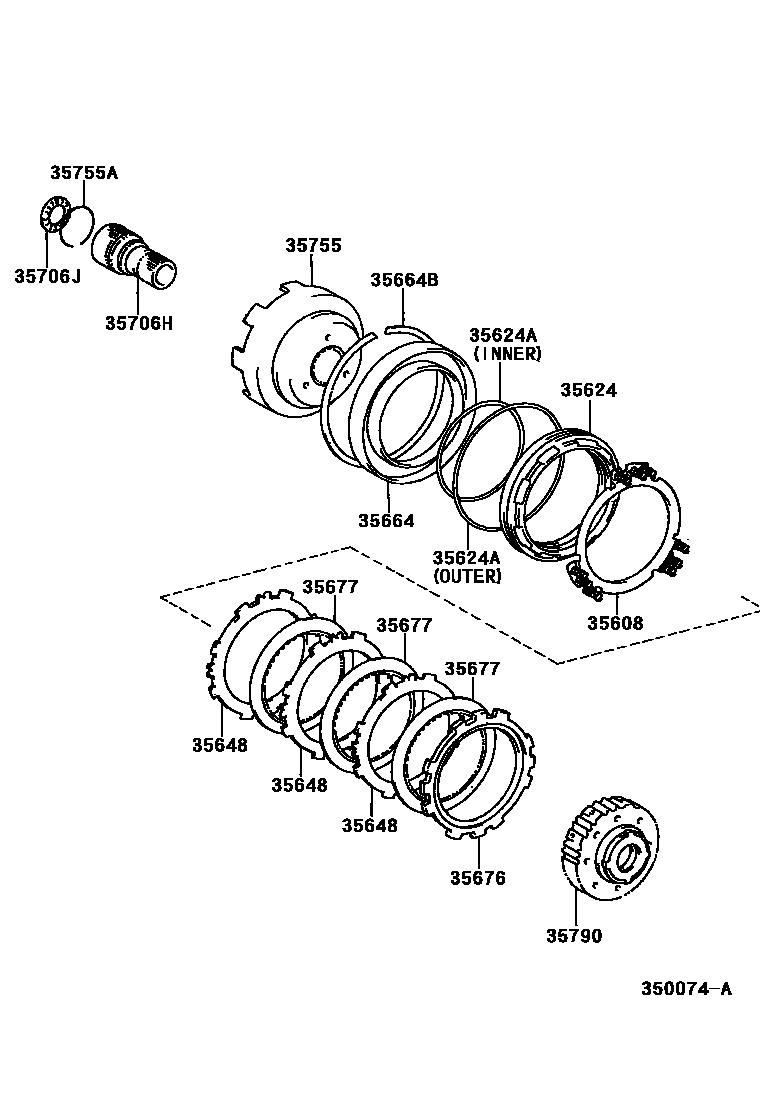

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A541E 0003 1U140E

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-21010iMCV20199808

main35608-33010iMCV2#199608-199808

35624PISTON, 2ND BRAKE

main35624-21010iMCV20199808

main35624-33010iMCV2#199608-199808

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iMCV2#199608-199808

main90301-99023iMCV21199608-199808

main90301-99093iMCV20199808

main90301-99095iMCV20199808

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-33010iMCV2#199608-199808

main35691-21010iMCV20199808

35664CYLINDER, 2ND BRAKE

main35664-21010iMCV20199808-199905

sub35664-21011

sub35798-21011

main35664-21011iMCV20199905

sub35664-33010

main35664-32010iMCV21199608-199808

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99027iMCV20199808

main90521-99013iMCV2#199608-199808

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-21070iMCV20199808

main35676-21080iMCV20199808

main35676-21090iMCV20199808

main35676-21100iMCV20199808

main35676-21110iMCV20199808

main35676-21120iMCV20199808

main35676-21130iMCV20199808

main35676-33010iMCV2#199608-199808

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-33050iMCV21199608-199808

main35681-21010iMCV20199808

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-33011iMCV2#199608-199707

sub35706-33012

main35706-33012iMCV2#199707-199808

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30008iMCV2#199608-199609

sub90374-30014

main90374-30014iMCV2#199609-199808

main90374-38002iMCV20199808

35755DRUM, SUN GEAR INPUT

main35755-33010iMCV2#199608-199808

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-36017iMCV2#199608-199808

35790CLUTCH ASSY, 1 WAY

main35790-21010iMCV20199808

main35790-33010iMCV2#199608-199808

13 parts on this diagram · 2 diagrams in section
