TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

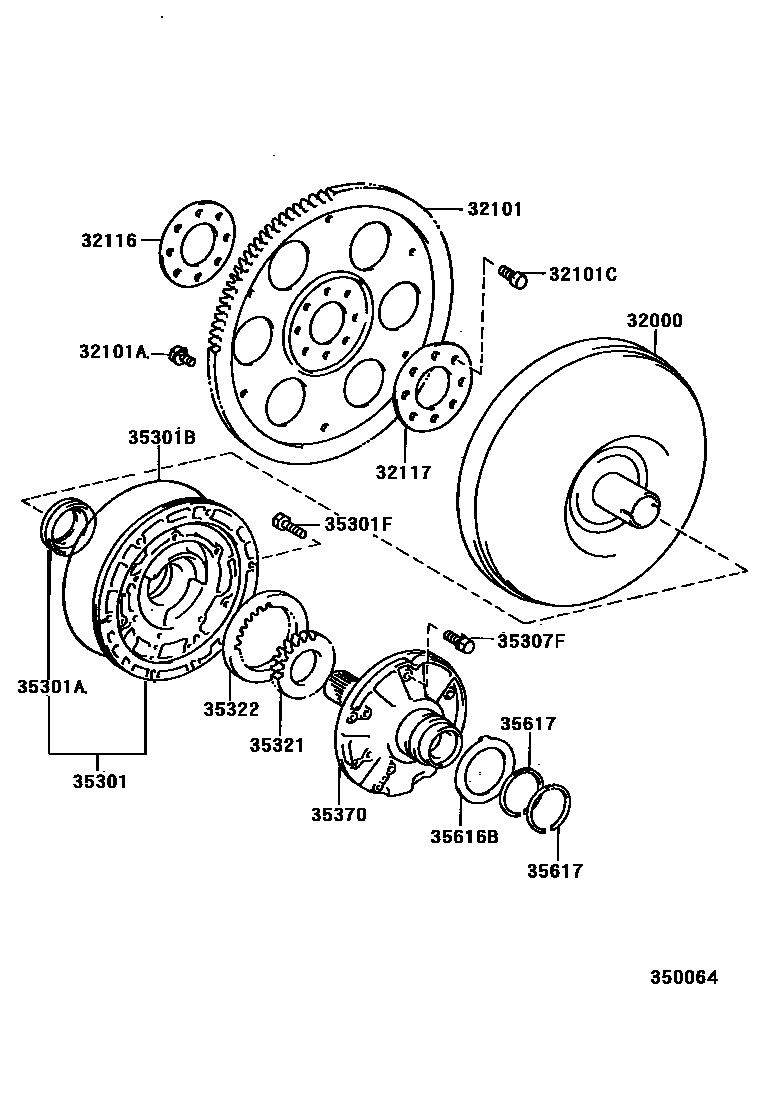

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-33030i199608-199808
main32000-33040i199608-199808
sub32000-33050
main32000-33050i199907
main32000-33060i199808-199907
sub32000-33050
main32000-41010i199808-199907
sub32000-48011
main32000-48011i199907
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-33010i199608
sub32101-48010
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i199708
main90119-09018i199608-199708
sub90119-09025
main90119-09019i199608-199708
sub90109-09001
main90119-09025i199708
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i199608
32116SPACER, DRIVE PLATE, FRONT
main32116-32020i199608
32117SPACER, DRIVE PLATE, REAR
main32117-32020i199608
35301BODY SUB-ASSY, FRONT OIL PUMP
main35301-33010i199608-199808
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38020i199608-200011
main90311-38064i199810
main90311-38082i200011
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99079i199608-199808
main90301-99099i199808
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i199608
35307FBOLT (FOR STATOR SHAFT)
main90119-06808i199608-199808
sub90119-06559
main90148-60027i199808
35321GEAR, FRONT OIL PUMP DRIVE
main35321-21010i199808-200008
sub35035-21H00
main35321-21020i199808-200008
sub35035-21H00
main35321-21030i199808-200008
sub35035-21H00
main35321-21040i199808-200008
sub35035-21H00
main35321-21050i199808-200008
sub35035-21H00
main35321-21060i200008
sub35321-28060
main35321-21070i200008
sub35321-28070
main35321-21080i200008
sub35321-28080
main35321-21090i200008
sub35321-28090
main35321-21100i200008
sub35321-28100
main35321-33010i199608-199808
main35321-33030i199608-199808
main35321-33050i199608-199808
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-21010i199808-200008
sub35035-21H00
main35322-21020i199808-200008
sub35035-21H00
main35322-21030i199808-200008
sub35035-21H00
main35322-21040i199808-200008
sub35035-21H00
main35322-21050i199808-200008
sub35035-21H00
main35322-21060i200008
sub35322-28060
main35322-21070i200008
sub35322-28070
main35322-21080i200008
sub35322-28080
main35322-21090i200008
sub35322-28090
main35322-21100i200008
sub35322-28100
main35322-33010i199608-199808
main35322-33030i199608-199808
main35322-33050i199608-199808
35370SHAFT ASSY, STATOR
main35370-21010i199808-200008
sub35035-21H00
main35370-21020i200010
sub35370-28010
main35370-21030i200008-200010
main35370-33020i199608-199808
35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
main35616-32010i199608-199808
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i199808
main35617-32011i199608-199808

16 parts on this diagram · 2 diagrams in section
