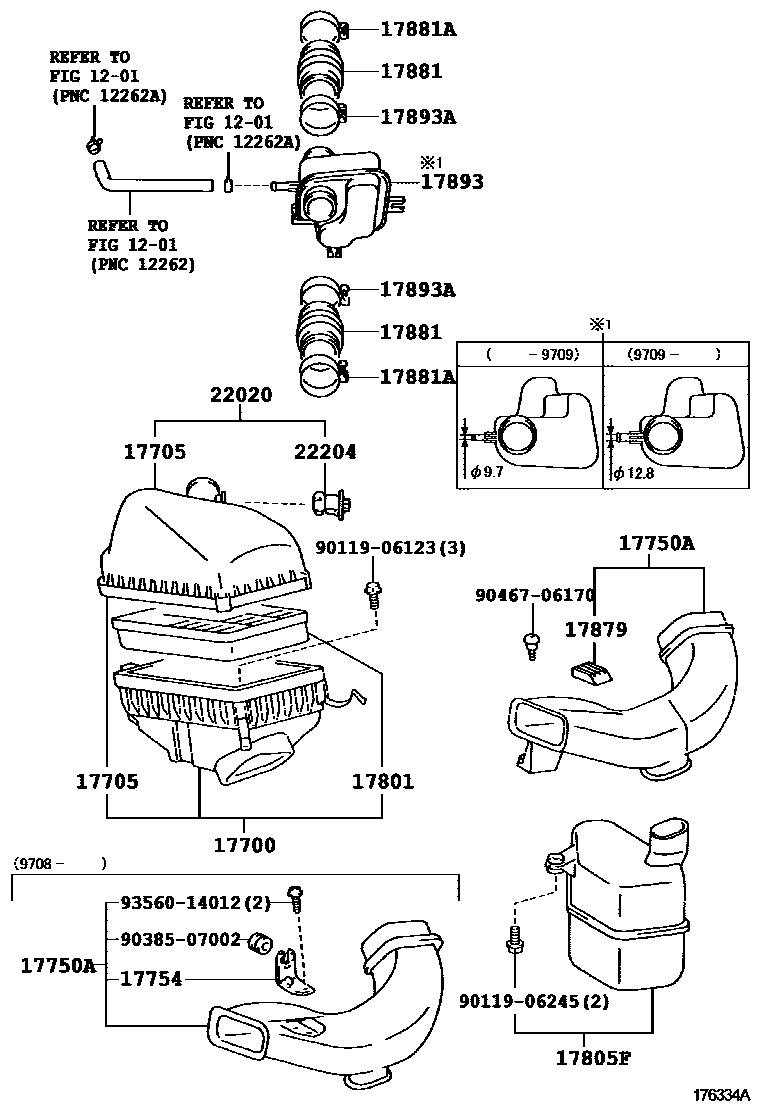

AIR CLEANER

0001 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-20060i2MZFE..MCV21199608-199907

sub17700-20061

main17700-20061i2MZFE..MCV21199907

main17700-20100i1MZFE..MCV20199808

17705CAP SUB-ASSY, AIR CLEANER

main17705-20050i1MZFE,2MZFE..MCV2#199608-199907

sub17705-20051

main17705-20051i2MZFE..MCV21199907

main17705-20080i1MZFE..MCV20199808

17750AINLET ASSY, AIR CLEANER

main17750-20010i1MZFE,2MZFE..MCV2#199608-199708

sub17750-20030

main17750-20030i2MZFE..MCV21199708-199908

main17750-20080i1MZFE..MCV20199808

main17750-20100i2MZFE..MCV21199908

sub17750-20061

17754STAY, AIR CLEANER INLET

main17754-20010i1MZFE..MCV20199808

main17754-74030i1MZFE,2MZFE..MCV2#199708-199808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-03010i1MZFE,2MZFE..MCV2#199608

main17801-74060i1MZFE,2MZFE..MCV2#199608

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-20020i1MZFE,2MZFE..MCV2#199608

17879PAD, AIR CLEANER INLET

main17879-74010i1MZFE,2MZFE..MCV2#199608-199708

17881HOSE, AIR CLEANER, NO.1

main17881-20090i1MZFE,2MZFE..MCV2#199608-199808

main17881-20100i1MZFE..MCV20199808

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i1MZFE..MCV20199808

main96111-10830i1MZFE,2MZFE..MCV2#199608-199808

17893RESONATOR, INTAKE AIR

main17893-20030i1MZFE,2MZFE..MCV2#199608-199709

sub17893-20031

sub12262-20020

sub90467-19022

main17893-20031i1MZFE,2MZFE..MCV2#199709-199808

main17893-20040i1MZFE..MCV20199808

17893ACLAMP, HOSE

main96111-10830i1MZFE,2MZFE..MCV2#199608-199808

main96111-10930i1MZFE..MCV20199808

22020METER ASSY, AIR FLOW W/AIR CLEANER

main22020-20050i1MZFE,2MZFE..MCV2#199608-199907

sub22020-20051

main22020-20051i2MZFE..MCV21199907

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-20010i1MZFE,2MZFE..MCV2#199608-199808

main22204-21010i1MZFE..MCV20199808

9011906123

main90119-06123

9011906245

main90119-06245

9038507002

main90385-07002

9046706170

main90467-06170

9356014012

main93560-14012

18 parts on this diagram · 3 diagrams in section
