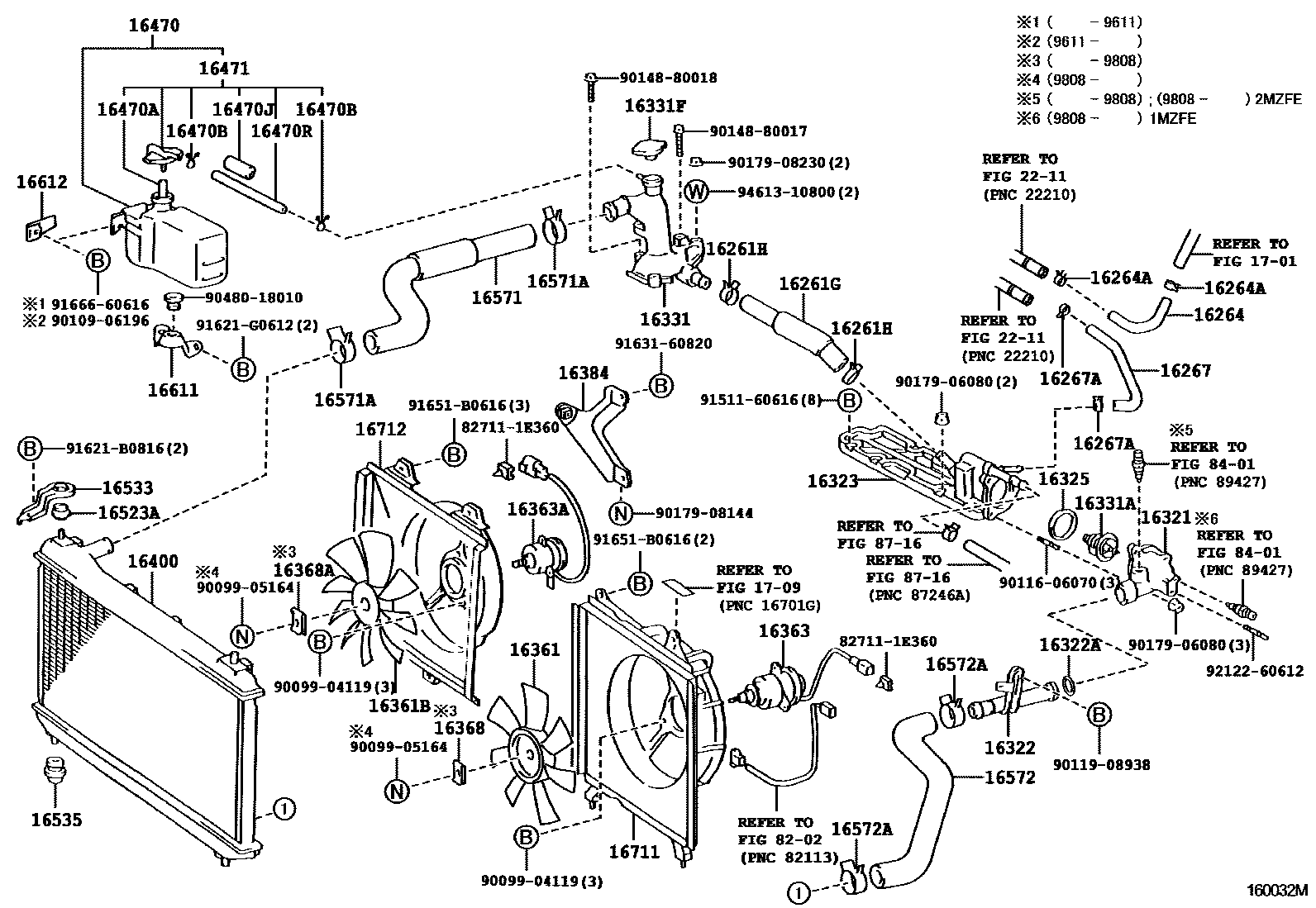

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
sub90467-28007
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51300
16322PIPE, WATER INLET
16322ARING, O(FOR WATER INLET)
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
sub90916-03129
16331FCAP SUB-ASSY(FOR WATER OUTLET)
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16368BRACKET, COOLING MOTOR
16368ABRACKET, COOLING MOTOR, NO.2
16384BRACKET, FAN BELT ADJUSTING BAR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37005
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-37005
16611BRACKET, RADIATOR RESERVE TANK
16612BRACKET, RADIATOR RESERVE TANK, NO.2
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
1701
1709
2211
8202
8401
8716
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904119
main90099-04119
9009905164
main90099-05164
9010906196
main90109-06196
9011606070
main90116-06070
9011908938
main90119-08938
9014880017
main90148-80017
9014880018
main90148-80018
9017906080
main90179-06080
9017908144
main90179-08144
9017908230
main90179-08230
9048018010
main90480-18010
9151160616
main91511-60616
91621B0816
main91621-B0816
91621G0612
main91621-G0612
9163160820
main91631-60820
91651B0616
main91651-B0616
9166660616
main91666-60616
9212260612
main92122-60612
9461310800
main94613-10800
65 parts on this diagram · 2 diagrams in section
