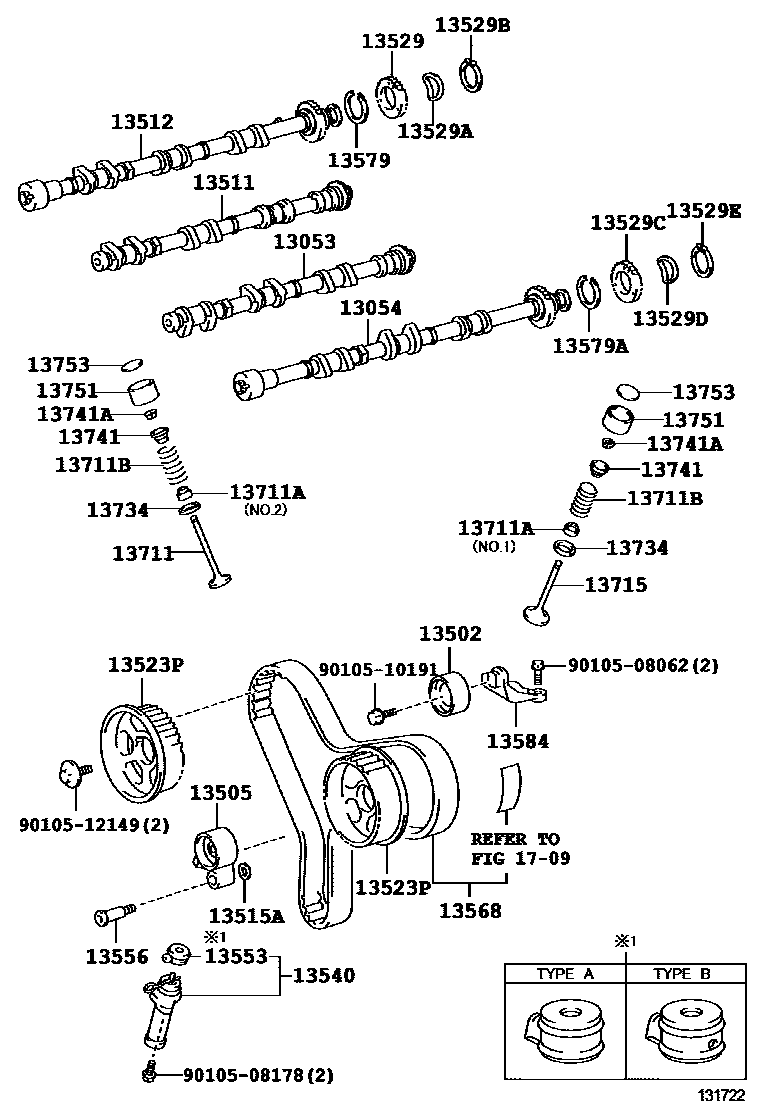

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13553COVER, CHAIN TENSIONER DUST
13556SHAFT, TIMING BELT IDLER
13579WASHER, CAMSHAFT TIMING GEAR BOLT
sub13579-50020
13579AWASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
sub13579-50020
13584BRACKET, TIMING BELT IDLER
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
sub13741-20021
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
1709
9010508062
main90105-08062
9010508178
main90105-08178
9010510191
main90105-10191
9010512149
main90105-12149
35 parts on this diagram · 2 diagrams in section
