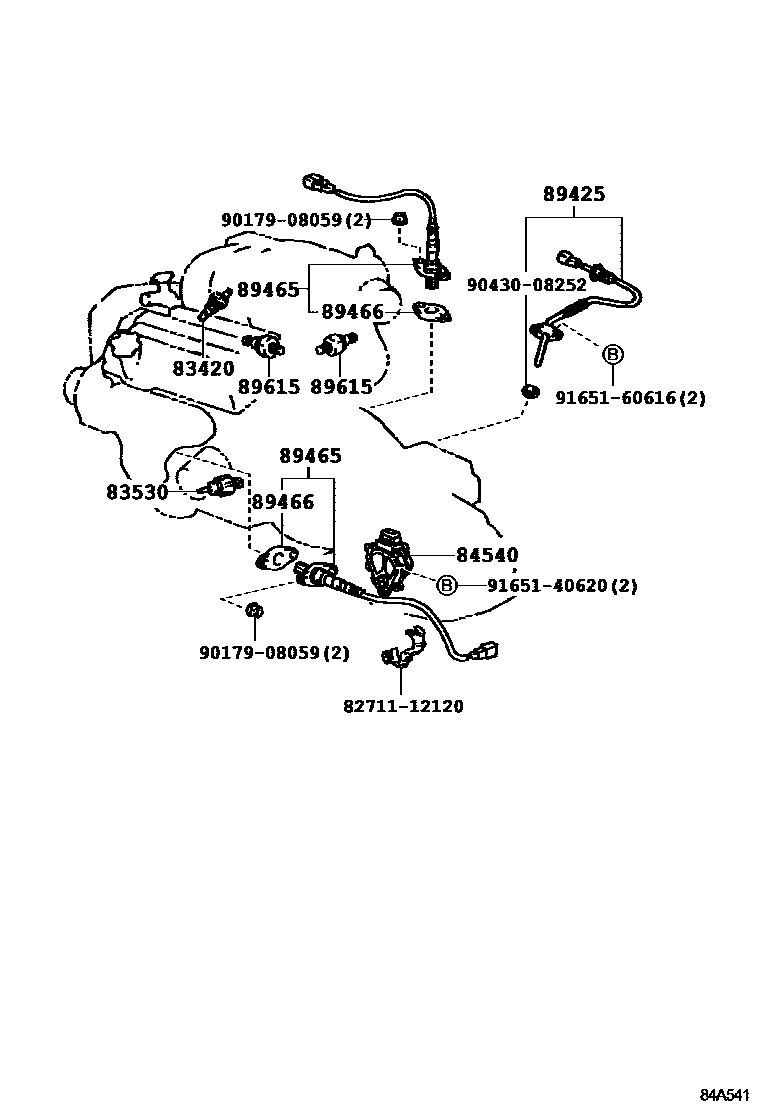

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1INSTRUMENT PANEL SWITCH 0004 1COWL RH 0005 1COWL LH 0006 1COMBINATION SWITCH 0007 1ROOF,FRONT DOOR & SEAT 0008 1FLOOR,REAR DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVCV10199110-199301

main83420-16030iVCV1#199301-199501

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iVCV1#199208-199408

main83530-30080iVCV10199110-199208

sub83530-60040

main83530-30090iVCV1#199408-199608

sub83530-60020

84540SWITCH ASSY, NEUTRAL START

main84540-20200iVCV1#199308-199608

main84540-32090iVCV10199110-199308

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-39365iVCV1#199110-199608

89465SENSOR, OXYGEN

main89465-39405×2iVCV10199110-199608

main89465-39555iVCV11199308-199408

89466GASKET, OXYGEN SENSOR

main89466-20020×2iVCV1#199110-199608

89615SENSOR, KNOCK CONTROL

main89615-33020×2iVCV1#199110-199608

sub89615-32030

9017908059

main90179-08059

9043008252

main90430-08252

9165140620

main91651-40620

9165160616

main91651-60616

11 parts on this diagram · 8 diagrams in section
