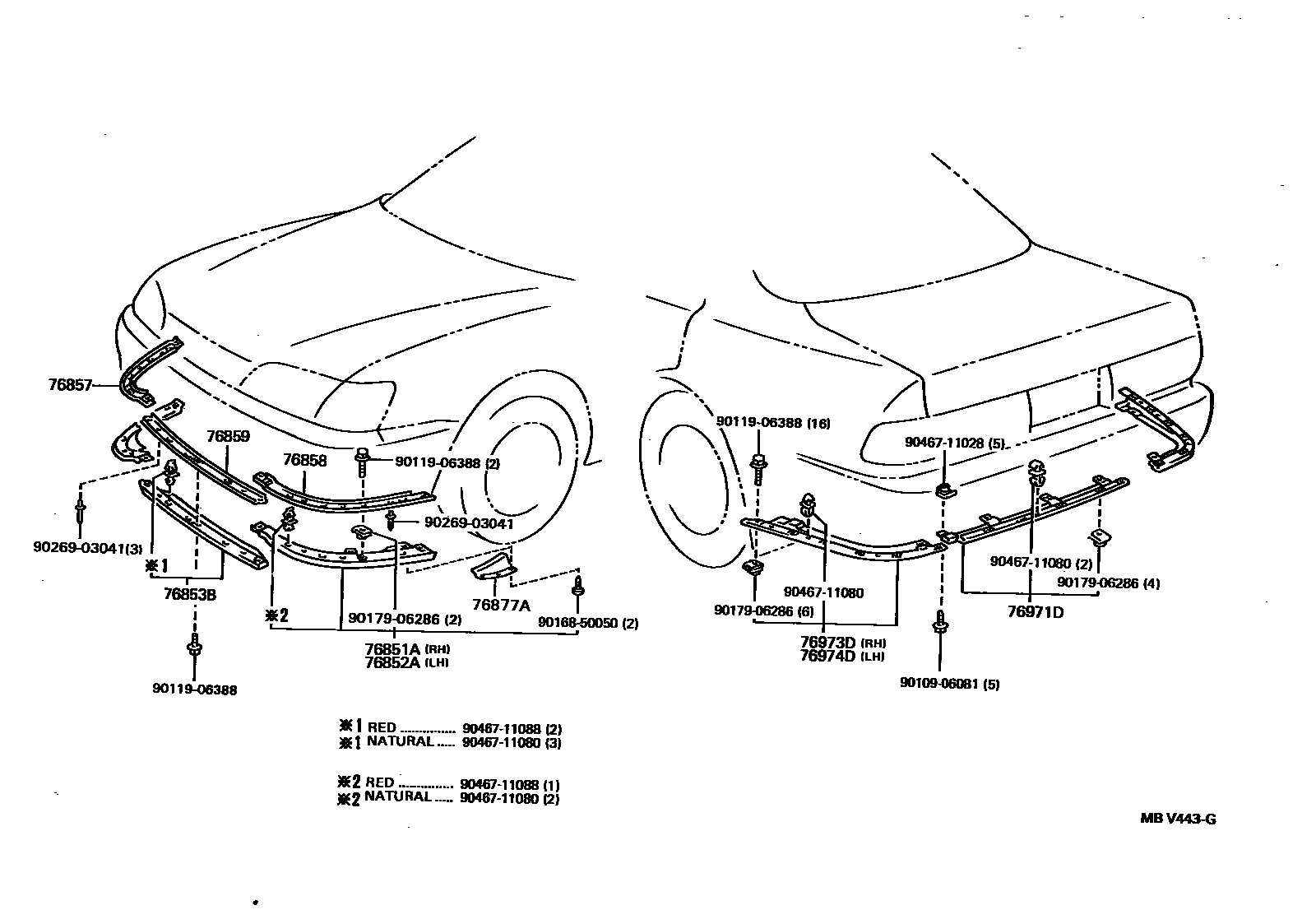

MUDGUARD & SPOILER
76851ACOVER, FRONT SPOILER, RH
76852ACOVER, FRONT SPOILER, LH
76853BCOVER, FRONT SPOILER, CENTER
76857RETAINER, FRONT SPOILER SIDE, RH
76858RETAINER, FRONT SPOILER SIDE, LH
76859RETAINER, FRONT SPOILER, UPPER NO.3
76971DCOVER, REAR UNDER
76973DCOVER, REAR UNDER SIDE, RH
76974DCOVER, REAR UNDER SIDE, LH
9010906081
main90109-06081
9011906388
main90119-06388
9016850050
main90168-50050
9017906286
main90179-06286
9026903041
main90269-03041
9046711028
main90467-11028
9046711080
main90467-11080
9046711088
main90467-11088
18 parts on this diagram · 2 diagrams in section
