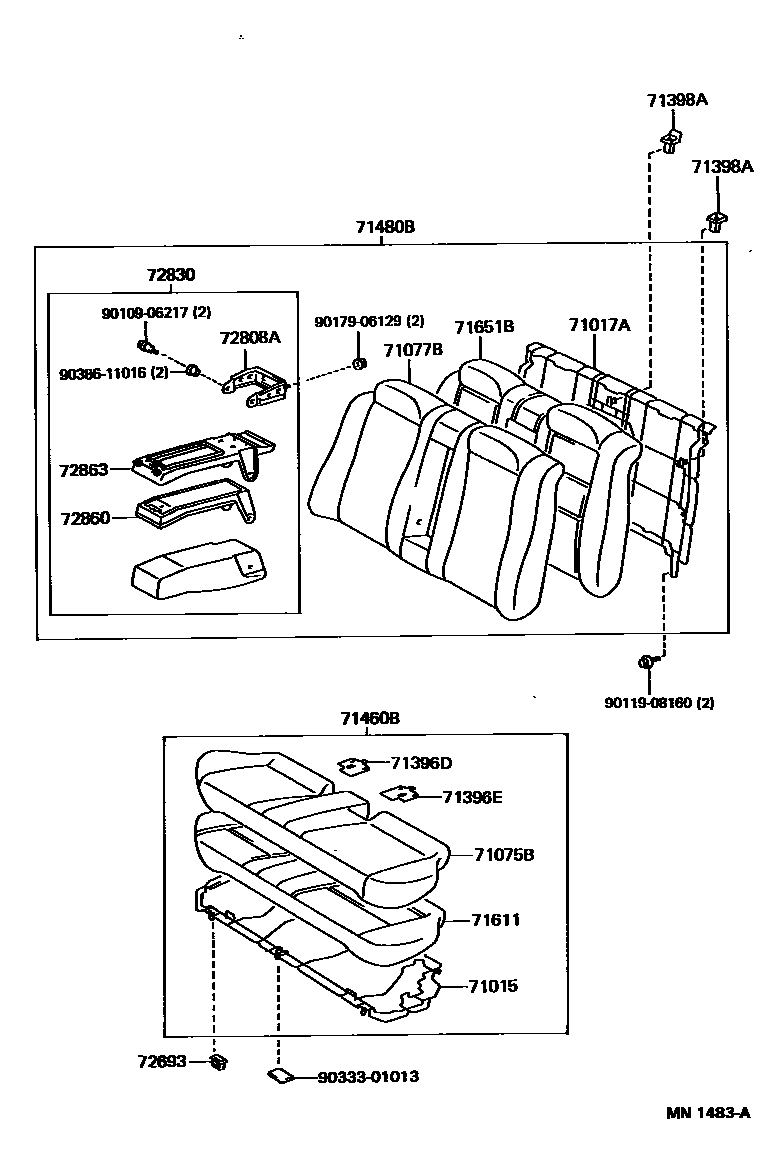

REAR SEAT & SEAT TRACK

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-33020iVCV1#199110-199408

main71015-33030iVCV1#199408-199608

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-33030iVCV1#199110-199408

sub71017-33060

main71017-33060iVCV1#199408-199608

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-33100-02iVCV10199110-199308

TAUPE,TRIM9#

main71075-33100-03iVCV10199110-199308

MEDIUM GRAY,TRIM2#

main71075-33110-01iVCV10199110-199310

sub71075-33111

main71075-33110-01iVCV10199301-199303

sub71075-33111

main71075-33110-02iVCV10199110-199310

sub71075-33111

main71075-33110-08iVCV10199110-199308

sub71075-33111

main71075-33110-E0iVCV10199308-199310

sub71075-33111

main71075-33111-C0iVCV10199310-199408

main71075-33111-E1iVCV10199310-199408

main71075-33111-K0iVCV10199310-199408

main71075-33130-B0iVCV1#199308-199408

DARK GRAY,TRIM2#

main71075-33130-K0iVCV1#199308-199408

MEDIUM TAUPE,TRIM9#

main71075-33170-C0iVCV1#199408-199608

BLACK,TRIM2#

main71075-33170-K0iVCV1#199408-199608

TAUPE,TRIM9#

main71075-33180-C0iVCV10199408-199608

main71075-33180-E0iVCV10199408-199608

main71075-33180-K0iVCV10199408-199608

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-33120-02iVCV10199110-199308

TAUPE,TRIM9#

main71077-33120-03iVCV10199110-199308

MEDIUM GRAY,TRIM2#

main71077-33130-01iVCV10199110-199310

sub71077-33131

main71077-33130-01iVCV10199301-199303

sub71077-33131

main71077-33130-02iVCV10199110-199310

sub71077-33131

main71077-33130-08iVCV10199110-199308

sub71077-33131

main71077-33130-E0iVCV10199308-199310

sub71077-33131

main71077-33131-C0iVCV10199310-199408

sub71077-33131

main71077-33131-C1iVCV10199408-199608

sub71077-33131

main71077-33131-E1iVCV10199310-199408

sub71077-33131

main71077-33131-E2iVCV10199408-199608

sub71077-33131

main71077-33131-K0iVCV10199310-199408

sub71077-33131

main71077-33131-K1iVCV10199408-199608

sub71077-33131

main71077-33240-B0iVCV1#199308-199408

DARK GRAY,TRIM2#

main71077-33240-K0iVCV1#199308-199408

MEDIUM TAUPE,TRIM9#

main71077-33280-C0iVCV1#199408-199608

BLACK,TRIM2#

main71077-33280-K0iVCV1#199408-199608

TAUPE,TRIM9#

71396DPLATE, REAR SEAT CUSHION COVER FINISH, RH

main71396-33010-B0iVCV1#199110-199408

DARK GRAY,TRIM2#

sub71396-33010

main71396-33010-B1iVCV1#199408-199608

DK.GRAY,TRIM2#

sub71396-33010

main71396-33010-K0iVCV1#199110-199408

MEDIUM TAUPE,TRIM9#

sub71396-33010

main71396-33010-K1iVCV1#199408-199608

TAUPE,TRIM9#

sub71396-33010

main71396-33030-A0iVCV10199110-199308

sub71396-33030

main71396-33030-C0iVCV10199301-199303

sub71396-33030

main71396-33030-C0iVCV10199110-199408

sub71396-33030

main71396-33030-C1iVCV10199408-199608

sub71396-33030

main71396-33030-E0iVCV10199308-199408

sub71396-33030

main71396-33030-E1iVCV10199408-199608

sub71396-33030

main71396-33030-K0iVCV10199110-199408

sub71396-33030

main71396-33030-K1iVCV10199408-199608

sub71396-33030

71396EPLATE, REAR SEAT CUSHION COVER FINISH, LH

main71396-33020-B0iVCV1#199110-199408

DARK GRAY,TRIM2#

sub71396-33020

main71396-33020-B1iVCV1#199408-199608

DK.GRAY,TRIM2#

sub71396-33020

main71396-33020-K0iVCV1#199110-199408

MEDIUM TAUPE,TRIM9#

sub71396-33020

main71396-33020-K1iVCV1#199408-199608

MD.TAUPE,TRIM9#

sub71396-33020

main71396-33040-A0iVCV10199110-199308

sub71396-33040

main71396-33040-C0iVCV10199301-199303

sub71396-33040

main71396-33040-C0iVCV10199110-199408

sub71396-33040

main71396-33040-C1iVCV10199408-199608

sub71396-33040

main71396-33040-E0iVCV10199308-199408

sub71396-33040

main71396-33040-E1iVCV10199408-199608

sub71396-33040

main71396-33040-K0iVCV10199110-199408

sub71396-33040

main71396-33040-K1iVCV10199408-199608

sub71396-33040

71398AHOLDER, REAR SEATBACK

main71398-32010iVCV1#199110-199608

RH,LH

main71398-32020iVCV1#199110-199608

CTR

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-33080-B0iVCV10199110-199308

***,DARK GRAY,TRIM2#

main71460-33080-K0iVCV10199110-199308

***,MEDIUM TAUPE,TRIM9#

main71460-33090-A0iVCV10199110-199308

main71460-33090-C0iVCV10199110-199310

main71460-33090-E0iVCV10199308-199310

main71460-33090-K0iVCV10199110-199310

main71460-33091-C1iVCV10199310-199408

main71460-33091-E1iVCV10199310-199408

main71460-33091-K1iVCV10199310-199408

main71460-33110-B0iVCV1#199308-199408

***,DARK GRAY,TRIM2#

main71460-33110-K0iVCV1#199308-199408

***,MEDIUM TAUPE,TRIM9#

main71460-33130-C0iVCV1#199408-199608

***,BLACK,TRIM2#

main71460-33130-K0iVCV1#199408-199608

***,TAUPE,TRIM9#

main71460-33140-C0iVCV10199408-199608

main71460-33140-E0iVCV10199408-199608

main71460-33140-K0iVCV10199408-199608

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-33110-B0iVCV10199110-199308

***,DARK GRAY,TRIM2#

main71480-33110-K0iVCV10199110-199308

***,MEDIUM TAUPE,TRIM9#

main71480-33120-A0iVCV10199110-199308

main71480-33120-C0iVCV10199110-199310

main71480-33120-E0iVCV10199308-199310

main71480-33120-K0iVCV10199110-199310

main71480-33121-C1iVCV10199310-199408

main71480-33121-E1iVCV10199310-199408

main71480-33121-K1iVCV10199310-199408

main71480-33180-B0iVCV1#199308-199408

***,DARK GRAY,TRIM2#

main71480-33180-K0iVCV1#199308-199408

***,MEDIUM TAUPE,TRIM9#

main71480-33200-C0iVCV1#199408-199608

***,BLACK,TRIM2#

main71480-33200-K0iVCV1#199408-199608

***,TAUPE,TRIM9#

main71480-33210-C0iVCV10199408-199608

main71480-33210-E0iVCV10199408-199608

main71480-33210-K0iVCV10199408-199608

71611PAD, REAR SEAT CUSHION

main71611-33040iVCV1#199110-199608

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-33050iVCV1#199110-199608

72693HOOK, REAR SEAT CUSHION LOCK

main72693-32020iVCV1#199110-199608

sub72693-20060

72808ABRACKET SUB-ASSY, SEAT CENTER ARMREST

main72883-33020iVCV1#199110-199608

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-33090-02iVCV10199110-199308

MEDIUM TAUPE,TRIM9#

sub72830-33120

main72830-33090-03iVCV10199110-199308

GRAY,TRIM2#

sub72830-33120

main72830-33100-01iVCV10199301-199303

sub72830-33110

main72830-33100-01iVCV10199110-199308

sub72830-33110

main72830-33100-02iVCV10199110-199308

sub72830-33110

main72830-33100-08iVCV10199110-199308

sub72830-33110

main72830-33110-C0iVCV10199308-199310

sub72830-33111

main72830-33110-E0iVCV10199308-199310

sub72830-33111

main72830-33111-A0iVCV10199408-199608

sub72830-33111

main72830-33111-C0iVCV10199310-199408

sub72830-33111

main72830-33111-C1iVCV10199408-199608

sub72830-33111

main72830-33111-E0iVCV10199310-199408

sub72830-33111

main72830-33111-K0iVCV10199310-199408

sub72830-33111

main72830-33111-K1iVCV10199408-199608

sub72830-33111

main72830-33120-B0iVCV1#199308-199408

GRAY,TRIM2#

main72830-33120-K0iVCV1#199308-199408

MEDIUM TAUPE,TRIM9#

main72830-33150-C0iVCV1#199408-199608

BLACK,TRIM2#

main72830-33150-K1iVCV1#199408-199608

TAUPE,TRIM9#

72860BOX ASSY, REAR SEAT CENTER ARMREST

main72860-33010-01iVCV1#199110-199408

BLACK,TRIM2#

sub72860-33010

main72860-33010-02iVCV1#199110-199408

MEDIUM TAUPE,TRIM9#

sub72860-33010

main72860-33010-08iVCV10199110-199308

IVORY,TRIM0#

sub72860-33010

main72860-33010-A0iVCV10199408-199608

IVORY,TRIM4#

sub72860-33010

main72860-33010-C0iVCV1#199408-199608

BLACK,TRIM2#

sub72860-33010

main72860-33010-E0iVCV1#199308-199408

OAK,TRIM4#

sub72860-33010

main72860-33010-K0iVCV1#199408-199608

MD.TAUPE,TRIM9#

sub72860-33010

72863BOX, REAR SEAT CENTER ARMREST

main72863-33010-01iVCV1#199110-199408

BLACK,TRIM2#

sub72863-33010

main72863-33010-02iVCV1#199110-199408

MEDIUM TAUPE,TRIM9#

sub72863-33010

main72863-33010-08iVCV10199110-199308

IVORY,TRIM0#

sub72863-33010

main72863-33010-A0iVCV10199408-199608

IVORY,TRIM4#

sub72863-33010

main72863-33010-C0iVCV1#199408-199608

BLACK,TRIM2#

sub72863-33010

main72863-33010-E0iVCV1#199308-199408

OAK,TRIM4#

sub72863-33010

main72863-33010-K0iVCV1#199408-199608

MD.TAUPE,TRIM9#

sub72863-33010

9010906217

main90109-06217

9011908160

main90119-08160

9017906129

main90179-06129

9033301013

main90333-01013

9038611016

main90386-11016

21 parts on this diagram · 1 diagram in section
