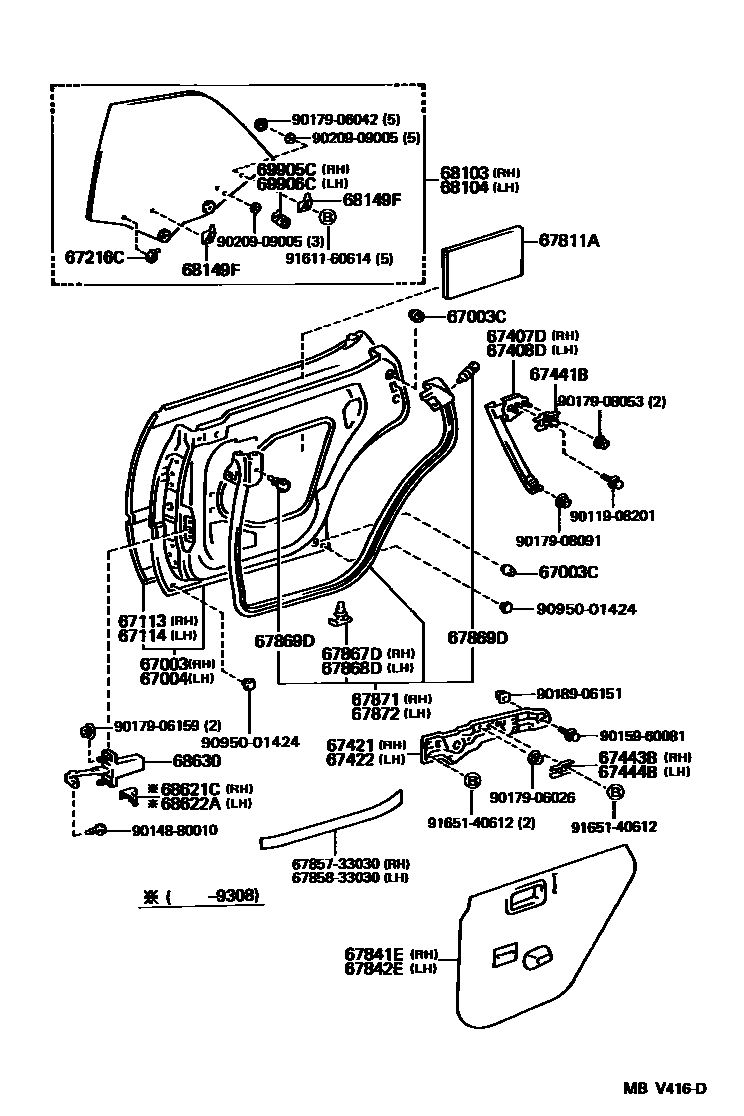

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-33020iVCV1#199110-199608

67003CCUSHION, REAR DOOR PANEL

main90541-09069iVCV1#199110-199608

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-33020iVCV1#199110-199608

67113PANEL, REAR DOOR, OUTER RH

main67113-33010iVCV1#199110-199608

67114PANEL, REAR DOOR, OUTER LH

main67114-33010iVCV1#199110-199608

67216CSTOPPER, REAR DOOR GLASS, UPPER NO.2

main67216-32020iVCV1#199110-199608

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-32070iVCV1#199110-199608

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-32070iVCV1#199110-199608

67421FRAME, REAR DOOR WINDOW, FRONT UPPER RH

main67407-33010iVCV1#199110-199608

67422FRAME, REAR DOOR WINDOW, FRONT UPPER LH

main67408-33010iVCV1#199110-199608

67441BPLATE, REAR DOOR FRONT GUIDE, UPPER

main67441-32020iVCV10199110-199203

sub67441-32030

main67441-32030iVCV1#199203-199608

67443BPLATE, REAR DOOR INSIDE PANEL, RH

main67443-32030iVCV1#199110-199608

67444BPLATE, REAR DOOR INSIDE PANEL, LH

main67443-32030iVCV1#199110-199608

67811APAD, REAR DOOR SILENCER

main67811-30050iVCV1#199203-199608

main67811-33010iVCV10199110-199203

sub67811-30050

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-33010iVCV1#199110-199608

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-33010iVCV1#199110-199608

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iVCV1#199505-199608

main67867-20160iVCV1#199203-199505

sub67867-12150

main67868-32040iVCV10199110-199203

sub67867-20160

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iVCV1#199505-199608

main67867-20160iVCV1#199308-199505

sub67867-12150

main67868-32040iVCV10199110-199308

sub67867-20160

67869DCLIP, DOOR WEATHERSTRIP

main67869-30020iVCV1#199110-199608

main67869-32010iVCV1#199110-199608

WHITE

main67869-32020iVCV10199110-199210

NATURAL

67871WEATHERSTRIP, REAR DOOR, RH

main67871-32100iVCV1#199210-199608

main67871-33010iVCV10199110-199210

sub67871-32100

67872WEATHERSTRIP, REAR DOOR, LH

main67872-32100iVCV1#199210-199608

main67872-33010iVCV10199110-199210

sub67872-32100

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-32150iVCV1#199110-199608

main68103-32160iVCV1#199110-199608

sub68103-32150

main68103-33040iVCV11199504-199507

main68103-33040iVCV11199508-199608

2.5 LEXTER

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-32150iVCV1#199110-199608

main68104-32160iVCV10199110-199608

sub68104-32150

main68104-33040iVCV11199508-199608

2.5 LEXTER

main68104-33040iVCV11199504-199507

68149FSTABILIZER, DOOR GLASS MALE

main68149-20010iVCV1#199110-199608

68621CCOVER, REAR DOOR CHECK, RH

main68621-32010iVCV10199110-199308

sub68621-30020

68622ACOVER, REAR DOOR CHECK, LH

main68622-32010iVCV10199110-199308

sub68622-30020

68630CHECK ASSY, REAR DOOR

main68630-32060iVCV10199110-199308

sub68630-32100

main68630-32070iVCV1#199308-199608

main68640-32010iVCV1#199308-199608

main68640-32030iVCV10199110-199308

sub68640-32060

69905CBRACKET SUB-ASSY, REAR DOOR GLASS, RH

main69905-32040iVCV1#199110-199608

69906CBRACKET SUB-ASSY, REAR DOOR GLASS, LH

main69906-32030iVCV1#199110-199608

6785733030COVER, FRONT DOOR SERVICE HOLE, NO.1

main67857-33030

6785833030COVER, FRONT DOOR HINGE SERVICE HOLE, NO.2

main67858-33030

9011908201

main90119-08201

9014880010

main90148-80010

9015960081

main90159-60081

9017906026

main90179-06026

9017906042

main90179-06042

9017906159

main90179-06159

9017908053

main90179-08053

9017908091

main90179-08091

9018906151

main90189-06151

9020909005

main90209-09005

9095001424

main90950-01424

9161160614

main91611-60614

9165140612

main91651-40612

44 parts on this diagram · 2 diagrams in section
