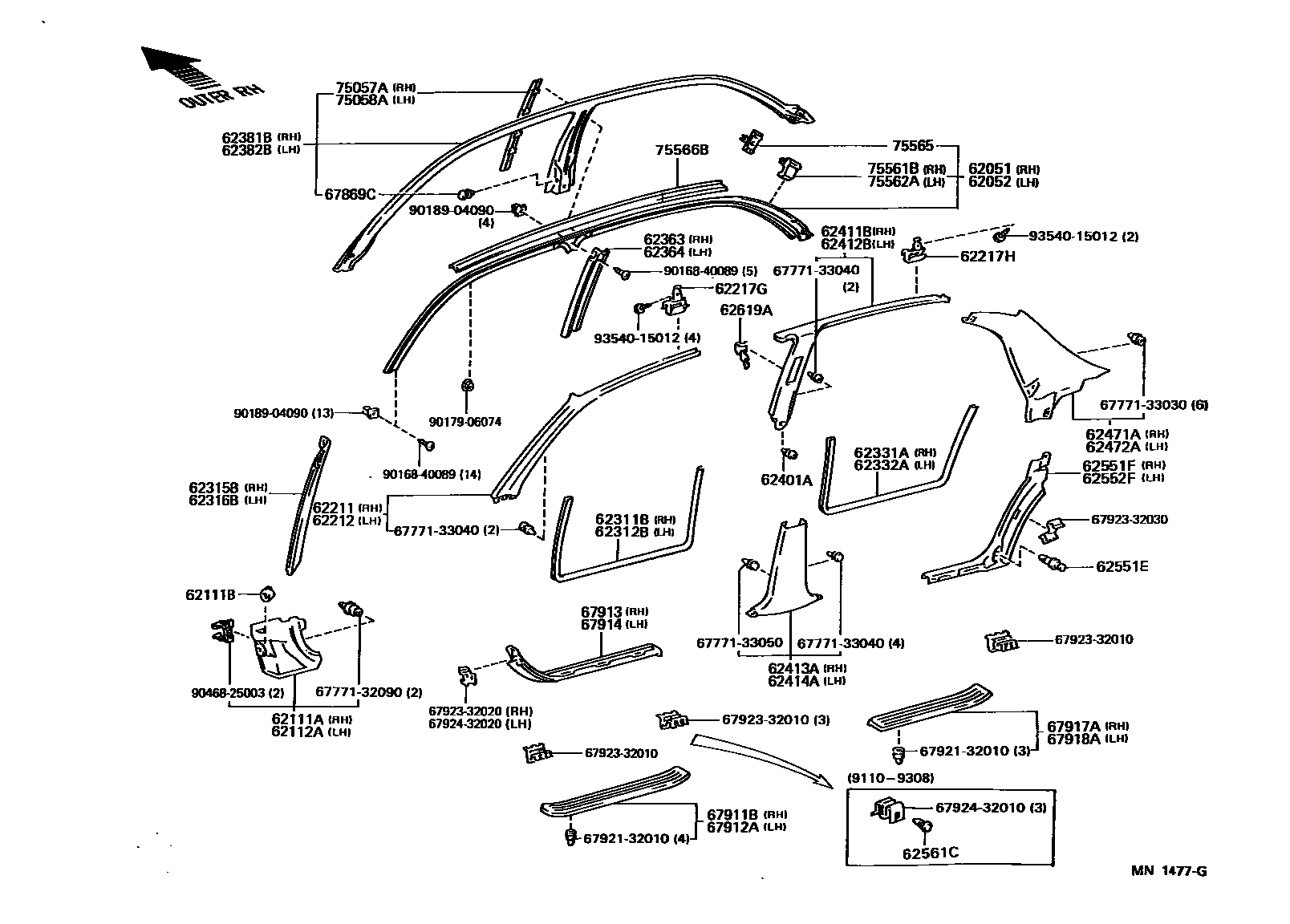

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62051RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, FRONT RH

main62051-33010iVCV1#199110-199608

main62051-33020iVCV1#199110-199608

62052RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, FRONT LH

main62052-33010iVCV1#199110-199608

main62052-33020iVCV1#199110-199608

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-33030-01iVCV1#199110-199408

BLACK,TRIM2#

main62101-33030-02iVCV1#199110-199408

MEDIUM TAUPE,TRIM9#

main62101-33030-08iVCV10199110-199308

IVORY,TRIM0#

main62101-33030-C0iVCV1#199408-199608

BLACK,TRIM2#

main62101-33030-E0iVCV1#199308-199408

MEDIUM OAK,TRIM4#

main62101-33030-E1iVCV10199408-199608

MD.OAK,TRIM4#

main62101-33030-K1iVCV1#199408-199608

MD.TAUPE,TRIM9#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06158-C0×2iVCV11199408-199608

BLACK,TRIM2#,4#,9#

main90467-08161×2iVCV10199110-199305

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-33060-A0iVCV10199110-199308

IVORY,TRIM0#

main62102-33060-C0iVCV1#199110-199408

BLACK,TRIM2#

main62102-33060-C1iVCV1#199408-199608

BLACK,TRIM2#

main62102-33060-E0iVCV1#199308-199408

MEDIUM OAK,TRIM4#

main62102-33060-E1iVCV10199408-199608

MD.OAK,TRIM4#

main62102-33060-K0iVCV1#199110-199408

MEDIUM TAUPE,TRIM9#

main62102-33060-K1iVCV1#199408-199608

MD.TAUPE,TRIM9#

62211GARNISH, FRONT PILLAR, RH

main62210-33020-01iVCV1#199110-199408

BLACK,TRIM2#

main62210-33020-02iVCV1#199110-199408

TAUPE,TRIM9#

main62210-33020-05iVCV10199110-199308

GREIGE,TRIM0#

main62210-33020-22iVCV1#199408-199608

BLACK,TRIM2#

main62210-33020-E0iVCV10199408-199608

OAK,TRIM4#

main62210-33020-K0iVCV1#199408-199608

TAUPE,TRIM9#

62212GARNISH, FRONT PILLAR, LH

main62220-33020-01iVCV1#199110-199408

BLACK,TRIM2#

main62220-33020-02iVCV1#199110-199408

TAUPE,TRIM9#

main62220-33020-05iVCV10199110-199308

GREIGE,TRIM0#

main62220-33020-22iVCV1#199408-199608

BLACK,TRIM2#

main62220-33020-E0iVCV1#199308-199408

OAK,TRIM4#

main62220-33020-K0iVCV1#199408-199608

TAUPE,TRIM9#

62217GCLIP, FRONT PILLAR GARNISH

main62217-33010×4iVCV1#199110-199608

62217HCLIP, CENTER PILLER GARNISH

main62217-33010×4iVCV1#199110-199608

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-32080iVCV1#199110-199608

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-32070iVCV1#199110-199608

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-32010-01iVCV1#199110-199408

BLACK,TRIM2#

main62315-32010-02iVCV10199110-199206

TAUPE,TRIM9#

main62315-32010-05iVCV10199110-199308

GREIGE,TRIM0#

main62315-32010-22iVCV1#199408-199608

BLACK,TRIM2#

main62315-32010-E0iVCV1#199308-199408

OAK,TRIM4#

main62315-32010-K0iVCV1#199206-199608

TAUPE,TRIM9#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-33010-01iVCV1#199110-199408

BLACK,TRIM2#

main62316-33010-02iVCV1#199110-199408

TAUPE,TRIM9#

main62316-33010-05iVCV10199110-199308

GREIGE,TRIM0#

main62316-33010-22iVCV1#199408-199608

BLACK,TRIM2#

main62316-33010-E0iVCV1#199308-199408

OAK,TRIM4#

main62316-33010-K0iVCV1#199408-199608

TAUPE,TRIM9#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-32020iVCV1#199110-199608

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-32010iVCV1#199110-199608

62363RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH

main62363-32020iVCV1#199110-199608

62364RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH

main62364-32020iVCV1#199110-199608

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-33010iVCV10199110-199208

main62381-33011iVCV1#199208-199608

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-33010iVCV10199110-199208

main62382-33011iVCV1#199208-199608

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-07041-01×2iVCV1#199308-199408

BLACK,TRIM2#,4#,9#

main90467-07041-C0×2iVCV11199408-199608

BLACK,TRIM2#,4#,9#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-33020-01iVCV1#199110-199408

BLACK,TRIM2#

main62410-33020-02iVCV1#199110-199408

TAUPE,TRIM9#

main62410-33020-05iVCV10199110-199308

GREIGE,TRIM0#

main62410-33020-22iVCV1#199408-199608

BLACK,TRIM2#

main62410-33020-E0iVCV10199408-199608

OAK,TRIM4#

main62410-33020-K0iVCV1#199408-199608

TAUPE,TRIM9#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-33020-01iVCV1#199110-199408

BLACK,TRIM2#

main62420-33020-02iVCV1#199110-199408

TAUPE,TRIM9#

main62420-33020-05iVCV10199110-199308

GREIGE,TRIM0#

main62420-33020-22iVCV1#199408-199608

BLACK,TRIM2#

main62420-33020-E0iVCV10199408-199608

OAK,TRIM4#

main62420-33020-K0iVCV1#199408-199608

TAUPE,TRIM9#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62041-33020-01iVCV10199110-199308

main62041-33020-02iVCV10199110-199308

main62041-33020-05iVCV10199110-199308

main62041-33030-C0iVCV10199308-199408

main62041-33030-C1iVCV10199408-199608

main62041-33030-E0iVCV10199308-199408

main62041-33030-E1iVCV10199408-199608

main62041-33030-K0iVCV10199308-199408

main62041-33030-K1iVCV10199408-199608

main62413-33020-01iVCV1#199110-199408

BLACK,TRIM2#

main62413-33020-02iVCV1#199110-199408

TAUPE,TRIM9#

main62413-33020-05iVCV10199110-199308

GREIGE,TRIM0#

main62413-33020-22iVCV1#199408-199608

BLACK,TRIM2#

main62413-33020-E0iVCV1#199308-199408

OAK,TRIM4#

main62413-33020-K0iVCV1#199408-199608

TAUPE,TRIM9#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62042-33020-01iVCV10199301-199303

main62042-33020-02iVCV10199110-199308

main62042-33020-05iVCV10199110-199308

main62042-33030-C0iVCV10199308-199408

main62042-33030-C1iVCV10199408-199608

main62042-33030-E0iVCV10199308-199408

main62042-33030-E1iVCV10199408-199608

main62042-33030-K0iVCV10199308-199408

main62042-33030-K1iVCV10199408-199608

main62414-33020-01iVCV1#199110-199408

BLACK,TRIM2#

main62414-33020-02iVCV1#199110-199408

TAUPE,TRIM9#

main62414-33020-05iVCV10199110-199308

GREIGE,TRIM0#

main62414-33020-22iVCV1#199408-199608

BLACK,TRIM2#

main62414-33020-E0iVCV1#199308-199408

OAK,TRIM4#

main62414-33020-K0iVCV1#199408-199608

TAUPE,TRIM9#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-33040-01iVCV1#199110-199408

BLACK,TRIM2#

main62470-33040-02iVCV1#199110-199408

TAUPE,TRIM9#

main62470-33040-05iVCV10199110-199308

GREIGE,TRIM0#

main62470-33040-22iVCV1#199408-199608

BLACK,TRIM2#

main62470-33040-E0iVCV1#199308-199408

OAK,TRIM4#

main62470-33040-K0iVCV1#199408-199608

TAUPE,TRIM9#

62472AGARNISH, ROOF SIDE, INNER LH

main62480-33040-01iVCV1#199110-199408

BLACK,TRIM2#

main62480-33040-02iVCV1#199110-199408

TAUPE,TRIM9#

main62480-33040-05iVCV10199110-199308

GREIGE,TRIM0#

main62480-33040-22iVCV1#199408-199608

BLACK,TRIM2#

main62480-33040-E0iVCV1#199308-199408

OAK,TRIM4#

main62480-33040-K0iVCV1#199408-199608

TAUPE,TRIM9#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-07108×4iVCV1#199110-199608

62551FGARNISH, REAR SEAT SIDE, RH

main62551-32060-01iVCV1#199110-199408

BLACK,TRIM2#

main62551-32060-02iVCV10199110-199206

TAUPE,TRIM9#

main62551-32060-05iVCV10199110-199308

GREIGE,TRIM0#

main62551-32060-22iVCV1#199408-199608

BLACK,TRIM2#

main62551-32060-E0iVCV1#199308-199408

OAK,TRIM4#

main62551-32060-K0iVCV1#199206-199608

TAUPE,TRIM9#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-32060-01iVCV1#199110-199408

BLACK,TRIM2#

main62552-32060-02iVCV10199110-199206

TAUPE,TRIM9#

main62552-32060-05iVCV10199110-199308

GREIGE,TRIM0#

main62552-32060-22iVCV1#199408-199608

BLACK,TRIM2#

main62552-32060-E0iVCV1#199308-199408

OAK,TRIM4#

main62552-32060-K0iVCV1#199206-199608

TAUPE,TRIM9#

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-11021-01×6iVCV10199110-199308

BLACK,TRIM0#,2#,9#

sub90467-11068

62619APLATE, SIDE TRIM SET

main62619-32010×4iVCV1#199110-199608

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-32020×12iVCV1#199110-199608

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-32020iVCV1#199110-199608

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-32020iVCV1#199110-199608

67913PLATE, FRONT DOOR SCUFF, RH

main67913-33010-01iVCV1#199110-199408

BLACK,TRIM2#

main67913-33010-02iVCV1#199110-199408

TAUPE,TRIM9#

main67913-33010-05iVCV10199110-199308

GREIGE,TRIM0#

main67913-33010-22iVCV1#199408-199608

BLACK,TRIM2#

main67913-33010-E0iVCV1#199308-199408

OAK,TRIM4#

main67913-33010-K0iVCV1#199408-199608

TAUPE,TRIM9#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-33010-01iVCV1#199110-199408

BLACK,TRIM2#

main67914-33010-02iVCV1#199110-199408

TAUPE,TRIM9#

main67914-33010-05iVCV10199110-199308

GREIGE,TRIM0#

main67914-33010-22iVCV1#199408-199608

BLACK,TRIM2#

main67914-33010-E0iVCV10199408-199608

OAK,TRIM4#

main67914-33010-K0iVCV1#199408-199608

TAUPE,TRIM9#

67917APLATE, REAR DOOR SCUFF, RH

main67915-32020iVCV1#199110-199608

67918APLATE, REAR DOOR SCUFF, LH

main67916-32020iVCV1#199110-199608

75057AGARNISH SUB-ASSY, CENTER PILLAR, OUTER RH

main75057-32010iVCV1#199110-199608

75058AGARNISH SUB-ASSY, CENTER PILLAR, OUTER LH

main75058-32010iVCV1#199110-199608

75561BCLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-32010iVCV1#199110-199608

75562ACLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-32020iVCV1#199110-199608

75565PROTECTOR, ROOF SIDE GARNISH, NO.1

main75565-32010×2iVCV1#199110-199608

75566BSEAL, ROOF DRIP SIDE FINISH MOULDING, FRONT

main75566-32010×2iVCV1#199110-199408

6777132090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32090

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

6777133040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33040

6777133050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33050

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

6792332010CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-32010

6792332020CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-32020

6792332030CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-32030

6792432010CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-32010

6792432020CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-32020

9016840089

main90168-40089

9017906074

main90179-06074

9018904090

main90189-04090

9046825003

main90468-25003

9354015012

main93540-15012

59 parts on this diagram · 1 diagram in section
