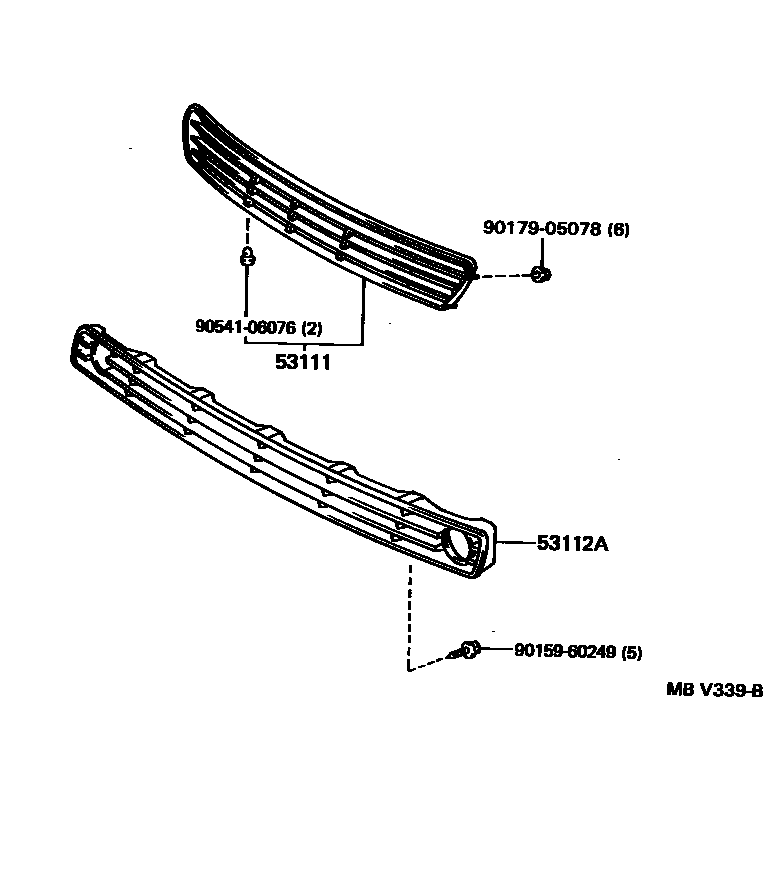

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53101-33010-01iVCV1#199110-199408

BLACK,202

main53101-33010-02iVCV10199110-199308

DARK MAUVE MICA M,3K1

main53101-33010-05iVCV10199110-199308

BEIGE MICA,4J1

main53101-33010-07iVCV1#199110-199408

DARK GREEN MICA,6M1

main53101-33010-08iVCV10199301-199303

main53101-33010-12iVCV10199110-199308

RED MICA,3K3

main53101-33010-22iVCV1#199110-199408

LT GRAYISH ROSE M OP,3K7

main53101-33010-E0iVCV1#199308-199408

BEIGE ME,4M9

main53101-33010-J0iVCV1#199308-199408

DARK BLUE M.M,8K0

main53101-33030-A0iVCV11199508-199608

2.5 LEXTER,SU.WHITE PM,051

main53101-33030-B0iVCV11199508-199608

2.5 LEXTER,SUPER SILVER 3,176

main53101-33030-C0iVCV1#199408-199608

BLACK,202

main53101-33030-D1iVCV1#199408-199608

LT.GRAISH ROSE OP,3K7

main53101-33030-E0iVCV1#199408-199608

BEIGE ME.,4M9

main53101-33030-G0iVCV1#199408-199508

DK GREEN MICA,6M1

main53101-33030-G1iVCV11199508-199608

2.5 LEXTER,DK.GREEN M.M.,6P2

main53101-33030-J0iVCV1#199408-199608

DK.BLUE M.M.,8K0

53112AGRILLE, RADIATOR, LOWER

main53112-33010iVCV11199408-199608

TYPE A

main53112-33020iVCV11199408-199608

TYPE B

9015960249

main90159-60249

9017905078

main90179-05078

9054106076

main90541-06076

5 parts on this diagram · 2 diagrams in section
