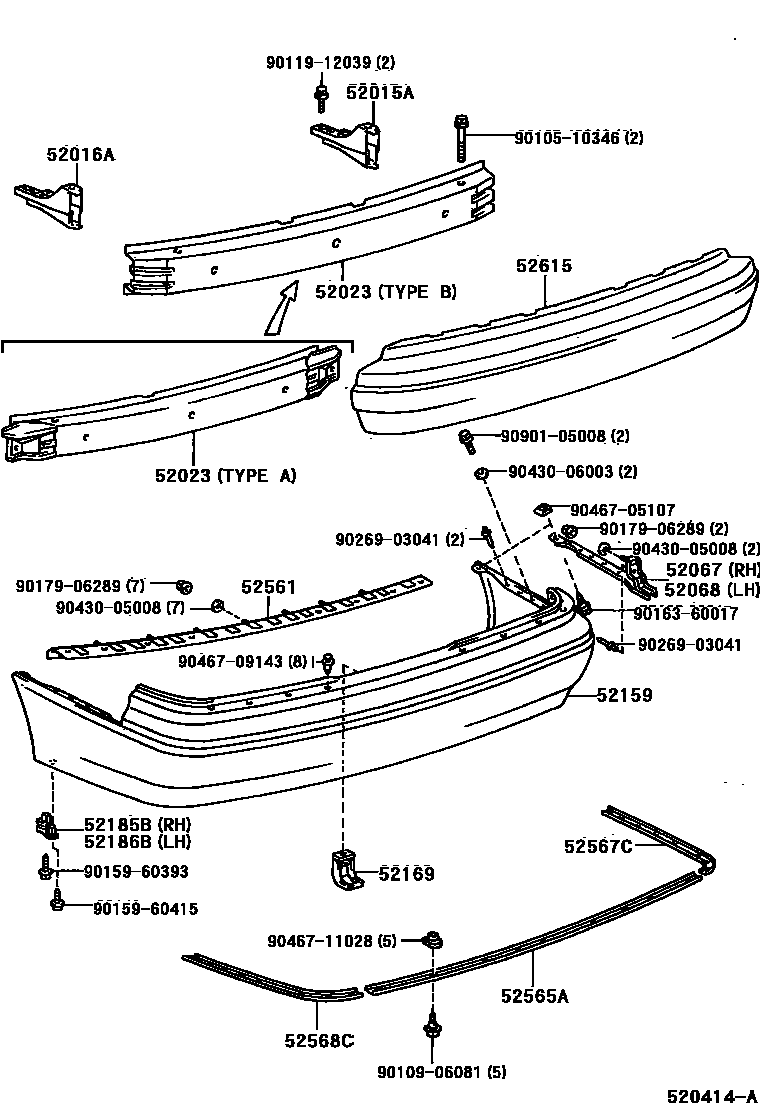

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
TYPE B
TYPE A
52067SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH
52068SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
SUPER WHITE PEARL MC,051
SU.WHITE PM,051
2.5 LEXTER,SUPER SILVER 3,176
BLACK TONING G,202
BLACK,202
DK MAUV MC.ME TONING,3K1
RED MC.TONING G,3K3
LT GRYISH ROSE ME OP,3K7
LT.GRAISH ROSE OP,3K7
BEIGE MC.ME TONING G,4J1
BEIGE ME TONING G,4M9
BEIGE ME.,4M9
DK GREEN MC TONING G,6M1
2.5 LEXTER,DK.GREEN M.M.,6P2
DK BLUE MM TONING G,8K0
DK.BLUE M.M.,8K0
52169PAD, REAR BUMPER
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52561RETAINER, REAR BUMPER, UPPER CENTER
52565ARETAINER, REAR BUMPER, LOWER
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
9010510346
main90105-10346
9010906081
main90109-06081
9011912039
main90119-12039
9015960393
main90159-60393
9015960415
main90159-60415
9016360017
main90163-60017
9017906289
main90179-06289
9026903041
main90269-03041
9043005008
main90430-05008
9043006003
main90430-06003
9046705107
main90467-05107
9046709143
main90467-09143
9046711028
main90467-11028
9090105008
main90901-05008
28 parts on this diagram · 1 diagram in section
