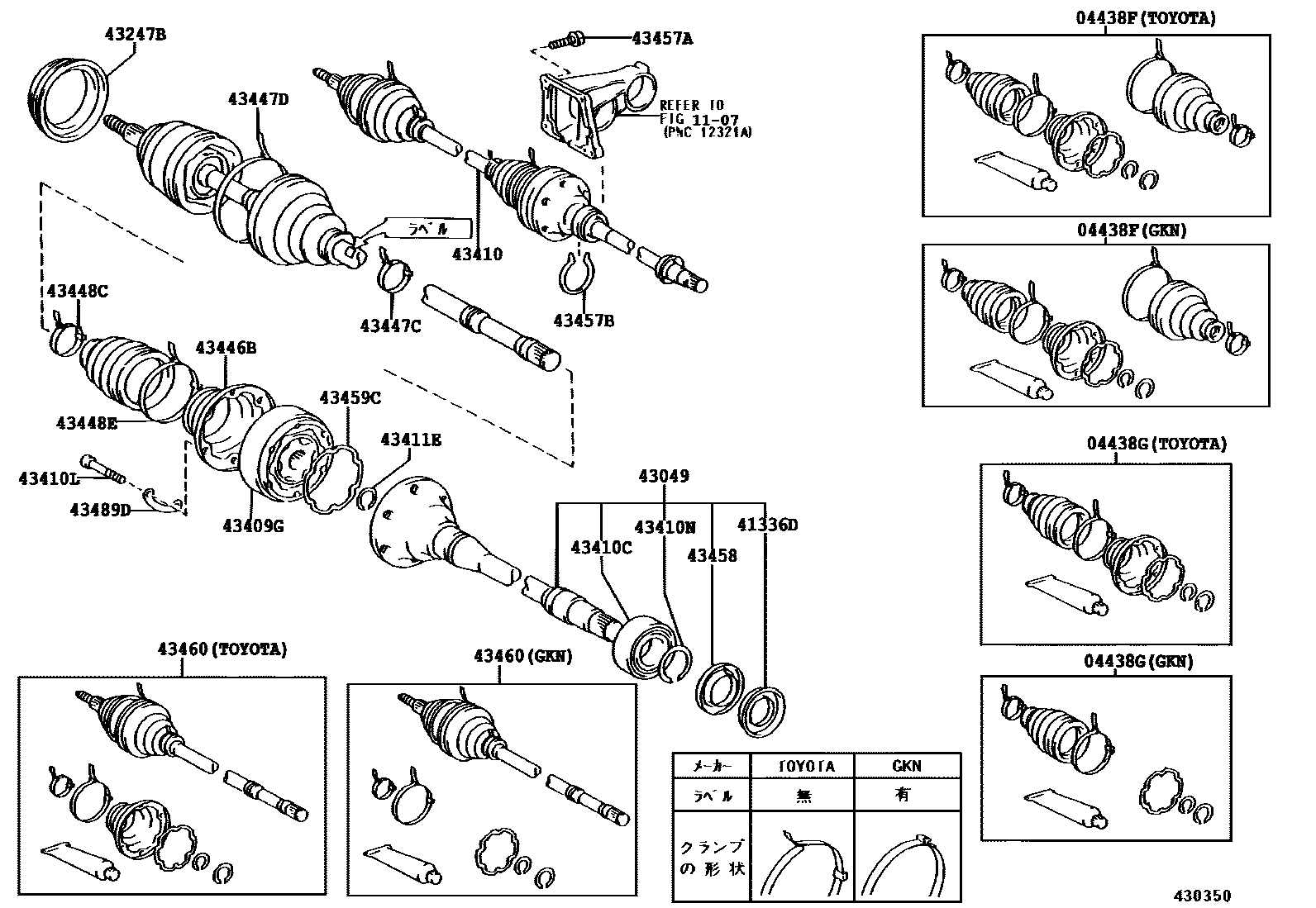

FRONT DRIVE SHAFT

0001 1 0002 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-06040iVCV1#199208-199408

sub04438-06062

main04438-06060iVCV10199408-199608

sub04438-06062

main04438-33020iVCV10199208-199210

main04438-33021iVCV1#199210-199408

sub04438-33022

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-06030iVCV11199408-199608

sub04438-06052

main04438-06050iVCV10199408-199608

sub04438-06052

main04438-33010iVCV10199110-199208

main04438-33011iVCV1#199210-199408

sub04438-33012

1107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-03030iVCV1#199208-199309

main41336-06020iVCV10199408-199608

main41336-12020iVCV10199110-199208

43049SHAFT SUB-ASSY, FRONT DRIVE FLANGE

main43049-06010iVCV1#199208-199309

main43049-06020iVCV10199408-199608

main43049-06030iVCV11199408-199608

main43049-33010iVCV11199408-199608

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-06010iVCV10199211-199308

W(*66)

main43247-06020iVCV10199408-199608

main43247-12010iVCV11199408-199608

main43247-33010iVCV11199408-199608

43409GJOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH

main43409-06010iVCV1#199208-199408

main43409-17010iVCV10199110-199208

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06030iVCV1#199208-199309

main43410-06040iVCV1#199208-199309

main43410-06070iVCV10199408-199608

sub43410-06170

main43410-06080iVCV10199408-199608

W(*66)

sub43410-06170

main43410-06090iVCV1#199309-199408

sub43410-06180

main43410-06100iVCV1#199309-199408

sub43410-06180

main43410-33030iVCV10199110-199208

sub43410-33130

main43410-33040iVCV10199110-199208

W(*66)

sub43410-33140

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90369-41001iVCV1#199110-199608

sub90363-41002

43410LBOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)

main90080-11034×6iVCV10199408-199608

main90110-10007×6iVCV11199408-199608

sub90110-10015

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iVCV10199408-199608

main90520-38015iVCV11199408-199608

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90080-52036iVCV10199408-199608

main90520-26028iVCV1#199208-199408

43446BCOVER, FRONT AXLE INBOARD JOINT, RH

main43446-03020iVCV10199408-199608

main43446-17010iVCV1#199208-199408

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16030iVCV10199110-199208

main90080-46084iVCV11199408-199608

main90080-46106iVCV1#199208-199309

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16070iVCV11199408-199608

main90080-46109iVCV10199408-199608

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16030iVCV1#199309-199408

main90080-46084iVCV10199408-199608

main90080-46106iVCV11199408-199608

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16100iVCV11199408-199608

main90080-46085iVCV1#199208-199309

main90080-46173iVCV1#199309-199408

main90949-01340iVCV10199208-199307

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iVCV1#199110-199608

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iVCV1#199110-199608

43458COVER, FRONT DRIVE SHAFT DUST

main43458-03020iVCV1#199208-199309

main43458-06020iVCV10199408-199608

main43458-12010iVCV1#199208-199408

43459CGASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43459-06010iVCV10199408-199608

main43459-17010iVCV1#199208-199408

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-09080iVCV11199408-199608

main43470-09090iVCV11199408-199608

main43470-09170iVCV10199408-199608

main43470-09180iVCV10199408-199608

W(*66)

main43470-39185iVCV10199208-199210

main43470-39186iVCV1#199210-199408

sub43470-39187

main43470-39205iVCV10199208-199210

main43470-39206iVCV11199408-199608

sub43470-39207

43489DWASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43489-03010×3iVCV10199408-199608

main43489-17010×3iVCV10199110-199208

23 parts on this diagram · 2 diagrams in section
