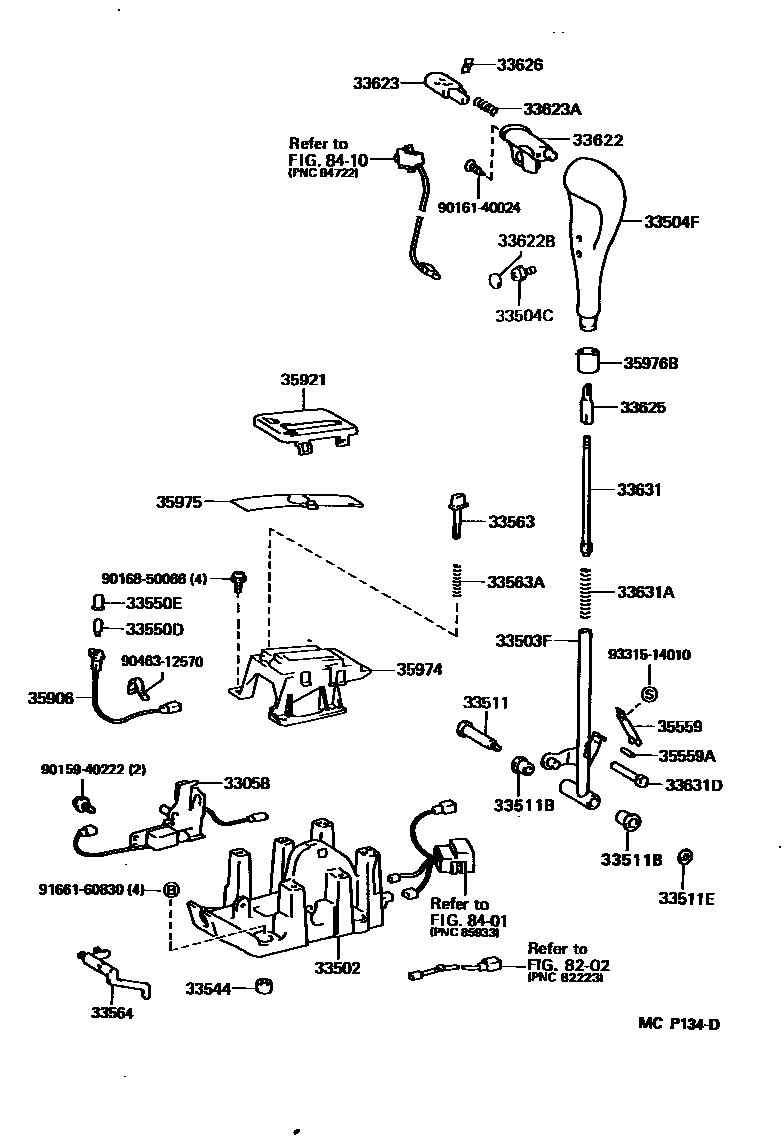

SHIFT LEVER & RETAINER

0001 1 0002 1

33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33058-33020iVCV1#199110-199608

33502PLATE SUB-ASSY, SHIFT LEVER

main33521-33020iVCV10199110-199210

main33521-33021iVCV1#199210-199608

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-33030iVCV10199110-199210

main33503-33021iVCV1#199210-199608

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40244×2iVCV1#199110-199608

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-33050-C0iVCV1#199110-199608

BLACK,TRIM2#

main33542-33050-E0iVCV10199203-199308

GREIGE,TRIM0#

main33542-33050-E1iVCV1#199308-199408

OAK,TRIM4#

main33542-33050-K0iVCV1#199110-199608

TAUPE,TRIM9#

main33542-33060-C0iVCV10199110-199608

main33542-33060-E0iVCV10199110-199308

main33542-33060-E1iVCV10199308-199608

main33542-33060-K0iVCV10199110-199608

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-12100iVCV1#199210-199608

sub33511-32070

main33511-33010iVCV10199110-199210

33511BBUSH (FOR CONTROL SHAFT)

main90386-09024×2iVCV1#199110-199608

33511ERING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT)

main90520-08001iVCV1#199110-199608

33544INSERT, SHIFT LEVER, NO.1

main33544-33010×4iVCV1#199110-199608

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iVCV10199110-199408

main99132-12034iVCV1#199110-199608

33550ECAP, POSITION INDICATOR LAMP

main90339-09004iVCV1#199110-199608

sub90339-09002

33563BUTTON, SHIFT LOCK RELEASE

main33563-33040iVCV1#199110-199608

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-04021iVCV1#199110-199608

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-33040iVCV1#199110-199608

33622COVER, SHIFT LEVER KNOB, NO.1

main33622-33060-C0iVCV1#199110-199608

BLACK,TRIM2#

main33622-33060-E0iVCV10199110-199308

GREIGE,TRIM0#

main33622-33060-E1iVCV1#199308-199408

OAK,TRIM4#

main33622-33060-K0iVCV1#199110-199608

TAUPE,TRIM9#

33622BPLUG, SHIFT LEVER KNOB

main33622-20050-C0×2iVCV10199110-199608

main33622-20050-E0×2iVCV10199110-199308

main33622-20050-E1×2iVCV10199308-199608

main33622-20050-K0×2iVCV10199110-199608

33623BUTTON, SHIFT LEVER KNOB

main33623-33040-C0iVCV1#199110-199608

BLACK,TRIM2#

main33623-33040-E0iVCV10199110-199308

GREIGE,TRIM0#

main33623-33040-E1iVCV10199408-199608

OAK,TRIM4#

main33623-33040-K0iVCV1#199110-199608

TAUPE,TRIM9#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-06060iVCV1#199110-199408

main90501-07009iVCV1#199408-199608

33625SLEEVE, SHIFT LEVER KNOB

main33625-33020iVCV1#199110-199608

33626STOPPER, SHIFT LEVER BUTTON

main33626-20010iVCV1#199110-199608

33631ROD, DETENT

main33631-33020iVCV1#199110-199608

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-07074iVCV1#199110-199608

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04008iVCV1#199110-199608

35559SPRING, MANUAL DETENT

main35559-33010iVCV1#199110-199608

35559APIN (FOR MANUAL DETENT SPRING)

main90249-02005iVCV1#199110-199608

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-20030iVCV1#199110-199608

sub35906-26030

35921PLATE, CONTROL POSITION INDICATOR

main35921-33060iVCV1#199110-199608

35974HOUSING, POSITION INDICATOR, LOWER

main35974-33040iVCV1#199110-199608

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-33020iVCV1#199110-199608

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-33010-05iVCV10199110-199308

GREIGE,GREIGE,TRIM0#

main35976-33010-C0iVCV1#199110-199608

BLACK,BLACK,TRIM2#

main35976-33010-E0iVCV1#199308-199408

OAK,OAK,TRIM4#

main35976-33010-K0iVCV1#199203-199608

TAUPE,TAUPE,TRIM9#

8202

8401

8410

9015940222

main90159-40222

9016140024

main90161-40024

9016850066

main90168-50066

9046312570

main90463-12570

9166160830

main91661-60830

9331514010

main93315-14010

39 parts on this diagram · 2 diagrams in section
