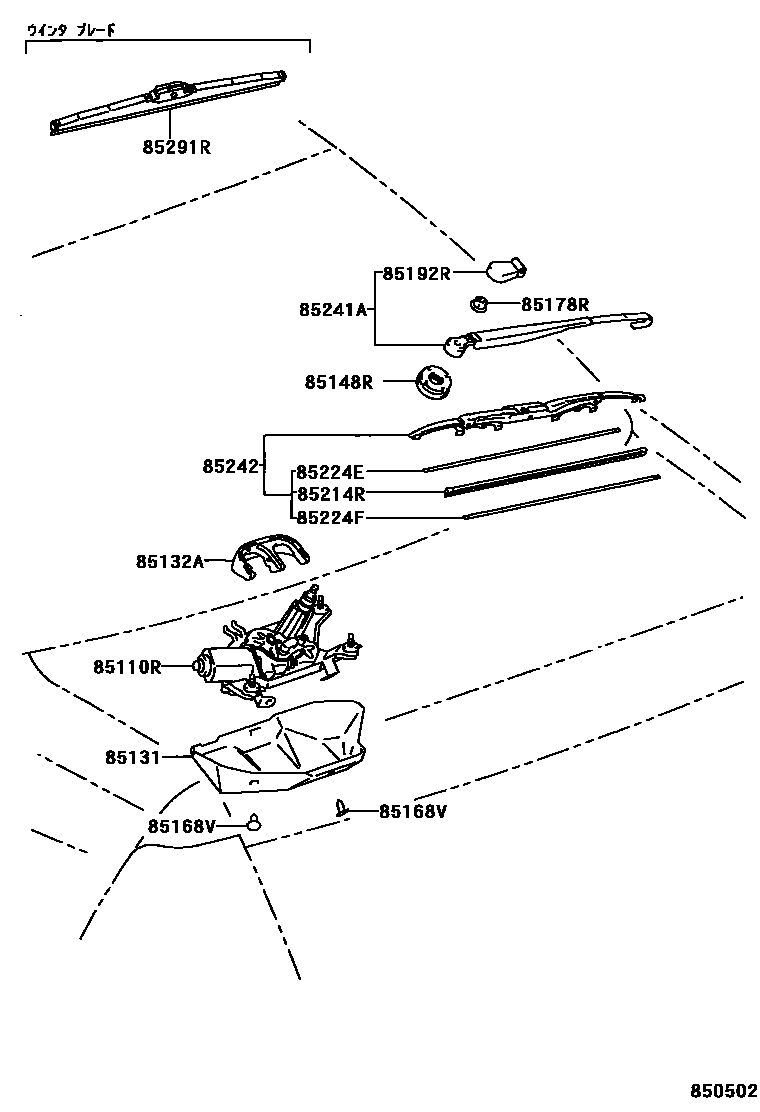

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-32330iAZV5#,SV5#,ZZV50..SED199806

main85130-32360iAZV5#,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S199806

main85130-32370iAZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S199806

85131COVER, REAR WIPER MOTOR

main85131-32300iAZV5#,SV5#,ZZV50..SED199806

main85131-32310iAZV5#,SV5#,ZZV50..WG199806

85132ACOVER, REAR WIPER SHAFT

main85132-32310iAZV5#,SV5#,ZZV50..WG199806

main85132-32320-A0iAZV5#,SV5#,ZZV50..SED199806

IVORY,TRIM0#

main85132-32320-B0iAZV5#,SV5#,ZZV50..SED200004

STONE,TRIM1#

main85132-32320-G0iSV5#,ZZV50..SED199806-200004

MIST GREEN,TRIM6#

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85133-12770iAZV5#,SV5#,ZZV50..SED199806

main85133-32280iAZV5#,SV5#,ZZV50..WG199806

85168VCLIP, WIPER LINK COVER

main90467-08186-C0×2iSV5#,ZZV50..SED199806-200004

BLACK,TRIM0#,6#

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAZV5#,SV5#,ZZV50199806

85192RCOVER, REAR WIPER ARM

main85192-13060iAZV5#,SV5#,ZZV50199806

85214RRUBBER, REAR WIPER

main85214-30280iAZV5#,SV5#,ZZV50..WG199806

main85214-32270iAZV5#,SV5#,ZZV50..SED199806

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-30460iAZV5#,SV5#,ZZV50..WG199806

main85224-3H070iAZV5#,SV5#,ZZV50..SED199806

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-30460iAZV5#,SV5#,ZZV50..WG199806

main85224-3H070iAZV5#,SV5#,ZZV50..SED199806

85241AARM, REAR WIPER

main85241-32050iAZV5#,SV5#,ZZV50..WG199806

main85241-32060iAZV5#,SV5#,ZZV50..SED199806

85242BLADE, RR WIPER

main85242-30040iAZV5#,SV5#,ZZV50..WG199806

main85242-32060iAZV5#,SV5#,ZZV50..SED199806

85291RBLADE,REAR WIPER, WINTER

main85291-60020iAZV5#,SV5#,ZZV50..SED199806

sub85291-33050

main85291-60030iAZV5#,SV5#,ZZV50..WG199806

sub85291-28120

13 parts on this diagram · 2 diagrams in section
