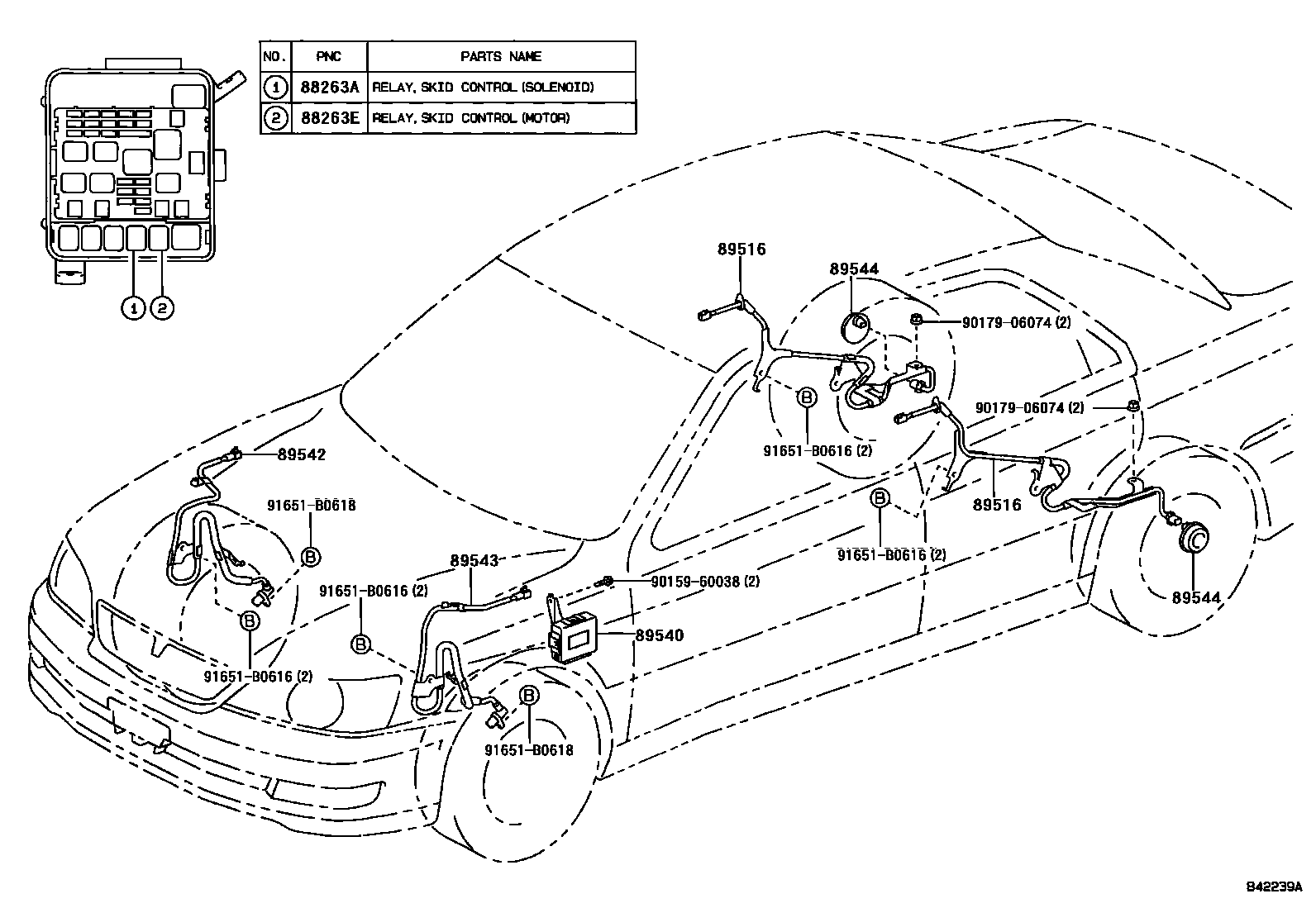

ABS & VSC

0001 1 0002 1 0003 1 0004 1

88263ARELAY, SKID CONTROL

main88263-32070iSV5#,ZZV50199806-200004

88263ERELAY, SKID CONTROL NO.2

main88263-32080iSV5#,ZZV50199806-200004

89516WIRE, SKID CONTROL SENSOR

main89516-32010iSV50,ZZV50199806-200004

main89516-32020iSV50,ZZV50199806-200004

main89516-32030iAZV50,SV50,ZZV50200004-200109

sub89516-32031

main89516-32031iAZV50,ZZV50200109

main89516-32040iAZV50,SV50,ZZV50200004-200109

sub89516-32041

main89516-32041iAZV50,ZZV50200109

89540COMPUTER ASSY, SKID CONTROL

main89540-32190iSV50,ZZV50199806-200004

main89540-32200iSV55199806-200004

89542SENSOR, SPEED, FRONT RH

main89542-32040iAZV5#,SV5#,ZZV50199806

89543SENSOR, SPEED, FRONT LH

main89543-32040iAZV5#,SV5#,ZZV50199806

89544SENSOR, SKID CONTROL

main89544-32010iSV50,ZZV50..SED199806-200004

sub89544-32040

main89544-32030iAZV50,ZZV50200301-200307

sub89544-32040

main89544-32030iAZV50,SV50,ZZV50..WG199806-200301

sub89544-32040

main89544-32040iAZV50,ZZV50200301-200307

main89544-32040iAZV50,SV50,ZZV50..SED200004-200301

9015960038

main90159-60038

9017906074

main90179-06074

91651B0616

main91651-B0616

91651B0618

main91651-B0618

11 parts on this diagram · 4 diagrams in section
