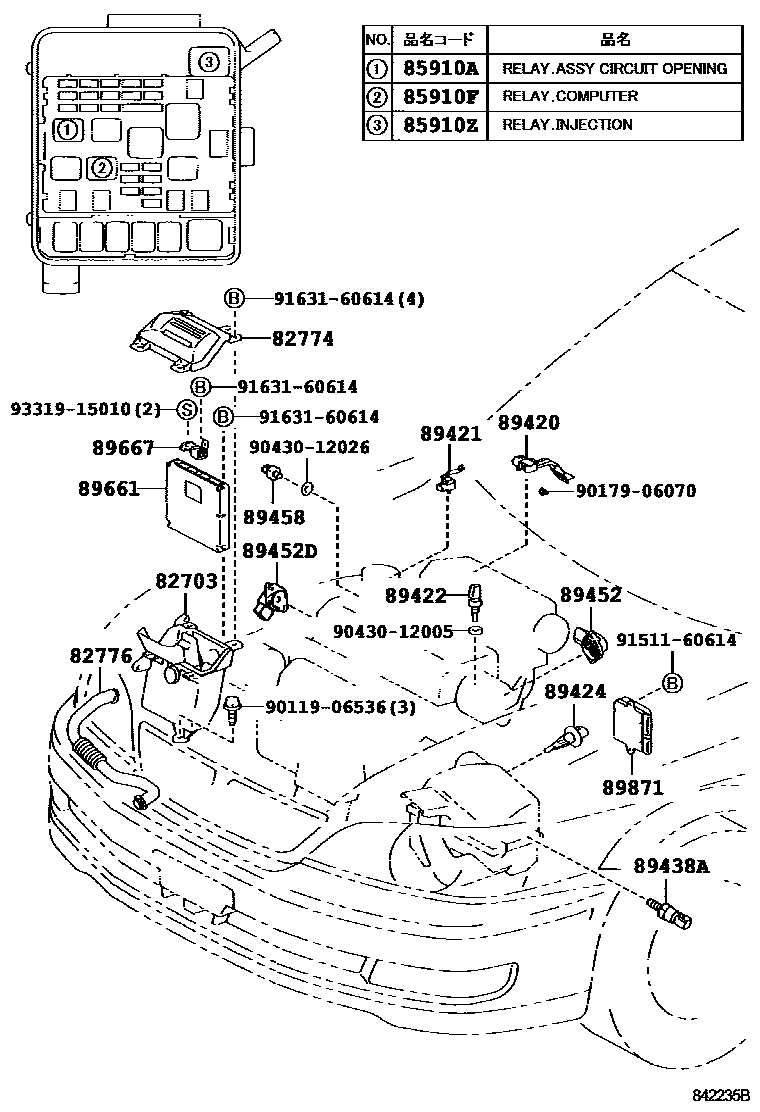

ELECTRONIC FUEL INJECTION SYSTEM
82774COVER, ENGINE ROOM ECU
82776DUCT, ENGINE ROOM ECU OUTLET
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89438ASWITCH, POWER STEERING OIL PRESSURE
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452DSENSOR, THROTTLE POSITION
89458SENSOR, FUEL PRESSURE
sub89458-22010
89667BRACKET, ENGINE CONTROL COMPUTER
9011906536
main90119-06536
9017906070
main90179-06070
9043012005
main90430-12005
9043012026
main90430-12026
9151160614
main91511-60614
9163160614
main91631-60614
9331915010
main93319-15010
24 parts on this diagram · 4 diagrams in section
