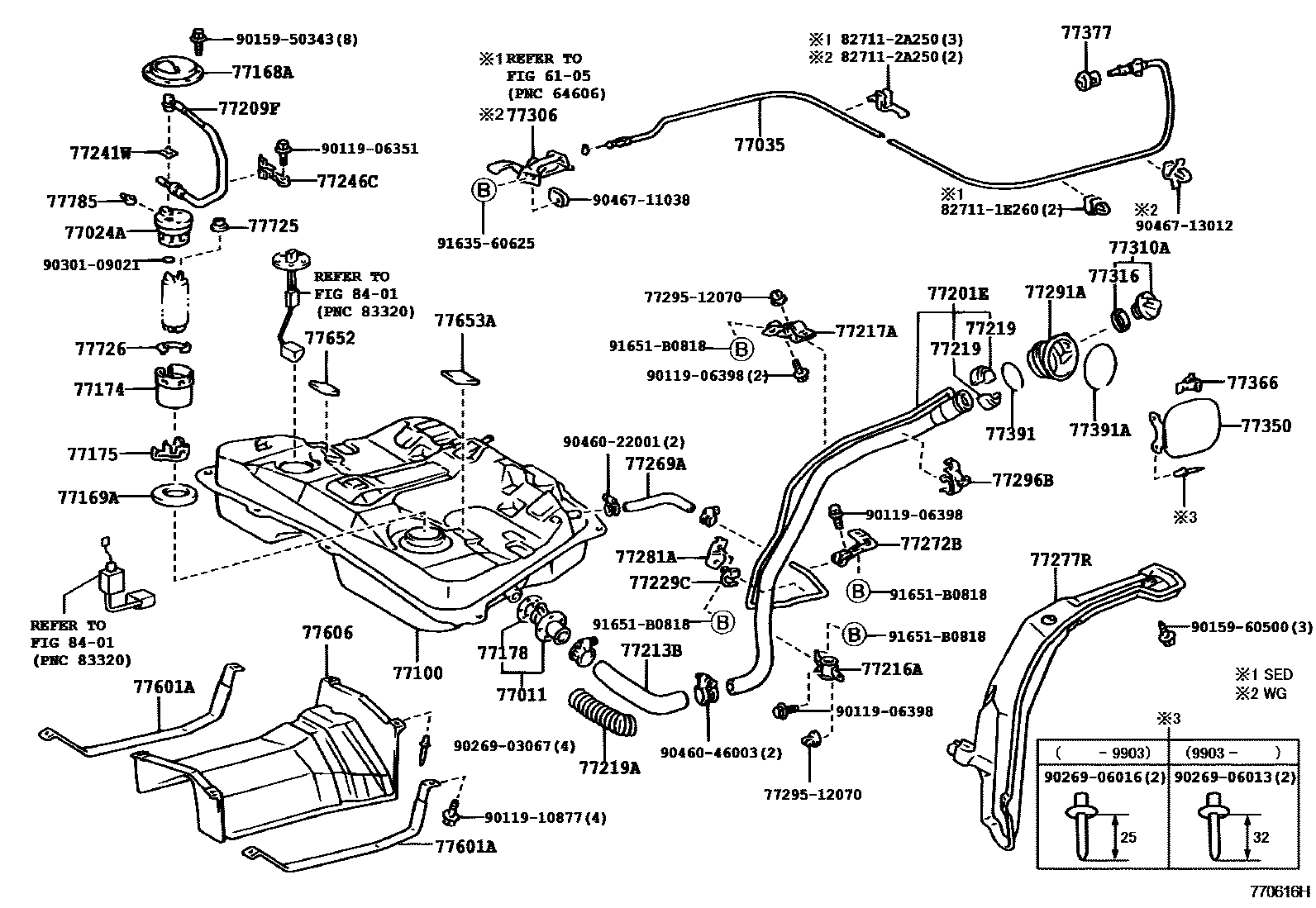

FUEL TANK & TUBE
6105
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77219COVER, FUEL TANK FILLER PIPE
77219ACOVER, FUEL TANK FILLER PIPE
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77246CSUPPORT, FUEL MAIN TUBE
77269AHOSE, FUEL TANK BREATHER
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
sub77296-32021
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
sub77601-20290
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
sub77606-32041
77652CUSHION, FUEL TANK, NO.1
77725CUSHION, FUEL FILTER, NO.1
77726CUSHION, FUEL FILTER, NO.2
77785HARNESS, FUEL PUMP
8401
7729512070SHIELD, FUEL FILLER PIPE
main77295-12070
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
827112A250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2A250
9011906351
main90119-06351
9011906398
main90119-06398
9011910877
main90119-10877
9015950343
main90159-50343
9015960500
main90159-60500
9026903067
main90269-03067
9026906013
main90269-06013
9026906016
main90269-06016
9030109021
main90301-09021
9046022001
main90460-22001
9046046003
main90460-46003
9046711038
main90467-11038
9046713012
main90467-13012
9163560625
main91635-60625
91651B0818
main91651-B0818
60 parts on this diagram · 8 diagrams in section
