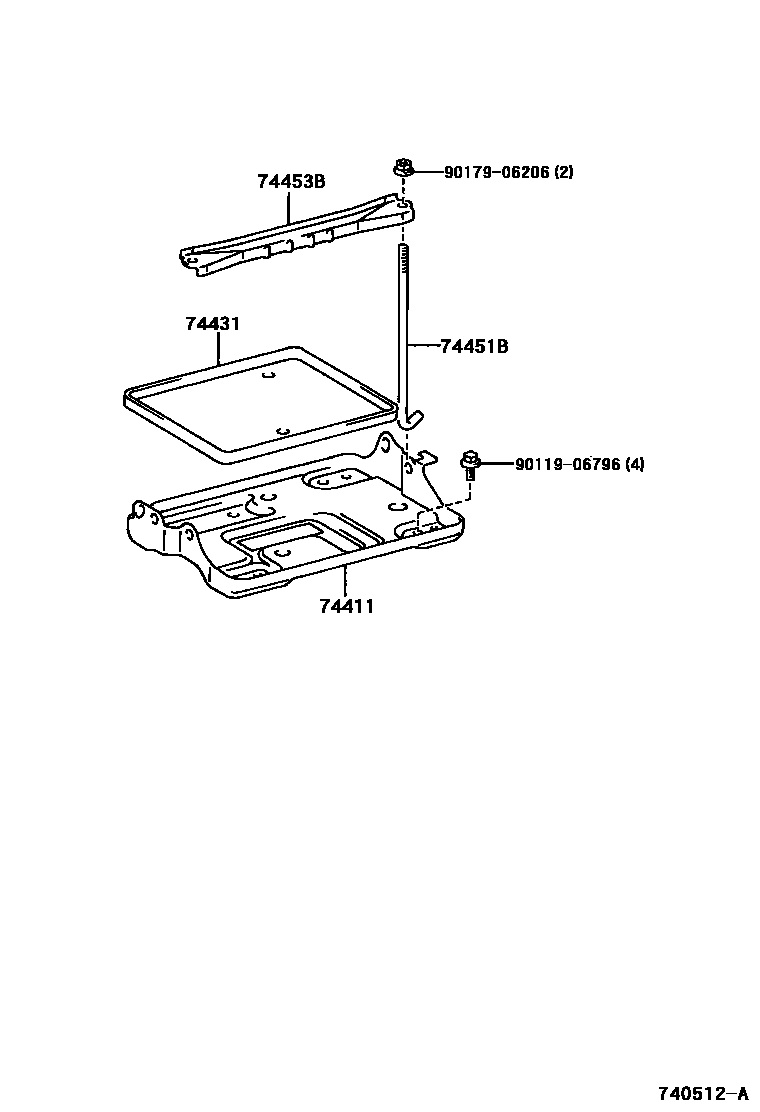

BATTERY CARRIER

Parts diagram

74411CARRIER, BATTERY

main74403-32070i199806

main74403-32080i199806

main74411-32010i199806

main74411-32020i199806

74431TRAY, BATTERY

main74431-14020i199806

main74431-14050i199806

74451BBOLT, BATTERY CLAMP

main74451-20060i199806

74453BBAR, BATTERY SET PLATE

main74453-32010i199806

main74453-32020i199806

9011906796

main90119-06796

9017906206

main90179-06206

6 parts on this diagram · 1 diagram in section
