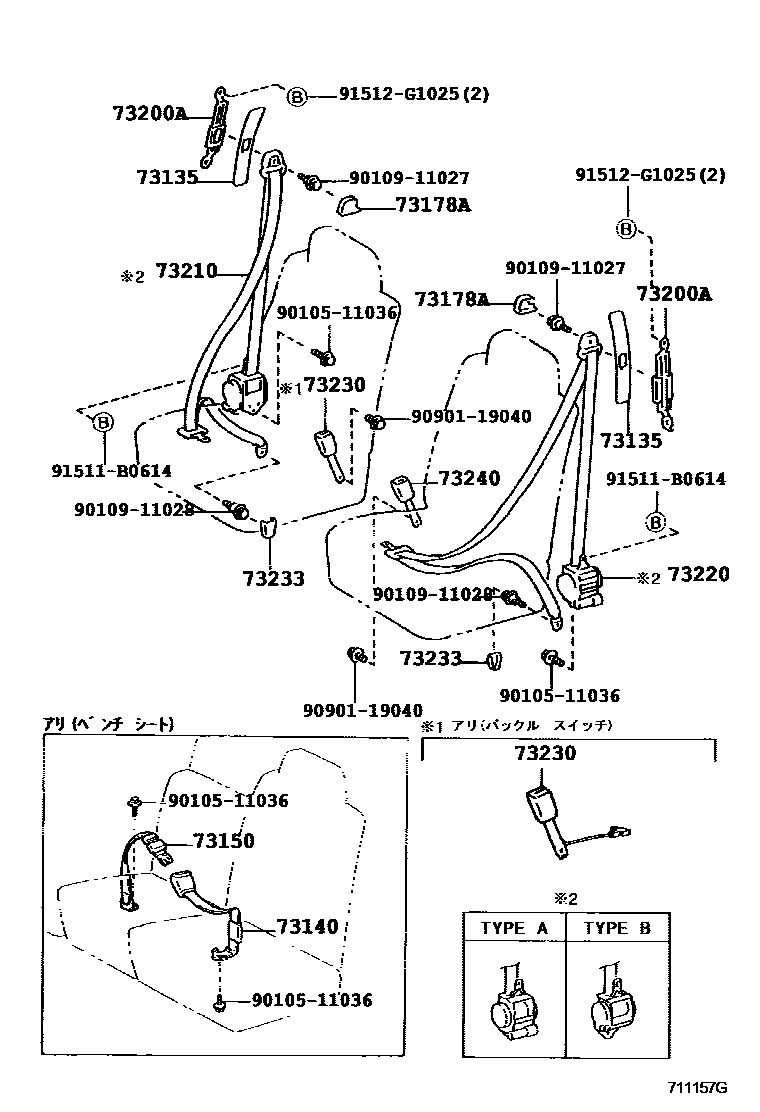

SEAT BELT & CHILD RESTRAINT SEAT

0001 1�����-����� 0002 1���-�����

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-30030-A0iAZV50,SV5#,ZZV50199806-200208

IVORY,TRIM0#

sub73135-30030

main73135-30030-B2iAZV5#,SV5#,ZZV50200004

LT.GRAY,TRIM1#

sub73135-30030

main73135-30030-G1iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

sub73135-30030

73140BELT ASSY, FRONT SEAT LAP TYPE, LH

main73140-32040-A0iZZV50..A180,A180S,N180,N180L199908-200208

sub73140-32040

main73140-32040-A0iAZV5#..A200,N200,N200L200108-200208

IVORY,TRIM0#

sub73140-32040

main73140-32040-B2iSV5#,ZZV50..A180S,A200S200004-200009

SHADOW GRAY,TRIM1#

sub73140-32040

main73140-32040-B2iSV5#,ZZV50..A180S,A200S200004-200009

sub73140-32040

main73140-32040-C0iAZV5#..A200,A200S,N200,N200L200108

BLACK,TRIM1#

sub73140-32040

main73140-32040-C0iSV5#,ZZV50..A180,A180S,A200,A200S,N180,N180L,N200,N200L200009

sub73140-32040

main73140-32040-G0iSV5#,ZZV50199908-200004

sub73140-32040

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73130-32030-A0iSV55,ZZV50..A180,A200,N180,N180L,N200,N200L200108-200208

IVORY,TRIM0#

sub73130-32030

main73130-32030-A0iAZV5#..A200,N200,N200L199908-200208

sub73130-32030

main73130-32030-B2iSV5#,ZZV50..A180S,A200S200004-200009

SHADOW GRAY,TRIM1#

sub73130-32030

main73130-32030-B2iSV5#,ZZV50..A180S,A200S200004-200009

sub73130-32030

main73130-32030-C0iAZV5#..A200,A200S,N200,N200L200108

BLACK,TRIM1#

sub73130-32030

main73130-32030-C0iSV5#,ZZV50..A180,A180S,A200,A200S,N180,N180L,N200,N200L200009

sub73130-32030

main73130-32030-G0iSV5#,ZZV50199908-200004

sub73130-32030

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33010-A1iSV5#,ZZV50199806-200004

IVORY,TRIM0#

sub73178-33010

main73178-33010-G2iSV5#,ZZV50199806-200004

AGATE,TRIM6#

sub73178-33010

main73178-33020-A1iAZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L200004-200208

IVORY,TRIM0#

sub73178-33020

main73178-33020-B3iSV5#,ZZV50200004-200009

LT.GRAY,TRIM1#

sub73178-33020

main73178-33020-B6iAZV5#,SV5#,ZZV50200009-200205

LT.GRAY,TRIM1#

sub73178-33020

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-21010-A0iAZV5#,ZZV50199806-200208

IVORY,TRIM0#

main73200-21010-B2iAZV5#,SV5#,ZZV50200004

LT.GRAY,TRIM1#

main73200-21010-G0iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-32380-A1iSV5#,ZZV50199806-200004

IVORY,TRIM0#

sub73210-32380

main73210-32380-G1iSV5#,ZZV50199806-200004

DK.AGATE,TRIM6#

sub73210-32380

main73210-32390-A1iSV5#199806-200004

sub73210-32390

main73210-32390-G1iSV5#199806-200004

sub73210-32390

main73210-32400-A1iSV5#199806-200004

sub73210-32400

main73210-32400-G1iSV5#199806-200004

sub73210-32400

main73210-32420-A1iSV5#..A200G,N200G200004-200006

IVORY,TRIM0#

main73210-32420-C2iSV5#..A200G,N200G200004-200006

BLACK,TRIM1#

main73210-32430-A1iSV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200004-200006

main73210-32430-C4iSV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200004-200006

main73210-32440-A0iSV5#..A200G,N200G200006-200009

IVORY,TRIM0#

sub73210-32440

main73210-32440-A1iSV5#..A200G,N200G200009-200108

IVORY,TRIM0#

sub73210-32440

main73210-32440-C0iSV5#..A200G,N200G200006-200009

BLACK,TRIM1#

sub73210-32440

main73210-32440-C1iSV5#..A200G,N200G200009-200108

BLACK,TRIM1#

sub73210-32440

main73210-32450-A0iSV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200006-200009

sub73210-32450

sub73210-13230

main73210-32450-A1iSV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200009-200108

IVORY,TRIM0#

sub73210-32450

sub73210-13230

main73210-32450-C0iSV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200006-200009

sub73210-32450

sub73210-13230

main73210-32450-C1iSV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200009-200108

BLACK,TRIM1#

sub73210-32450

sub73210-13230

main73210-63011-A0iAZV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200108-200208

IVORY,TRIM0#

sub73210-63011

main73210-63011-C2iAZV5#,SV55,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200108-200205

BLACK,TRIM1#

sub73210-63011

main73210-63021-A0iAZV5#,SV55..A200G,N200G200108

IVORY,TRIM0#

sub73210-63021

sub73210-63040

main73210-63021-C1iAZV5#,SV55..A200G,N200G200108-200205

BLACK,TRIM1#

sub73210-63021

sub73210-63040

main73210-63021-C4iAZV5#..A200G,N200G200205

BLACK,TRIM1#

sub73210-63021

sub73210-63040

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-32370-A1iSV5#,ZZV50199806-200004

IVORY,TRIM0#

sub73220-32370

main73220-32370-G1iSV5#,ZZV50199806-200004

DK.AGATE,TRIM6#

sub73220-32370

main73220-32390-A0iSV5#,ZZV50200004-200006

main73220-32390-C0iSV5#,ZZV50200004-200006

main73220-63010-A0iSV5#,ZZV50200006-200009

sub73220-63010

main73220-63010-A1iAZV5#,ZZV50200012-200208

IVORY,TRIM0#

sub73220-63010

main73220-63010-A1iSV5#,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L200009-200012

sub73220-63010

main73220-63010-C1iZZV50200009-200205

BLACK,TRIM1#

sub73220-63010

main73220-63010-C1iAZV5#,SV5#200009-200205

sub73220-63010

main73220-63010-C2iSV5#,ZZV50200006-200009

sub73220-63010

main73220-63010-C4iAZV5#,ZZV50200205

BLACK,TRIM1#

sub73220-63010

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-32280-A0iSV5#,ZZV50199806-200004

IVORY,TRIM0#

sub73230-32280

main73230-32280-G1iSV5#,ZZV50199806-200004

AGATE,TRIM6#

sub73230-32280

main73230-32290-A0iSV5#199806-200004

sub73230-32290

main73230-32290-B2iAZV5#,SV5#..A200G,N200G200004

sub73230-32290

main73230-32290-G1iSV5#199806-200004

sub73230-32290

main73230-32300-A0iAZV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200004-200208

sub73230-32300

main73230-32300-B0iAZV5#,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200004

sub73230-32300

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-A1iAZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L199806-200208

IVORY,TRIM0#

sub73233-33010

main73233-33010-C0iAZV5#,SV5#,ZZV50200004

BLACK,TRIM1#

sub73233-33010

main73233-33010-G2iSV5#,ZZV50199806-200004

AGATE,TRIM6#

sub73233-33010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-32280-A0iSV5#,ZZV50199806-200004

IVORY,TRIM0#

sub73230-32280

main73230-32280-G1iSV5#,ZZV50199806-200004

AGATE,TRIM6#

sub73230-32280

main73240-32110-A0iSV5#,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L200004-200208

IVORY,TRIM0#

sub73240-32110

main73240-32110-B0iAZV5#,SV5#,ZZV50200004

DK.GRAY,TRIM1#

sub73240-32110

main73240-32130-A0iAZV5#,ZZV50..A180,A180S,A200,A200S,N180,N180L,N200,N200L200004-200208

sub73240-32130

main73240-32130-B0iAZV5#,SV5#,ZZV50..A180,A180S,A200,A200S,N180,N180L,N200,N200L200004

sub73240-32130

main73380-48010-A0iSV5#,ZZV50199908-200004

sub73380-48010

main73380-48010-G0iSV5#,ZZV50199908-200004

sub73380-48010

9010511036

main90105-11036

9010911027

main90109-11027

9010911028

main90109-11028

9090119040

main90901-19040

91511B0614

main91511-B0614

91512G1025

main91512-G1025

16 parts on this diagram · 2 diagrams in section
