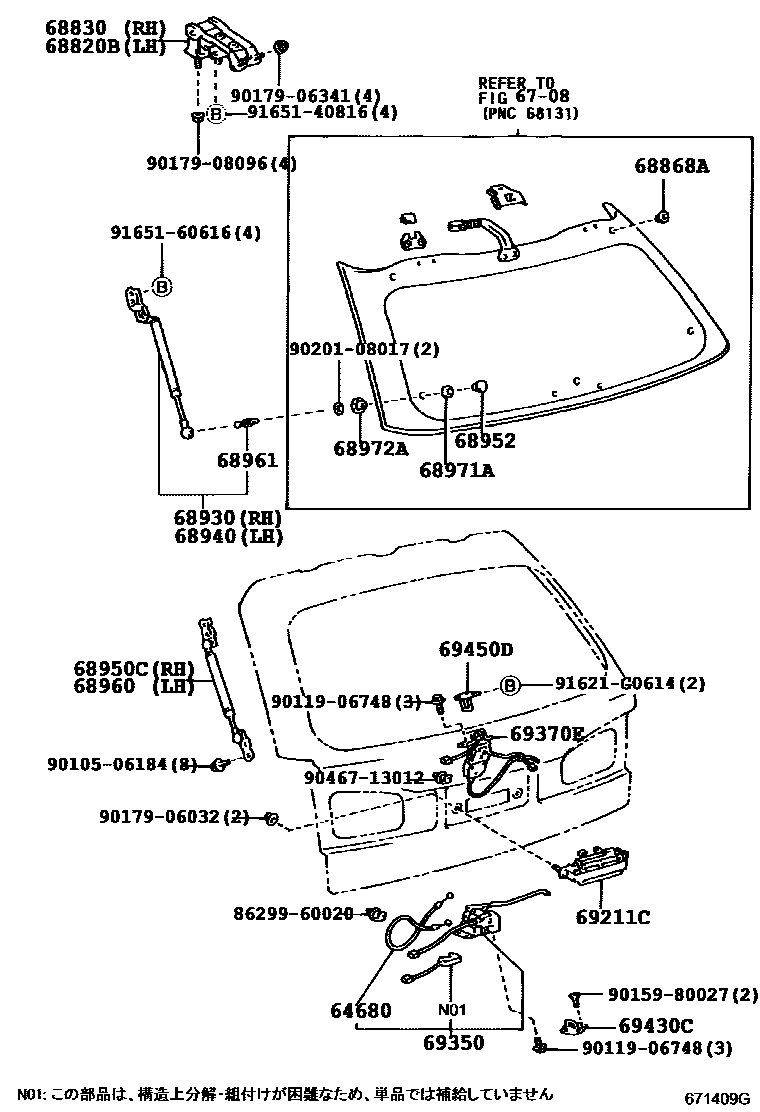

BACK DOOR LOCK & HANDLE
64680CABLE ASSY, BACK DOOR LOCK CONTROL
6708
68820BHINGE ASSY, BACK DOOR, LH
68830HINGE ASSY, BACK DOOR, RH
68868ASEAL, BACK DOOR HINGE
68930STAY ASSY, BACK WINDOW, RH
68940STAY ASSY, BACK WINDOW, LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
68971APACKING, BACK DOOR STAY, NO.1
68972APACKING, BACK DOOR STAY, NO.2
69350LOCK ASSY, BACK DOOR
69370ELOCK ASSY, BACK WINDOW
69430CSTRIKER ASSY, BACK DOOR LOCK
69450DSTRIKER ASSY, BACK WINDOW LOCK
8629960020PAD, SPEAKER
main86299-60020
9010506184
main90105-06184
9011906748
main90119-06748
9015980027
main90159-80027
9017906032
main90179-06032
9017906341
main90179-06341
9017908096
main90179-08096
9020108017
main90201-08017
9046713012
main90467-13012
91621G0614
main91621-G0614
9165140816
main91651-40816
9165160616
main91651-60616
30 parts on this diagram · 1 diagram in section
