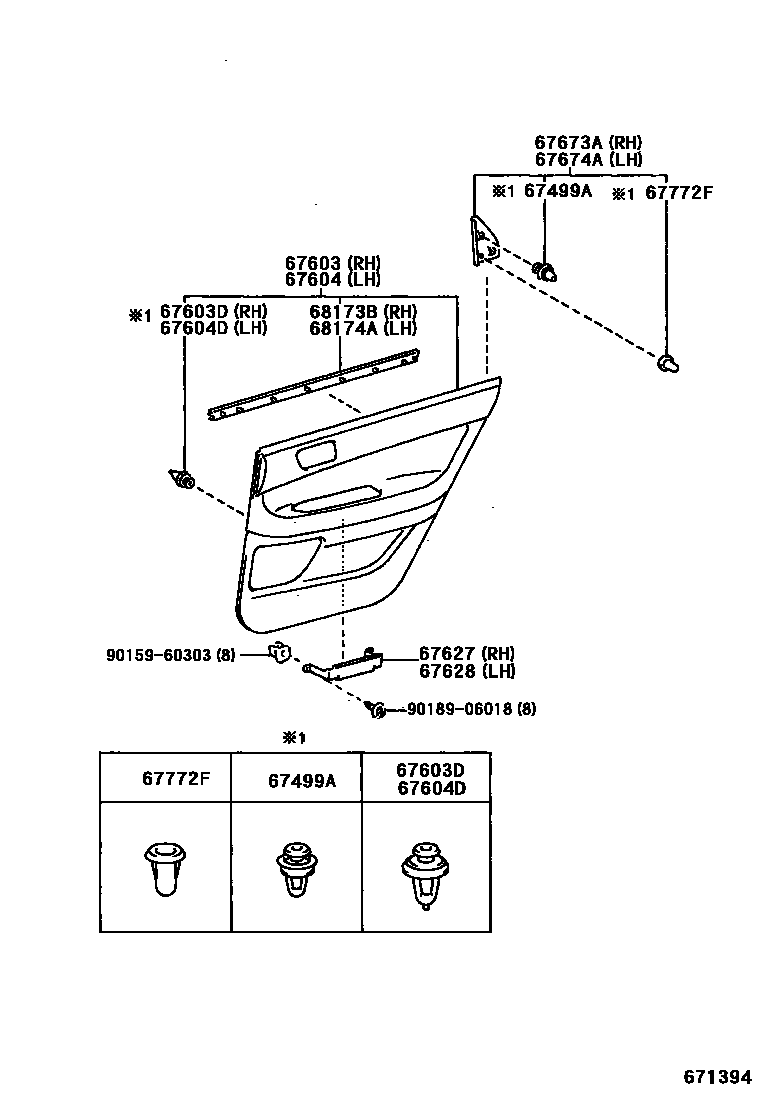

REAR DOOR PANEL & GLASS

0001 1 0002 1

67499ARETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH

main67771-30070iAZV5#,SV5#,ZZV50199806

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-3H390-A0iSV5#,ZZV50199806-200004

main67630-3H390-G0iSV5#,ZZV50199806-200004

main67630-3H400-A0iSV5#,ZZV50199806-200004

main67630-3H400-G0iSV5#,ZZV50199806-200004

main67630-3H410-A0iSV5#199806-200004

main67630-3H410-A1iAZV5#,SV5#,ZZV50..A200G,N180L,N200G,N200L200004

main67630-3H410-B0iAZV5#,SV5#,ZZV50..A200G,N180L,N200G,N200L200004

main67630-3H410-G0iSV5#199806-200004

main67630-3H420-B1iAZV5#,SV5#,ZZV50..A180S,A200S200004

main67630-3H430-A0iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E200004-200208

main67630-3H430-B0iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E200004

main67630-3H440-A0iAZV50,ZZV50..N180,N200200012-200112

main67630-3H440-A0iSV5#,ZZV50..A180S,A200S,N180L,N200L200004-200112

main67630-3H440-A0iSV55..N200200108-200112

main67630-3H440-A0iAZV55,SV55,ZZV50..N180E,N200E200112-200208

main67630-3H440-B0iAZV5#,SV55,ZZV50..A180S,A200S200112-200208

67603DRETAINER, REAR DOOR TRIM, RH

main67771-28020iSV5#,ZZV50199806-199807

main67771-28020iSV5#,ZZV50199807-200108

main67771-32120iAZV5#,SV5#,ZZV50199807

main90467-09206iAZV5#,SV55,ZZV50200108

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-3H390-A0iSV5#,ZZV50199806-200004

main67640-3H390-G0iSV5#,ZZV50199806-200004

main67640-3H400-A0iSV5#,ZZV50199806-200004

main67640-3H400-G0iSV5#,ZZV50199806-200004

main67640-3H410-A0iSV5#199806-200004

main67640-3H410-A1iAZV5#,SV5#,ZZV50..A200G,N180L,N200G,N200L200004

main67640-3H410-B0iAZV5#,SV5#,ZZV50..A200G,N180L,N200G,N200L200004

main67640-3H410-G0iSV5#199806-200004

main67640-3H420-B1iAZV5#,SV5#,ZZV50..A180S,A200S200004

main67640-3H430-A0iAZV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N200,N200E200004-200208

main67640-3H430-B0iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E200004

main67640-3H440-A0iAZV55,SV55,ZZV50..N180E,N200E200112-200208

main67640-3H440-A0iSV5#,ZZV50..A180S,A200S,N180L,N200L200004-200112

main67640-3H440-A0iSV5#,ZZV50..N180,N200200012-200112

main67640-3H440-A0iSV55..N200200108-200112

main67640-3H440-B0iAZV5#,SV55,ZZV50..A180S,A200S200112-200208

67604DRETAINER, REAR DOOR TRIM, LH

main67771-28020iSV5#,ZZV50199806-199807

main67771-28020iSV5#,ZZV50199807-200108

main67771-32120iAZV5#,SV5#,ZZV50199807

main90467-09206iAZV5#,SV55,ZZV50200108

67627BRACKET, REAR DOOR TRIM, RH

main67643-32030iAZV5#,SV5#,ZZV50199806

67628BRACKET, REAR DOOR TRIM, LH

main67644-32020iAZV5#,SV5#,ZZV50199806

67673AGARNISH, REAR DOOR FRAME, RH

main67673-32020iAZV5#,SV5#,ZZV50199806

67674AGARNISH, REAR DOOR FRAME, LH

main67674-32020iAZV5#,SV5#,ZZV50199806

67772FCAP, REAR DOOR TRIM RETAINER

main67772-95J03iAZV5#,SV5#,ZZV50199806

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-32020iAZV5#,SV5#,ZZV50199806

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-32010iAZV5#,SV5#,ZZV50199806

9015960303

main90159-60303

9018906018

main90189-06018

14 parts on this diagram · 2 diagrams in section
