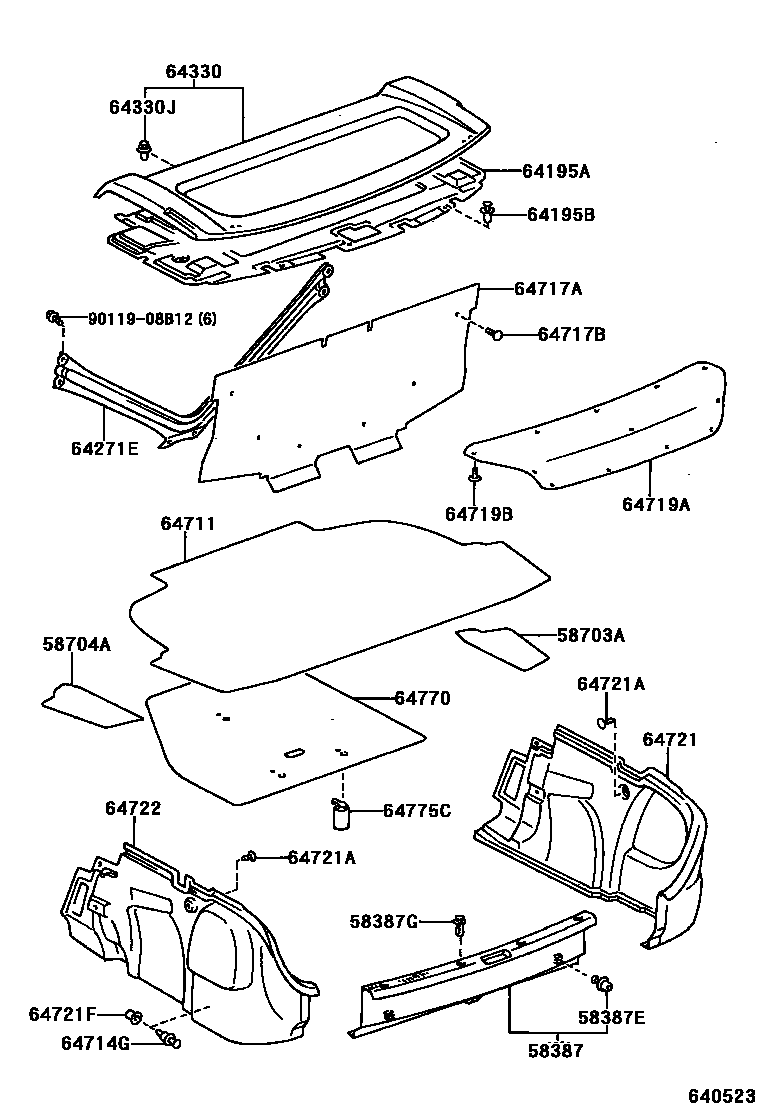

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,6#
BLACK,TRIM0#,1#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64195AINSULATOR, ROOM PARTITION PANEL
64195BCLIP(FOR ROOM PARTITION PANEL INSULATOR)
64271BOARD, ROOM PARTITION, NO.1
64271EPANEL, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM0#
STONE,TRIM1#
MIST GREEN,TRIM6#
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,6#
BLACK,TRIM0#,1#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,6#
BLACK,TRIM0#,1#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,6#
BLACK,TRIM0#,1#
64721FCAP, DOOR TRIM RETAINER
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,6#
BLACK,TRIM0#,1#
64770COVER ASSY, SPARE WHEEL
64775CSUPPORT, SPARE WHEEL COVER
9011908B12
main90119-08B12
24 parts on this diagram · 2 diagrams in section
