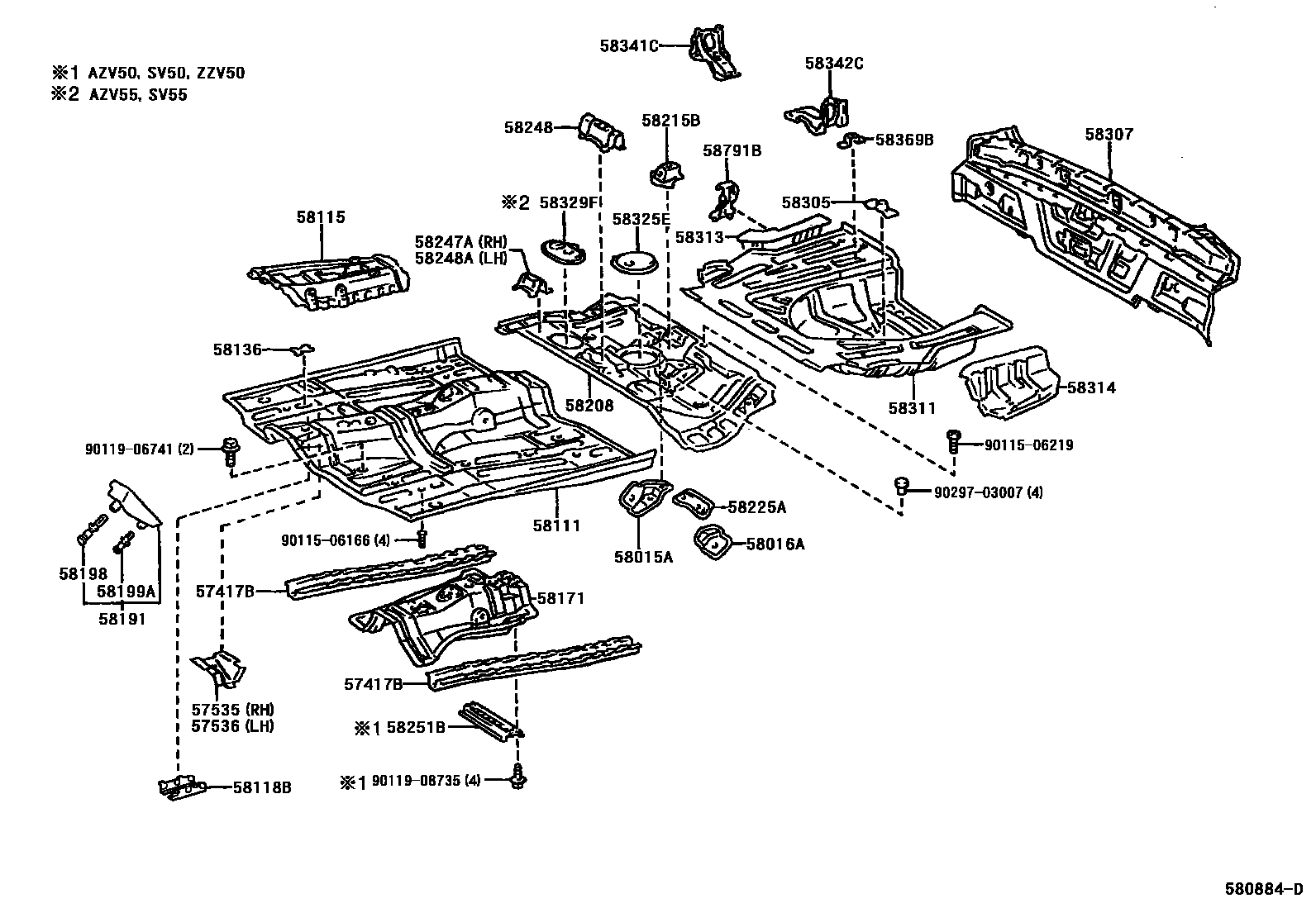

FLOOR PAN & LOWER BACK PANEL
57417BREINFORCEMENT, FRONT FLOOR UNDER
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58136COVER, FRONT FLOOR HOLE
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58208PAN, CENTER FLOOR
sub58211-32191
sub58211-32201
sub58211-32211
sub58211-32221
sub58211-32231
sub58211-32241
58215BBRACKET, REAR SEAT MOUNTING, RH
58225ABRACKET, CENTER MOUNTING
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248REINFORCEMENT, REAR SEAT CUSHION LOCK
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58369BBRACKET, FUEL TUBE, NO.3
58791BCARRIER, JACK
9011506166
main90115-06166
9011506219
main90115-06219
9011906741
main90119-06741
9011908735
main90119-08735
9029703007
main90297-03007
36 parts on this diagram · 3 diagrams in section
