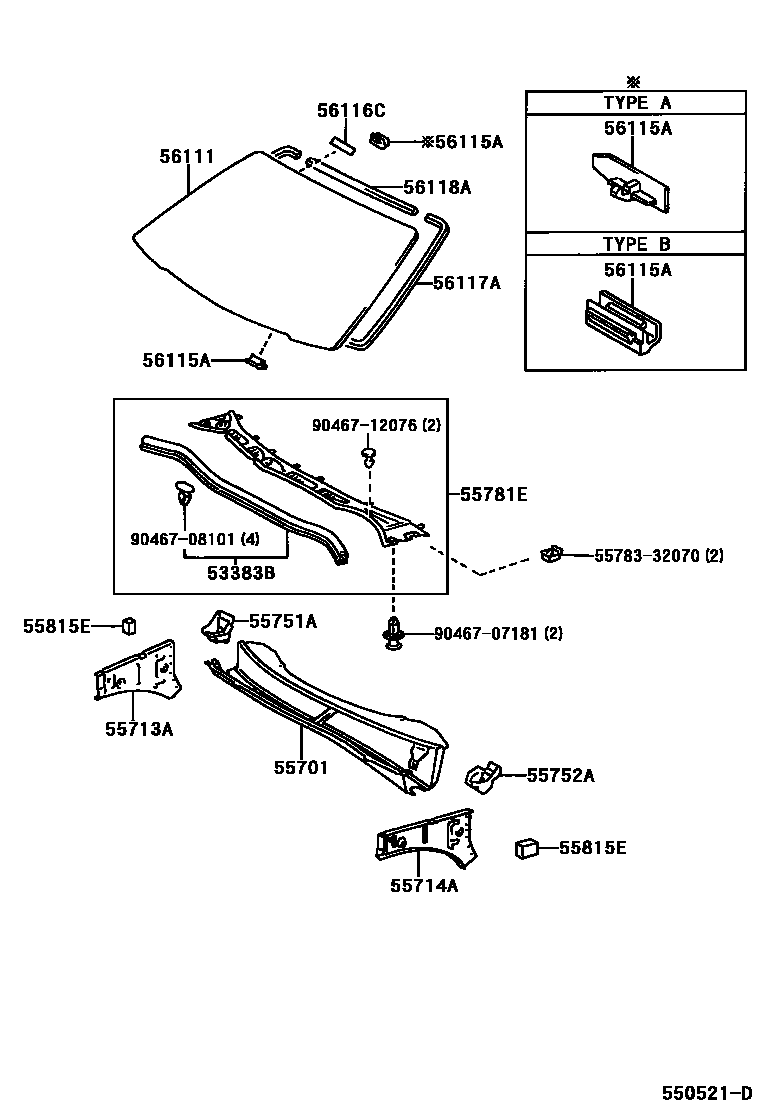

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-32050iAZV5#,SV5#,ZZV50199806

55701PANEL SUB-ASSY, COWL

main55700-32380iAZV5#,SV5#,ZZV50199806

55713APANEL, COWL TOP SIDE, RH

main55713-32050iAZV5#,SV5#,ZZV50199806

55714APANEL, COWL TOP SIDE, LH

main55714-32050iAZV5#,SV5#,ZZV50199806

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-32020iAZV5#,SV5#,ZZV50199806

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55752-32010iAZV5#,SV5#,ZZV50199806

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-32010iAZV5#,SV5#,ZZV50199806

main55708-32020iAZV5#,SV5#,ZZV50199806

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-32040iAZV5#,SV5#,ZZV50199806

main55816-32030iAZV5#,SV5#,ZZV50199806

56111GLASS, WINDSHIELD

main56111-32490iAZV5#,SV5#,ZZV50199806

main56111-32540iAZV5#,SV5#,ZZV50199806

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iAZV5#,SV5#,ZZV50199806

main56115-32020iAZV5#,SV5#,ZZV50199806

main56115-33040iSV5#,ZZV50199806-200004

sub56115-30100

sub56116-22050

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAZV5#,SV5#,ZZV50199806

56117ADAM, WINDOW GLASS ADHESIVE

main56117-47010iAZV5#,SV5#,ZZV50199806

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-32040iAZV5#,SV5#,ZZV50199806

sub56117-52040

5578332070PROTECTOR, COWL TOP VENTILATOR LOUVER, LH

main55783-32070

9046707181

main90467-07181

9046708101

main90467-08101

9046712076

main90467-12076

17 parts on this diagram · 1 diagram in section
