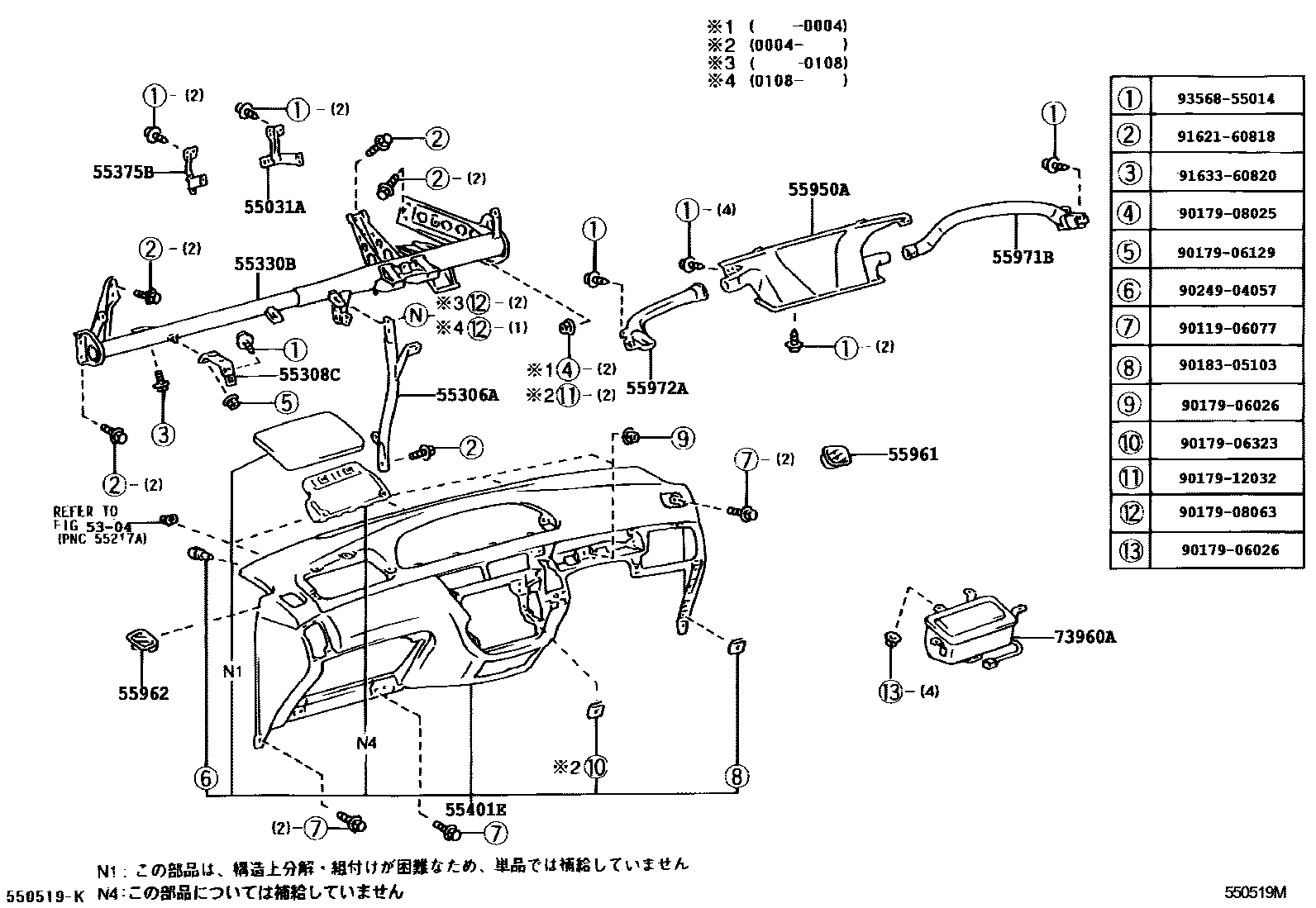

INSTRUMENT PANEL & GLOVE COMPARTMENT
5304
55031ASTAY SUB-ASSY, INSTRUMENT PANEL, NO.1
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
IVORY,TRIM0#
MIST GREEN,TRIM6#
IVORY,TRIM0#
STONE,TRIM1#
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
main55961-32090-E0iAZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L200004-200208
SANDAL WOOD,TRIM0#
sub55961-32090
55962NOZZLE, SIDE DEFROSTER, NO.2
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
9011906077
main90119-06077
9017906026
main90179-06026
9017906129
main90179-06129
9017906323
main90179-06323
9017908025
main90179-08025
9017908063
main90179-08063
9017912032
main90179-12032
9018305103
main90183-05103
9024904057
main90249-04057
9162160818
main91621-60818
9163360820
main91633-60820
9356855014
main93568-55014
25 parts on this diagram · 2 diagrams in section
