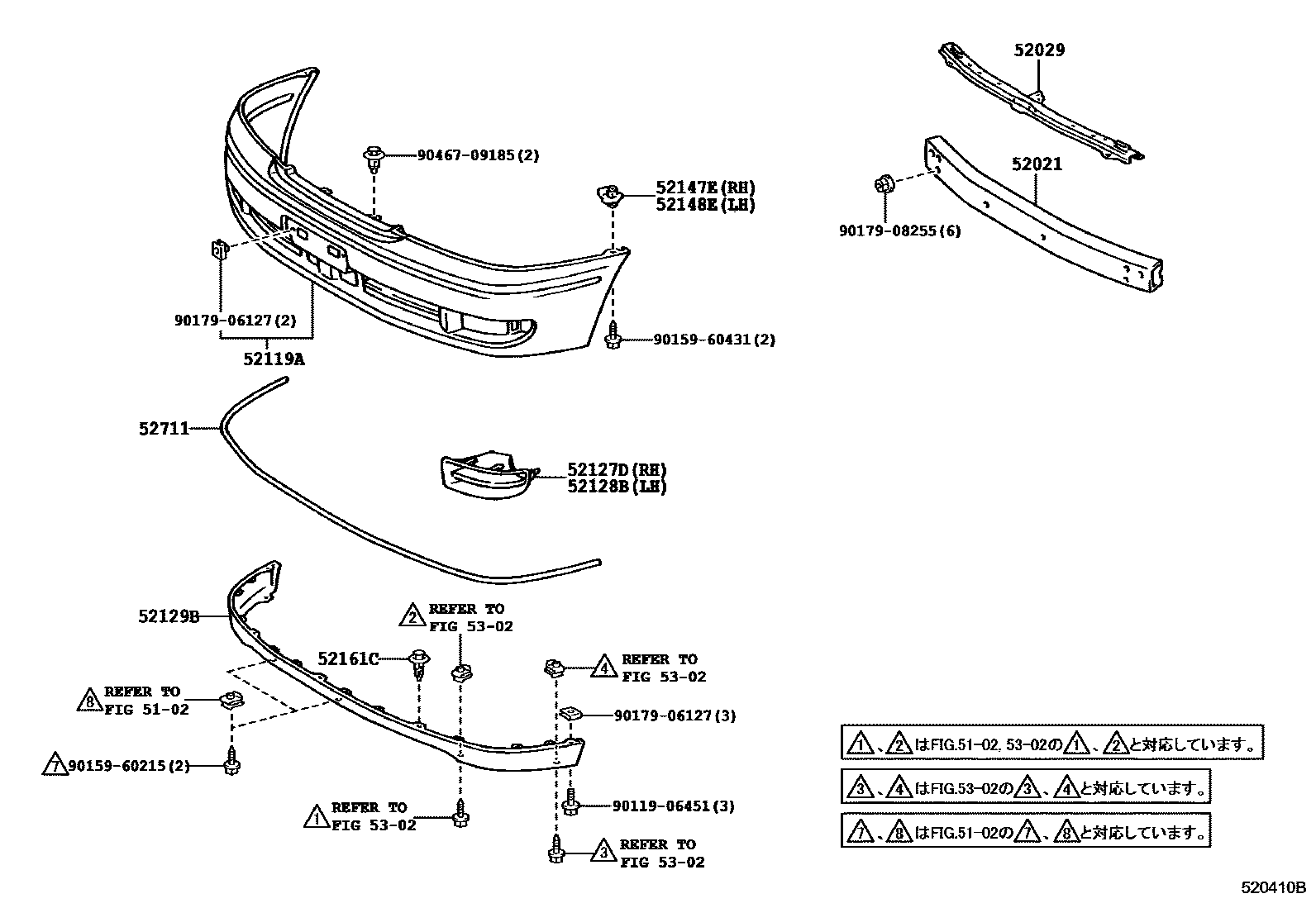

FRONT BUMPER & BUMPER STAY
5102
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52127DCOVER, FRONT BUMPER HOLE, RH
main52127-32060iAZV5#,SV55,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200004-200112
52128BCOVER, FRONT BUMPER HOLE, LH
main52128-32060iAZV5#,SV55,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200004-200112
52129BCOVER, FRONT BUMPER, LOWER
sub52129-32900
sub52129-32900
sub52129-32900
sub52129-32900
sub52129-32900
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52161CPIECE, FRONT BUMPER
5302
9011906451
main90119-06451
9015960215
main90159-60215
9015960431
main90159-60431
9017906127
main90179-06127
9017908255
main90179-08255
9046709185
main90467-09185
18 parts on this diagram · 2 diagrams in section
