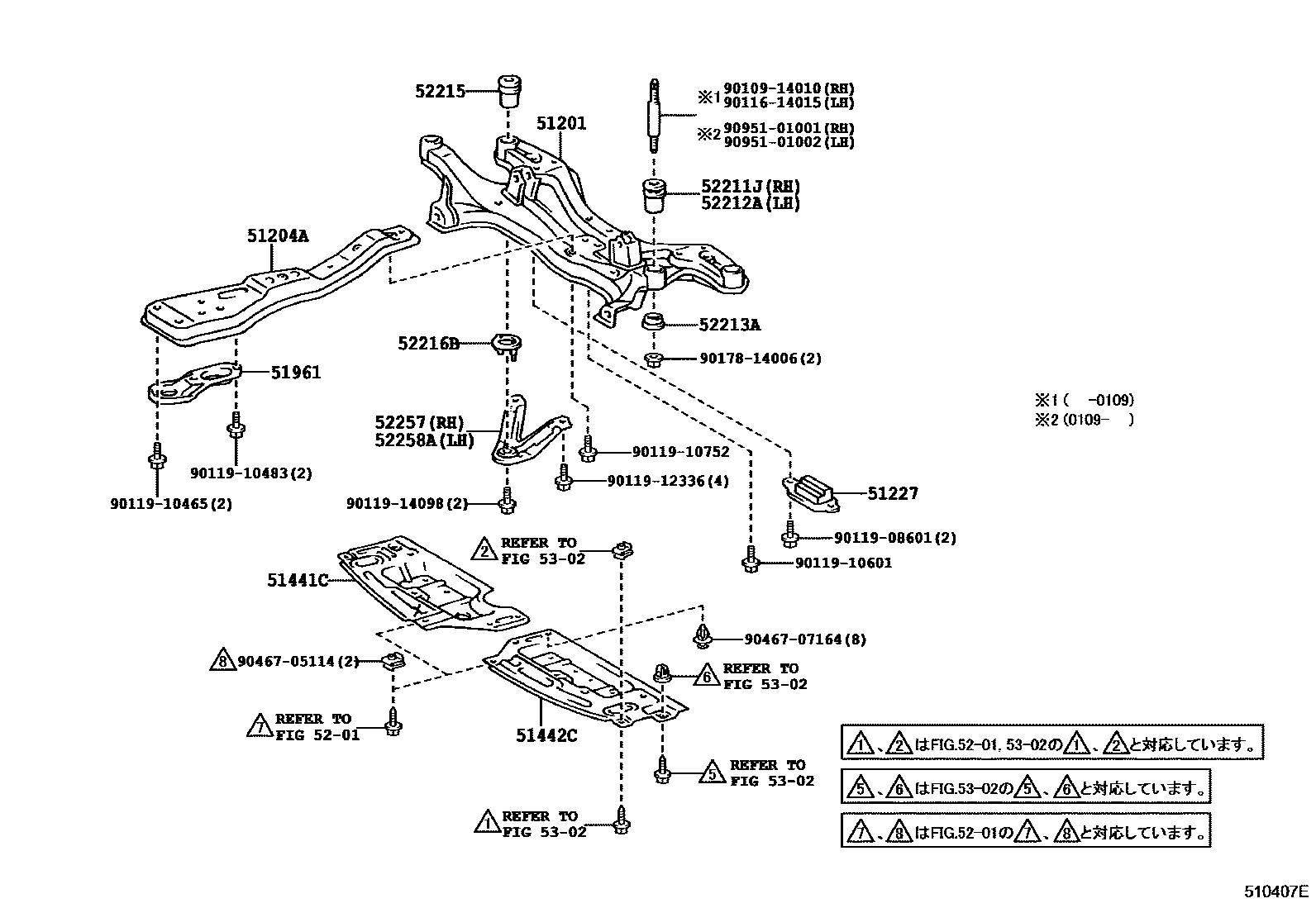

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-32050iAZV50,SV50,ZZV50¥68,200199806-200303

sub51201-32051¥68,300

main51201-32051iAZV50,ZZV50¥68,300200303

main51201-32060iAZV55,SV55¥70,600199806-200303

sub51201-32061¥70,800

main51201-32061iAZV55¥70,800200303

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32050iSV50,ZZV50¥21,300199806-200001

sub51204-32070¥21,200

main51204-32060iSV55¥17,700199806-200204

main51204-32070iAZV50,SV50,ZZV50¥21,200200001

main51204-44020iAZV55¥12,200200204

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-32060iZZV50¥5,800199806

main51227-63010iAZV50¥780200108

main51228-32030iSV50¥790199806-200108

51441CCOVER, ENGINE UNDER, RH

main51441-32070iAZV5#,SV5#,ZZV50¥2,760199806

51442CCOVER, ENGINE UNDER, LH

main51442-32110iAZV5#,SV5#,ZZV50¥2,120199806

51961HOOK, NO.1

main51963-32040iAZV5#,SV5#,ZZV50¥1,450199806

5201

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-32010iSV5#,ZZV50¥4,360199806-200004

main52211-32020iAZV5#,SV5#,ZZV50¥4,110200004

52212ACUSHION, BODY MOUNTING, NO.2

main52212-32010iSV5#,ZZV50¥4,360199806-200004

main52212-32020iAZV50,SV5#,ZZV50¥3,720200004-200109

main52212-32021iAZV5#,SV55,ZZV50¥3,720200109

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-32010iAZV5#,SV5#,ZZV50¥710199806

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-32010iSV5#,ZZV50¥2,940199806-200004

main52215-32020iAZV5#,SV5#,ZZV50¥2,940200004

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-32010iSV5#,ZZV50¥350199806-200004

main52216-32020iAZV5#,SV5#,ZZV50¥370200004

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-32010iAZV5#,SV5#,ZZV50¥2,110199806

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-32010iAZV5#,SV5#,ZZV50¥2,110199806

5302

9010914010

main90109-14010¥590

9011614015

main90116-14015¥780

9011908601

main90119-08601¥160

9011910465

main90119-10465¥120

9011910483

main90119-10483¥120

9011910601

main90119-10601¥90

9011910752

main90119-10752¥310

9011912336

main90119-12336¥210

9011914098

main90119-14098¥400

9017814006

main90178-14006¥160

9046705114

main90467-05114¥200

9046707164

main90467-07164¥120

9095101001

main90951-01001¥470

9095101002

main90951-01002¥470

29 parts on this diagram · 2 diagrams in section
