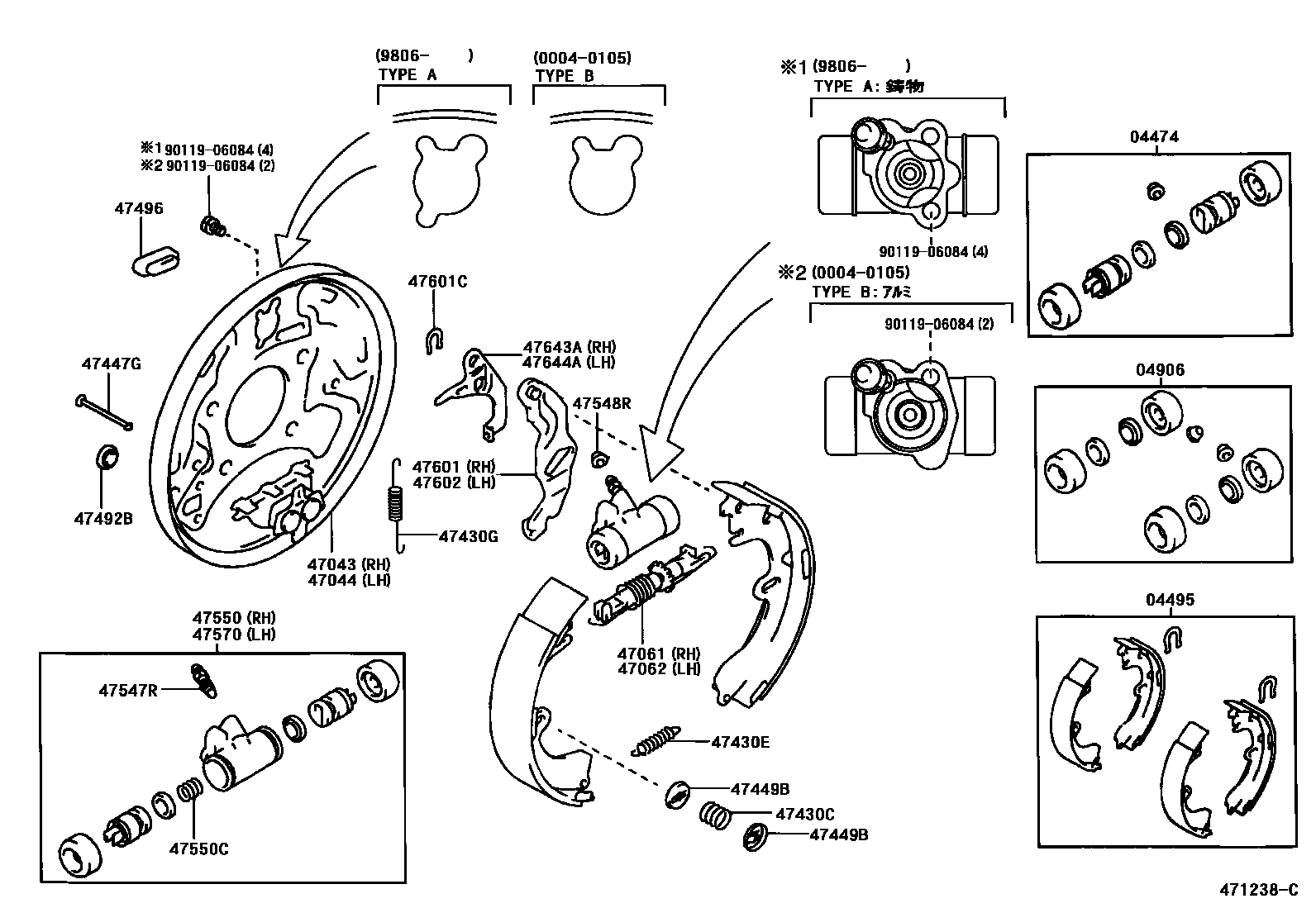

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-10032iZZV50¥1,880199806-200004

sub04474-63020¥1,880

main04474-52020iZZV50¥1,730200004-200105

main04474-63020iZZV50¥1,880200004-200105

main04474-63020iZZV50¥1,880200105

04495SHOE KIT, REAR BRAKE

main04495-47010iZZV50¥6,400199806-200105

main04495-52020iZZV50¥6,500200105

sub04495-52040¥6,500

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iZZV50¥870199806-200004

main04906-52020iZZV50¥1,110200004

sub04906-10021¥870

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20140iZZV50¥4,050200004-200105

main47043-47010iZZV50¥4,050200004-200105

main47043-47010iZZV50¥4,050199806-200004

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20140iZZV50¥4,050200004-200105

main47044-47010iZZV50¥4,050199806-200004

main47044-47010iZZV50¥4,050200004-200105

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-47010iZZV50¥1,360199806

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-47010iZZV50¥1,360199806

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20147iZZV50¥80199806

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-14073iZZV50¥80199806

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-14072iZZV50¥170199806

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-11010iZZV50¥170199806

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iZZV50¥190199806

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iZZV50¥130199806

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iZZV50¥140199806

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iZZV50¥200199806

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iZZV50¥160199806

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20150iZZV50¥4,960199806-200004

main47550-20150iZZV50¥4,960200004-200105

main47550-20211iZZV50¥3,130200004-200105

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014iZZV50¥190200103

main90501-07006iZZV50¥200199806-200103

sub90029-60014¥190

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20060iZZV50¥4,960199806-200004

main47570-20060iZZV50¥4,960200004-200105

main47570-20101iZZV50¥3,130200004-200105

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iZZV50¥700199806

sub47601-52100¥580

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iZZV50¥110199806

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iZZV50¥700199806

sub47602-52100¥580

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iZZV50¥200199806

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iZZV50¥200199806

9011906084

main90119-06084¥100
